Pick up to 4tractors and we'll lay every spec sheet out side by side. Same data we publish on the individual model pages, stacked in columns so you can compare numbers at a glance.
No photo
—
CaseIHFARMALL75A
No photo
—
CaseIHFARMALL70A

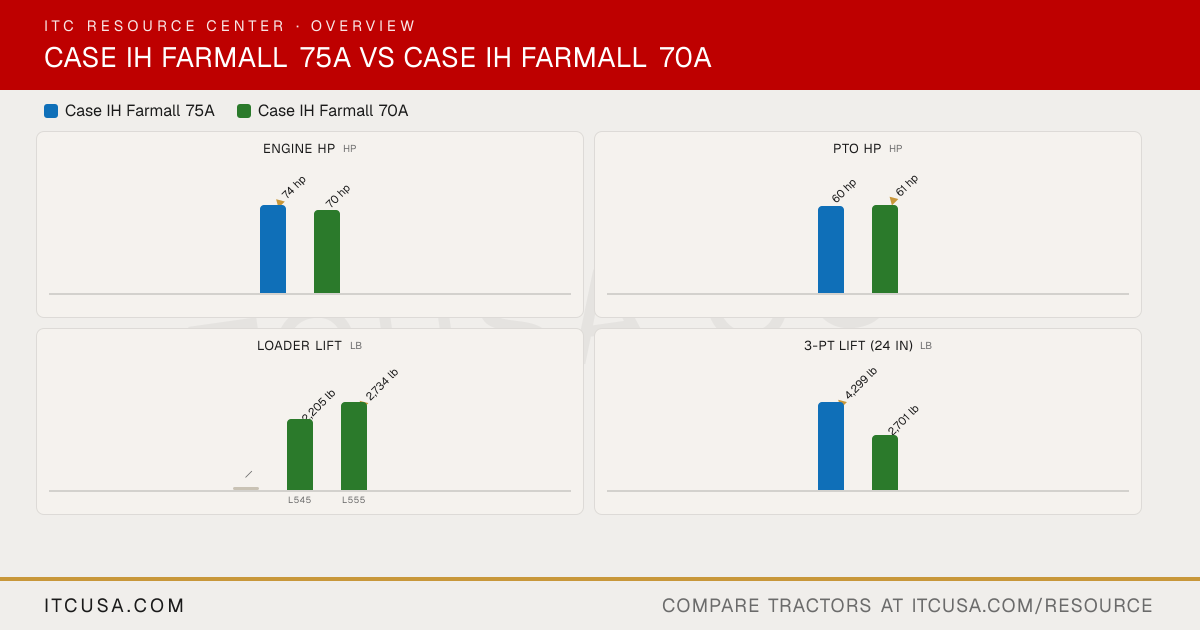

Comparison loaded for 2 tractors.
Spec
Case IHFARMALL 75A
Case IHFARMALL 70A
PTO Power
60 hp
61 hp
Alternator
Not Published
Not Published
Air Cleaner
Not Published
Not Published
Engine Type
Diesel, turbocharged
Diesel, turbocharged & aftercooled (intercooled)
Fuel System
Not Published
Not Published
Displacement
2.9 L
134.2 in³ (2,200 cc)
No. of Cylinders
3
3
Rated Engine Speed
2,300 rpm
2,600 rpm
Cooling System Type
Not Published
Not Published
Engine Manufacturer
FPT Industrial
FPT Industrial
Engine Emissions Constraints
Tier 4 B/Final
Tier 4 B/Final
Engine Power (Gross vs. Net HP)
74 hp
70 hp
Tractor Weight with Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Applicable
Weight with ROPS and Loader
Not Published
Not Published
Pump Type
Not Published
Not Published
Steering Flow
Not Published
Not Published
Implement Flow
47.7 L/min (12.6 gpm)
45 L/min (11.9 gpm)
Total Hydraulic Flow
Not Published
Not Published
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
Not Published
Not Published
No. of Optional Remote Valves
3
2
No. of Standard Remote Valves
2
1
R3 Turf - Rear
Not Published
Not Published
R3 Turf - Front
Not Published
Not Published
Tire Size & Options
Not Published
Not Published
R4 Industrial - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
Not Published
R1 Agricultural - Rear
Not Published
Not Published
R1 Agricultural - Front
Not Published
Not Published
PTO Rear
540 / 540/540E
540 / 540E
PTO Type
Not Published
Independent
Lift Control Type
Mechanical Draft Control (MDC) top link sensing
Mechanical draft control (MDC) top link sensing
Hitch Lift Capacity
Not Published
Not Published
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category 1/2
Category I/II
Hitch Lift Capacity (at 24”)
4,299 lb (1,950 kg) (standard); 4,740 lb (2,150 kg) (optional) @ 24 in behind pin
2,701 lb (1,225 kg)
Rear 3-Point Hitch Lift Capacity
Not Published
Not Published
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Fuel Tank Capacity
21.7 gal (82 L)
17.2 gal (65 L)
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Loader Lift Height
Not Published
L545: 106 in (2,680 mm); L555: 105 in (2,670 mm)
Loader Breakout Force
Not Published
L545: up to 3,131 lb (1,420 kg); L555: up to 3,527 lb (1,600 kg)
Price for Backhoe Option
Not Published
Not Published
Price for Mid-Mount Mower
Not Published
Not Published
Quick Attach Loader System
Not Published
Not Published
Loader Lift Capacity (Full Height)
Not Published
L545: up to 2,205 lb (1,000 kg); L555: up to 2,734 lb (1,240 kg)
Clutch
Dry clutch (8x8 mechanical shuttle); wet clutch (12x12 power shuttle)
Dry clutch
No. of Speeds
Not Published
8F/8R
Transmission Type
8x8 mechanical shuttle (dry clutch) (standard); 12x12 power shuttle (wet clutch) or 12x12 with creeper (optional)
