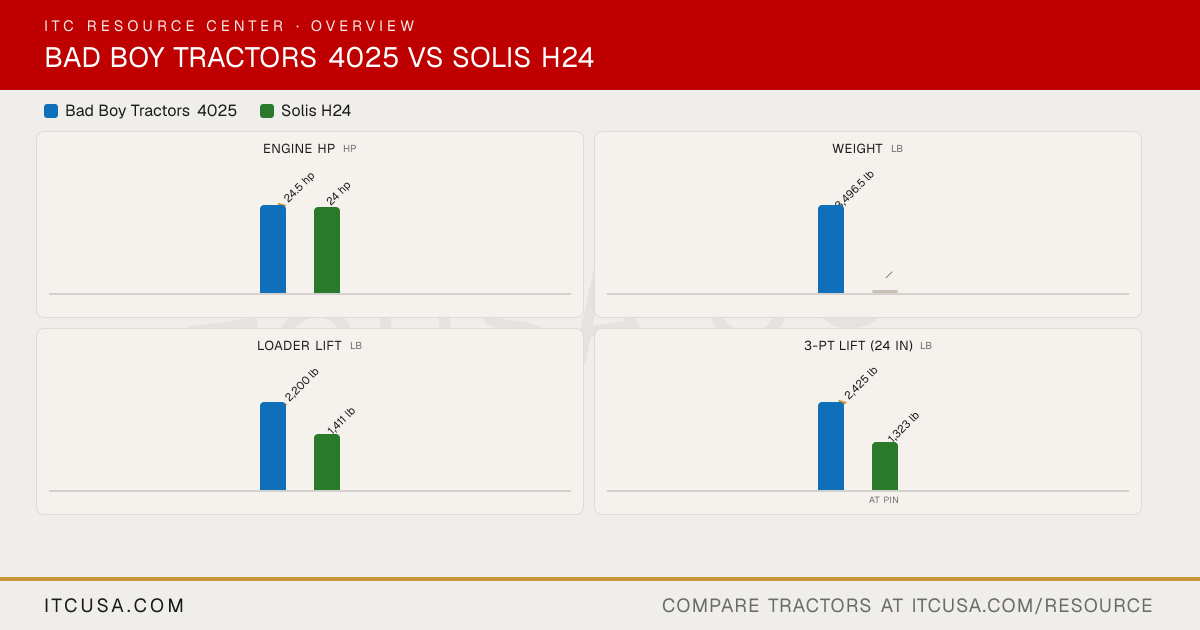

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Bad Boy Tractors4025
SolisH24
PTO Power
540 rpm, 1st stage
Not Published
Alternator
50 A, 12 V
alternator
Air Cleaner
Present (standard equipment)
NOT FOUND — air cleaner type not explicitly listed in any source reviewed.
Engine Type
Vertical, water cooled 4-cycle, diesel engine
diesel
Fuel System
Diesel fuel system with fuel injection pump
Direct Injection
Displacement
104.6 in³
79.3 in³
No. of Cylinders
3
3
Rated Engine Speed
2100 rpm
2500 rpm
Cooling System Type
Pressurized Radiator
Liquid cooled
Engine Manufacturer
A1700N6, A1700N5, A1700N4
Mitsubishi
Engine Power (Gross)
24.5 hp
24 hp
Engine Emissions Constraints
Not Published
NOT FOUND — no emissions tier/standard (e.g. EPA Tier 4, EU Stage V) explicitly stated for the H24 in any source reviewed.
Engine Model
—
Mitsubishi S3L2
Tractor Weight (Base)
3,496.5 lb (3,497 lbs), 3,728 lb (3,728 lbs)
—
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Applicable
Warranty Length & Coverage
6-year powertrain warranty
3 Year or 2,000 Hour Bumper-to-Bumper Tractor Warranty; 7 Year or 3,000 Hour Limited Powertrain Tractor Warranty; 1 Year Implement/Attachment Warranty (such as Solis loaders)
Pump Type
Gear type (primary 0.8 in³/rev, secondary 0.4 in³/rev)
NOT FOUND
Steering Flow
4.0 gpm
NOT FOUND — no source explicitly lists this value
Implement Flow
7.5 gpm
3.98 gpm 15.1 lpm
Total Hydraulic Flow
11.5 gpm (4.0 + 7.5)
3.98 gpm
Hydraulic System Type
Not Published
open center
System Operating Pressure
463 lbf/cm² maximum
—
Rear Remote Hydraulic Flow
Not Published
NOT FOUND — no source explicitly lists this value
Overall Hydraulic Pump Flow
11.5 gpm
3.98 gpm 15.1 lpm
No. of Optional Remote Valves
Optional (Up to 2)
NOT FOUND — no source explicitly lists this value
No. of Standard Remote Valves
Not Published
NOT FOUND — no source explicitly lists this value
PTO Rear
540 rpm
540 (1.375)
PTO Type
Independent
independent
Lift Control Type
Position control type
NOT FOUND — no source explicitly states lift control type (e.g., position control, draft control, or float) for the Solis H24
Hitch Lift Capacity
2,425 lb @ 24 in behind lift point
1323 lbs
Mid-PTO Availability
Not Published
Optional
Category, 3-Point Hitch
Category 1
I
Hitch Lift Capacity (at 24”)
2,425 lb @ 24 in behind lift point
Not Published
R3 Turf - Rear
Not Published
33x15.5-16.5; 13.6x16
R3 Turf - Front
Not Published
23x8.50-12; 25x8.50-14
Tire Size & Options
OEM website lists IND tires 25X8.50-14 / 15-19.5; Operator Manual spec based on 8.0-16 / 12.4-24
R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear
15-19.5
33x15.5-16.5
R4 Industrial - Front
25X8.50-14
23x8.50-12
R1 Agricultural - Rear
12.4-24 6PR
8.3-20
R1 Agricultural - Front
8.0-16 4PR
6-12
Coolant Capacity
5.0 ℓ (1.32 u.s. gal)
Not Published
Crankcase Capacity
4.3 ℓ (1.14 u.s. gal)
Not Published
Fuel Tank Capacity
27 ℓ (7.13 u.s. gal)
7 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
HST: 9.77 gal
Not Published
Loader Lift Height
104 in
85 in
Loader Breakout Force
3,660 lb
1,146 lbs
Quick Attach Loader System
SSQA
SSQA (Skid Steer Quick Attach)
Loader Lift Capacity (Full Height)
2,200 lb (pivot pin)
1,411 lbs
Loader Model
—
Solis 3200
Clutch
None (HST)
electro-hydraulic wet disc
No. of Speeds
3 Range
Infinite (HST - 2 Range); continuous variable forward and reverse via twin touch pedals
Transmission Type
HST (Hydrostatic Transmission) with shuttle type
hydrostatic
Max Travel Speed (Forward)
Not Published
Up to 14 mph
Max Travel Speed (Reverse)
Not Published
Up to 14 mph
Differential Lock & Limited Slip Options
Differential lock
mechanical rear
Brakes
Wet, Multi-Disc
Mechanical wet disc brakes
Steering
Hydrostatic power steering
Power steering
Frame Type
Not Published
Not Published
Front Axle Type
Not Published
Four-wheel drive
Drawbar Capacity
Not Published
Not Published
Front Axle Rating
Not Published
Not Published
Seat Suspension & Adjustability
Not Published
Not Published
Wheelbase
65.8 in (65.79 in.)
61.8 inches 61.4 in
Overall Width
57.1 in (57.13 in.) [ROPS Model], 55.6 in (55.63 in.) [Cabin Model]
47.38 in.
Overall Length
134.9 in (134.88 in.)
—
Ground Clearance
13.2 in (13.19 in.) [ROPS Model], 13.5 in (13.50 in.) [Cabin Model]
9.44 in.
Height to Top of ROPS
104.1 in (104.06 in.) [ROPS Model], 88.9 in (88.9 in.) [Cabin Model]
