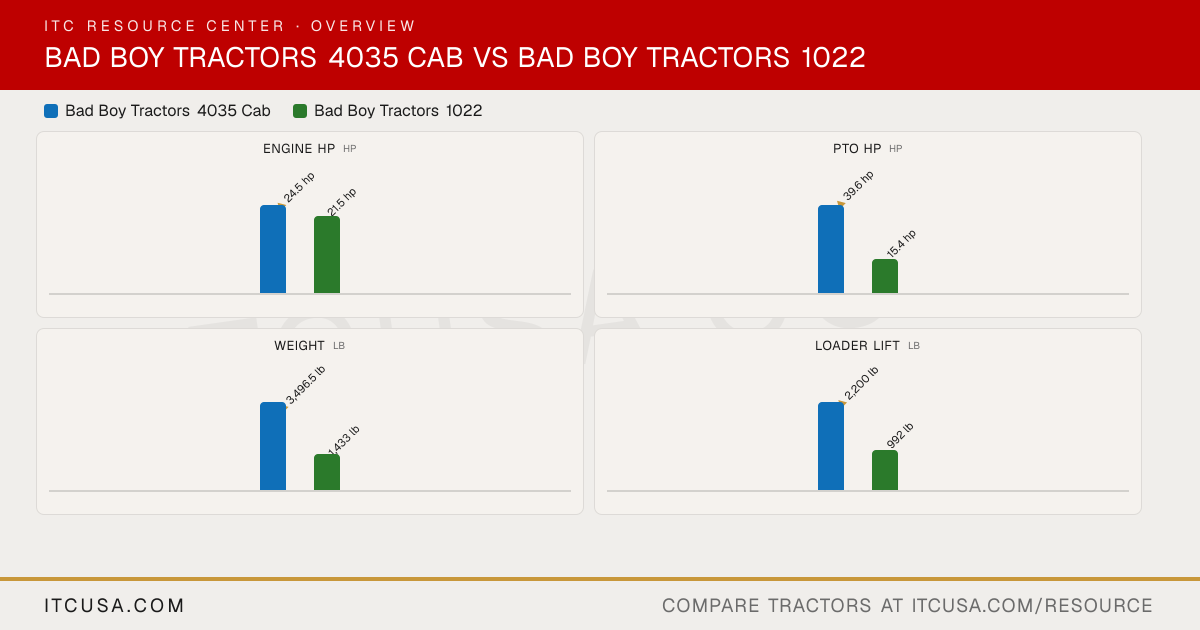

▶ EnginePTO Power 39.6 hp 15.4 hp Alternator 50 A, 12 V 40 A, 12 V Air Cleaner Not Published Single Dry Engine Type Vertical, water cooled 4-cycle, diesel engine Natural Aspiration Fuel System Diesel fuel Diesel Displacement 104.6 in³ 60.6 (993) No. of Cylinders 3 3 Rated Engine Speed 2100 rpm 3,200 Cooling System Type Pressurized Radiator Water cooled Engine Manufacturer Not specified in source Yanmar Engine Power (Gross) 24.5 hp 21.5 hp Engine Emissions Constraints Not Published Tier 4 ▶ WeightTractor Weight (Base) 4025H: 3,496.5 lb (3,497 lbs), ROPS: 3,496.5 lb (3,497 lbs), Cabin: 3,728 lb (3,728 lbs) 1,433 (650) Weight with ROPS and Loader Not Applicable 1,433 lb Weight with Cab and Loader 3,551 lb (tractor only) Not Published ▶ WarrantyWarranty Length & Coverage 6-year powertrain warranty 7-year powertrain warranty ▶ HydraulicsPump Type Not Published Single Gear Pump with Flow Divider Steering Flow 4.4 gpm 2.11 gpm Implement Flow 8.2 gpm 4.17 (15.8) Total Hydraulic Flow 12.6 gpm (4.4+8.2) 6.97 (26.4) Hydraulic System Type Not Published Not Published System Operating Pressure 396.8 lbf/cm² (control valve), 286.6 lbf/cm² (PST valve relief) — Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 12.6 gpm 6.97 gpm (max total flow) No. of Optional Remote Valves Optional (Up to 2) Up to 1 No. of Standard Remote Valves Not Published Not Published ▶ PTO & HitchPTO Rear 540 rpm 540 rpm PTO Type Independent Independent Lift Control Type Position control Position Hitch Lift Capacity 3,306.9 lb 1,100 lb Mid-PTO Availability Not Published Optional (2,500 rpm) Category, 3-Point Hitch Cat 1 Category I (N) Hitch Lift Capacity (at 24”) 2,425 lb 679 lb ▶ Tire OptionsR3 Turf - Rear Not Published TURF R 16X12.00-12 R3 Turf - Front Not Published TURF F 16X7.50-8 Tire Size & Options R1 (manual): 7-16 / 11.2-24; R4 (website): 28X8.50-15 / 43X16.00-20 R1 (BAR) / R3 (TURF) / R4 (IND) R4 Industrial - Rear 43X16.00-20 26X12-12 R4 Industrial - Front 28X8.50-15 18X8.50-10 R1 Agricultural - Rear 11.2-24 8PR BAR R 24X12.00-12 R1 Agricultural - Front 7-16 6PR BAR F 16X7.50-9 ▶ Fluid CapacityCoolant Capacity 5.0 ℓ (1.32 u.s. gal) 0.9 gal Crankcase Capacity 4.3 ℓ (1.14 u.s. gal) 0.48 gal Fuel Tank Capacity 27 ℓ (7.13 u.s. gal) 6.6 gal Front Axle Fluid Capacity Not Published 2.6 qt Transmission / Hydraulic System Capacity HST: 9.77 gal 3.6 gal ▶ Loader & AttachmentsLoader Lift Height 104 in 72.7 in (under level bucket); 78.5 in (pivot pin) Loader Breakout Force 3,660 lb 1,531 lb (at pivot pin, ground level) Quick Attach Loader System SSQA SSQA Loader Lift Capacity (Full Height) 2,200 lb (at pivot pin) 992 lb (at pivot pin) ▶ Transmission & DrivetrainClutch None (HST) Dry single plate No. of Speeds 3 Range 2 Range Transmission Type HST (Hydrostatic Transmission) with range shift Hydrostatic transmission (HST) Max Travel Speed (Forward) 18.21 mph (range C) 7.8 mph Max Travel Speed (Reverse) 18.21 mph Not Published Differential Lock & Limited Slip Options Differential lock Mechanical rear differential lock ▶ Chassis, Steering & ControlsBrakes Wet multi-disc Wet disc Steering Fully hydraulic power steering Hydrostatic Frame Type Not Published Sub-compact tractor, 4WD Front Axle Type Not Published Center pin front axle Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Standard adjustable seat ▶ Dimensions & ManeuverabilityWheelbase 65.79 in 53.1 (1,350) Overall Width ROPS: 57.13 in, Cabin: 55.63 in 44.5 (1,130) Overall Length 134.88 in 94.2 (2,394) Ground Clearance ROPS: 13.19 in, Cabin: 13.50 in 8.3 in. Height to Top of ROPS ROPS: 104.06 in, Cabin: 88.9 in 86.6 (2,200) Height to Top of Cab Model 86 in Not Published Height to Top of ROPS (folded) Not Applicable Not Published Min. Turn Radius without Brakes Not Published 86.6 (2,200) Overall Length with 3-Point Hitch 134.88 in 94.2 in
