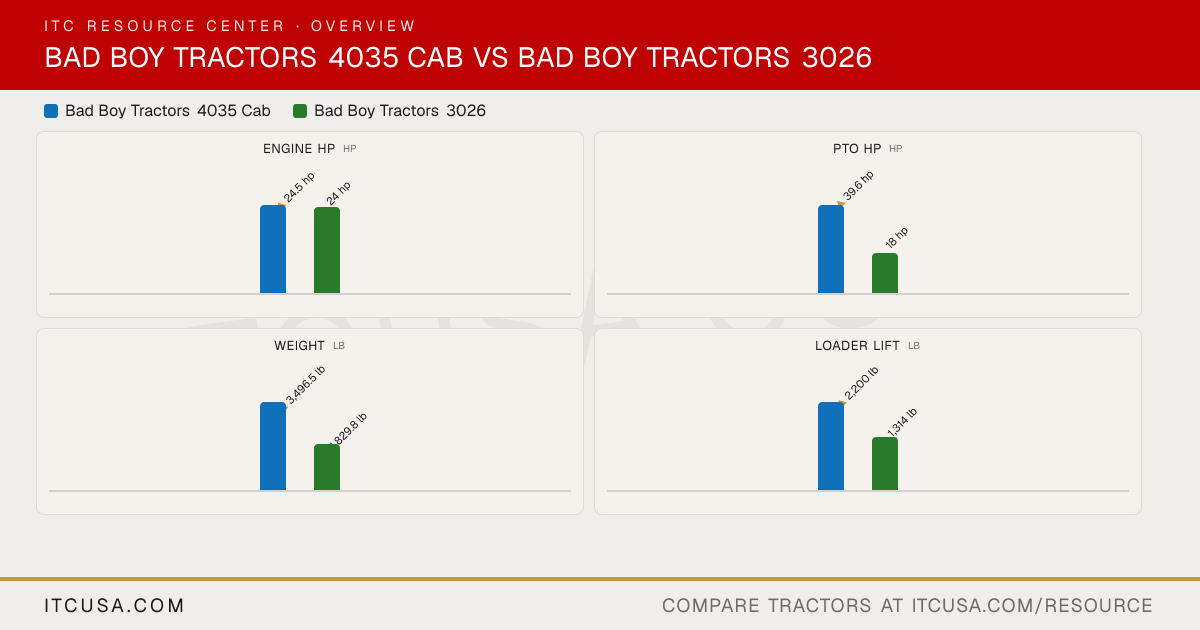

▶ EnginePTO Power 39.6 hp 18 hp Alternator 50 A, 12 V 50 A, 12 V Air Cleaner Not Published Dry, Element Engine Type Vertical, water cooled 4-cycle, diesel engine 3 CYL, Water Cooled, Diesel Fuel System Diesel fuel Diesel Displacement 104.6 in³ 71.7 in³ No. of Cylinders 3 3 Rated Engine Speed 2100 rpm 2600 rpm Cooling System Type Pressurized Radiator Water Cooled Engine Manufacturer Not specified in source TYM Engine Power (Gross) 24.5 hp 24 hp Engine Emissions Constraints Not Published Final Tier4 Engine Model — A1100N2 ▶ WeightTractor Weight (Base) 4025H: 3,496.5 lb (3,497 lbs), ROPS: 3,496.5 lb (3,497 lbs), Cabin: 3,728 lb (3,728 lbs) 1,829.8 lb (1,829 lbs) for 2024H, 2,107.6 lb (2,107 lbs) for 3026H Weight with ROPS and Loader Not Applicable Not Published Weight with Cab and Loader 3,551 lb (tractor only) 2,106 lbs - base tractor with loader, no cab option confirmed for 3026 in available sources ▶ WarrantyWarranty Length & Coverage 6-year powertrain warranty 6-year powertrain warranty ▶ HydraulicsPump Type Not Published Gear type pump with primary and secondary pumps Steering Flow 4.4 gpm 3.1 gpm Implement Flow 8.2 gpm 4.3 gpm Total Hydraulic Flow 12.6 gpm (4.4+8.2) 7.4 gpm 28.0 lpm Hydraulic System Type Not Published Power Assisted Hydro-Static System Operating Pressure 396.8 lbf/cm² (control valve), 286.6 lbf/cm² (PST valve relief) 352.7 lbf/cm² (max operating pressure) Rear Remote Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow 12.6 gpm 7.7 gal per min No. of Optional Remote Valves Optional (Up to 2) Optional (Up To 1) No. of Standard Remote Valves Not Published 0 ▶ PTO & HitchPTO Rear 540 rpm 540 / 960 rpm @ 2,600 rpm PTO Type Independent Live P.T.O. (6 Spline shaft) Lift Control Type Position control Position control Hitch Lift Capacity 3,306.9 lb 1,433 lbs Mid-PTO Availability Not Published Option: 2,500 rpm (Mid) Category, 3-Point Hitch Cat 1 Cat 1 Hitch Lift Capacity (at 24”) 2,425 lb 974 lb ▶ Tire OptionsR3 Turf - Rear Not Published Not Published R3 Turf - Front Not Published Not Published Tire Size & Options R1 (manual): 7-16 / 11.2-24; R4 (website): 28X8.50-15 / 43X16.00-20 IND (Industrial) Front: 25×8.50-14; IND Rear: 14×17.5 R4 Industrial - Rear 43X16.00-20 14X17.5 R4 Industrial - Front 28X8.50-15 25X8.50-14 R1 Agricultural - Rear 11.2-24 8PR 11.2-20 8PR R1 Agricultural - Front 7-16 6PR 7-16 6PR ▶ Fluid CapacityCoolant Capacity 5.0 ℓ (1.32 u.s. gal) 1.21 gal Crankcase Capacity 4.3 ℓ (1.14 u.s. gal) 0.79 gal Fuel Tank Capacity 27 ℓ (7.13 u.s. gal) 6.08 gal Front Axle Fluid Capacity Not Published 0.79 gal Transmission / Hydraulic System Capacity HST: 9.77 gal 2.90 gal ▶ Loader & AttachmentsLoader Lift Height 104 in 86 in. Loader Breakout Force 3,660 lb 1,960 lbs. Quick Attach Loader System SSQA SSQA Loader Lift Capacity (Full Height) 2,200 lb (at pivot pin) 1,314 lbs. ▶ Transmission & DrivetrainClutch None (HST) Dry Single Plate No. of Speeds 3 Range 3 Range Transmission Type HST (Hydrostatic Transmission) with range shift Hydrostatic (HST) Max Travel Speed (Forward) 18.21 mph (range C) 14.8 mph Max Travel Speed (Reverse) 18.21 mph 14.8 mph Differential Lock & Limited Slip Options Differential lock Differential Lock ▶ Chassis, Steering & ControlsBrakes Wet multi-disc Wet, Multi-Disc Steering Fully hydraulic power steering Hydrostatic Frame Type Not Published Steel frame with cast iron axles Front Axle Type Not Published 4 Wheel Drive Drawbar Capacity Not Published Not Published Front Axle Rating Not Published Not Published Seat Suspension & Adjustability Not Published Adjustable seat; flips up and back for rear backhoe operation ▶ Dimensions & ManeuverabilityWheelbase 65.79 in 65.7" Overall Width ROPS: 57.13 in, Cabin: 55.63 in 53.8" Overall Length 134.88 in 120.7 in for 2024H, 122.9 in for 3026H Ground Clearance ROPS: 13.19 in, Cabin: 13.50 in 16.4" Height to Top of ROPS ROPS: 104.06 in, Cabin: 88.9 in 91.4" Height to Top of Cab Model 86 in Not Applicable Height to Top of ROPS (folded) Not Applicable 91.4 in - ROPS up (no folded dimension found in available sources) Min. Turn Radius without Brakes Not Published 46° Overall Length with 3-Point Hitch 134.88 in 110 in ▶ ITC Company AccessoriesAccessories that fit None tagged yet
