Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

BadBoy5055Cab

—

BadBoy5055

Comparison loaded for 2 tractors.

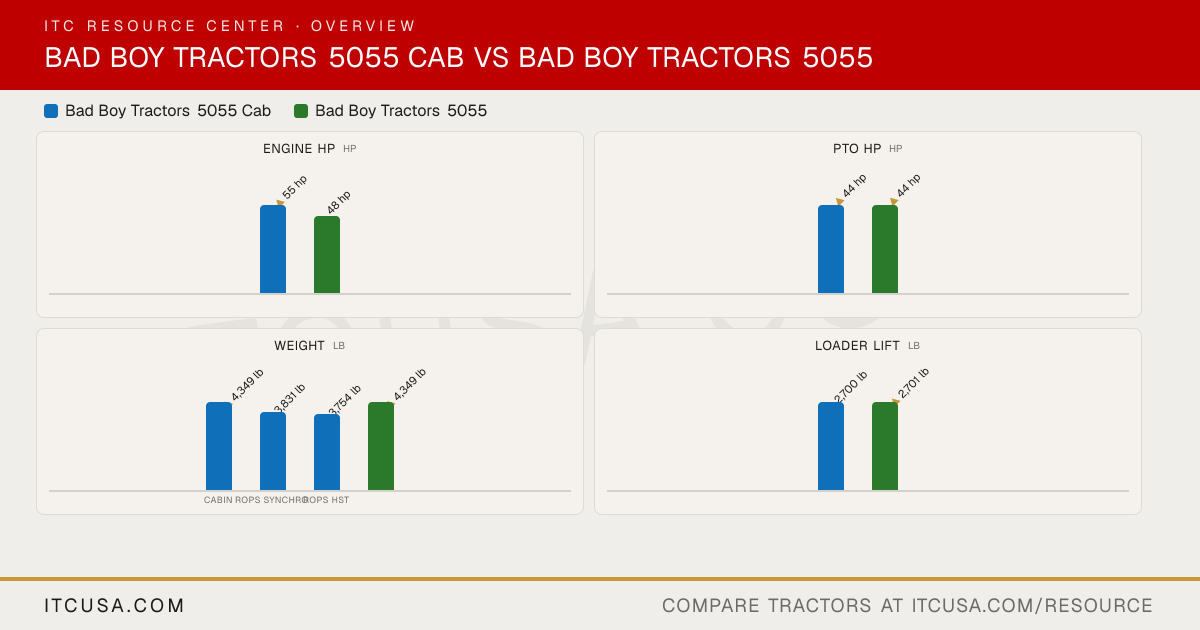

The headline numbers at a glance.

Bad Boy Tractors 5055 CabBad Boy Tractors 5055

Engine HPhp

▲55 hp

48 hp

PTO HPhp

▲44 hp

Weightlb

▲4,349 lb

3,831 lb

3,754 lb

▲4,349 lb

CABINROPS SynchroROPS HST

Loader Liftlb

2,700 lb

▲2,701 lb

3-Pt Lift (24 in)lb

▲2,425 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	Bad Boy Tractors5055 Cab	Bad Boy Tractors5055


PTO Power	44 hp	44 hp
Alternator	70 A, 12 V	70 A
Air Cleaner	Dry Element	Dry Element
Engine Type	4-cylinder, water-cooled diesel	4-cylinder, water-cooled diesel
Fuel System	Water-Cooled Diesel	Diesel
Displacement	139.5 in³	139.5 in³
Engine Model	A2300T3-UTR_4	—
No. of Cylinders	4	4
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water-Cooled	Not Published
Engine Manufacturer	A2300T11	A2300N3 (5045CS/5045CH/5045S/5045H), A2300T11 (5055CS/5055CH), A2300T3 (5055S/5055H)
Engine Power (Gross)	55 hp	48 hp
Engine Emissions Constraints	Tier 4	DPF / DOC

Tractor Weight (Base)	CABIN: 4,349 lbs; ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb); ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)	CABIN: 4,349 lbs, ROPS Synchro: 3,831-3,836 lbs (1,738-3,836 lb), ROPS HST: 3,754-3,836 lbs (1,703-3,836 lb)
Weight with ROPS and Loader	Not Applicable	3,836 lb (tractor only)
Weight with Cab and Loader	4,349 lb (tractor only)	Not Applicable

Warranty Length & Coverage	6-year powertrain warranty	6-year powertrain warranty

Pump Type	Not Published	Hydrostatic Power Steering
Steering Flow	5 GPM	5.0 gpm
Implement Flow	5055CS: 11.4 gpm; 5055CH: 10.7 gpm	5055S: 11.4 gpm; 5055H: 10.7 gpm
Total Hydraulic Flow	5055CS: 16.4 gpm; 5055CH: 15.7 gpm	5055S: 16.4 gpm; 5055H: 15.7 gpm
Hydraulic System Type	Not Published	Not Published
System Operating Pressure	Not published in source	—
Rear Remote Hydraulic Flow	Not Published	Not Published
Overall Hydraulic Pump Flow	5055CS: 16.4 gpm; 5055CH: 15.7 gpm	5055S: 16.4 gpm; 5055H: 15.7 gpm
No. of Optional Remote Valves	Not Published	Up to 2 rear SCVs
No. of Standard Remote Valves	2 Remotes	Not Published

PTO Rear	540 / 540E RPM	540 / 540E rpm
PTO Type	Independent	Independent
Lift Control Type	Position	Not Published
Hitch Lift Capacity	3,306 lb	3,306 lb
Mid-PTO Availability	Not Published	Not Published
Category, 3-Point Hitch	CAT I	Category 1
Hitch Lift Capacity (at 24”)	2,425 lb	2,425 lb

R3 Turf - Rear	Not Published	Not Published
R3 Turf - Front	Not Published	Not Published
Tire Size & Options	R1 Agricultural	Not Published
R4 Industrial - Rear	Not Published	Not Published
R4 Industrial - Front	Not Published	Not Published
R1 Agricultural - Rear	13.6 - 26	Not Published
R1 Agricultural - Front	9.5 - 16	Not Published

Coolant Capacity	1.56 gal	CABIN: 1.56 gal, ROPS: 2.08 gal
Crankcase Capacity	1.20 gal	1.20 gal
Fuel Tank Capacity	11.8 gal	11.8 gal
Front Axle Fluid Capacity	1.90 gal	1.90 gal
Transmission / Hydraulic System Capacity	10.04 gal	10.04 gal

Loader Model	BBL500	—
Loader Lift Height	106.6 in	107.7 in (pivot pin)
Loader Breakout Force	3,660 lbs.	3,660 lb
Quick Attach Loader System	SSQA	SSQA
Loader Lift Capacity (Full Height)	2,700 lbs.	2,701 lb

Clutch	Dry Single Type (N/A)	Not Published
No. of Speeds	5055CS: 16F/16R; 5055CH: 4-range	5055S: 16F/16R; 5055H: 4-range
Transmission Type	Synchromesh (MEC models) or HST (Hydrostatic)	Synchromesh (Mechanical models) or HST (Hydrostatic models)
Max Travel Speed (Forward)	19.5 mph	16.0 mph Synchro; 19.5 mph HST
Max Travel Speed (Reverse)	19.5 mph	15.2 mph Synchro; 19.5 mph HST
Differential Lock & Limited Slip Options	Differential lock	Differential lock

Brakes	Wet, Multi-disc	Wet, Multi-disc
Steering	Hydrostatic Power Steering	Power steering
Frame Type	Compact utility tractor, 4WD	Compact utility tractor, 4WD
Front Axle Type	Not Published	Selectable 4WD
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Heated leather seat	Heated leather seat

Wheelbase	71.1 in	71.1 in.
Overall Width	64.9 in	64.9 in.
Overall Length	127.4 in. with 3-point hitch	127.4 in.
Ground Clearance	15.5 in	15.5 in.
Height to Top of ROPS	5055CS/CH - 97 in	CABIN: 97.0 in., ROPS: 98.4 in.
Height to Top of Cab Model	97 in	Not Applicable
Height to Top of ROPS (folded)	Not Applicable	Not Published
Min. Turn Radius without Brakes	9.18 feet (2.80 m)	Not Published
Overall Length with 3-Point Hitch	127.4 in	127.4 in

Accessories that fit	None tagged yet	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection Branson TYM 15/20 Series--Bad Boy 40/50 Series Brush Screen $250.00
