Bobcat CT2535 vs Bobcat CT2040 | Side-by-side comparison | ITC Resource Center
Compare Tractors

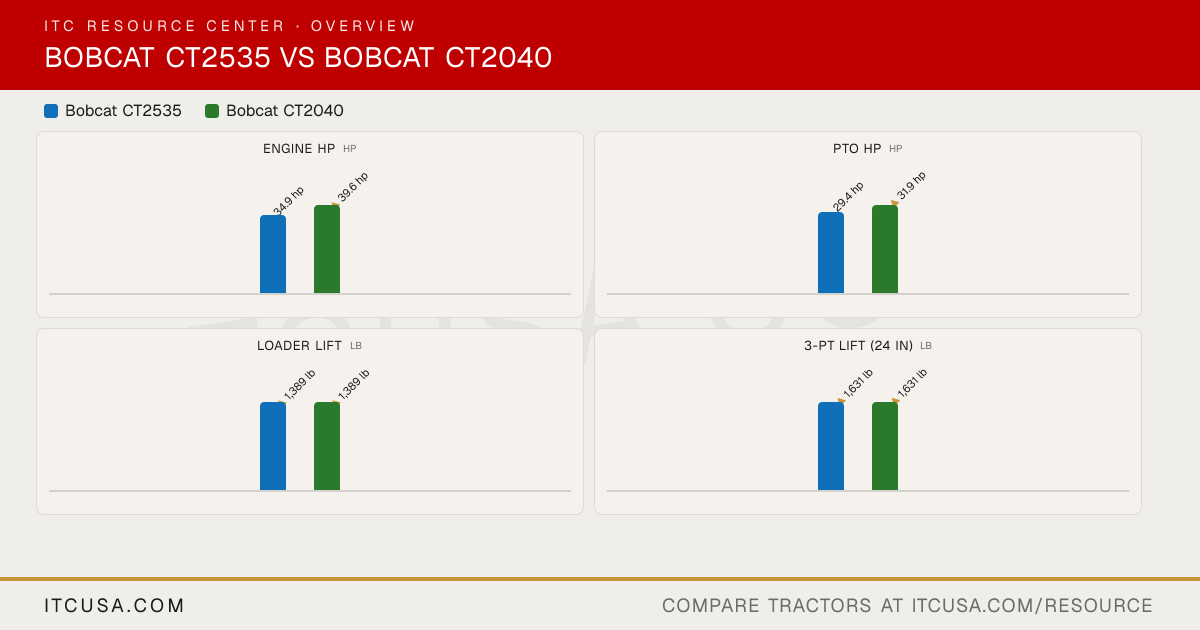

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
BobcatCT2535
BobcatCT2040
PTO Power
29.4 hp
31.9 hp
Alternator
alternator
alternator
Air Cleaner
Dry type, replaceable
NOT FOUND — no source reviewed explicitly states an air cleaner type for the CT2040
Engine Type
Diesel
Diesel
Fuel System
Common Rail Direct Injection (CRDI)
Common rail direct injection
Displacement
111.4 in³
111.4 in³
Engine Model
Daedong 0.5 gal 3-cyl diesel
Daedong 0.5 gal 3-cyl diesel
No. of Cylinders
3
3
Rated Engine Speed
2600 rpm
2600 rpm
Cooling System Type
Water cooled
liquid-cooling
Engine Manufacturer
Daedong
Daedong
Engine Power (Gross)
34.9 hp
39.6 hp
Engine Emissions Constraints
Tier 4
Stage V
Weight with ROPS and Loader
Not Applicable
Not Published
Weight with Cab and Loader
1652.00 KG
Not Applicable
Warranty Length & Coverage
24 months / 1,500 hours (whichever occurs first)
24 months or 1,500 hours (whichever occurs first)
Pump Type
NOT FOUND — no source explicitly names the pump type (e.g. gear, piston, etc.) for the CT2535. The Bobcat EU page lists 'Implement pump type · 26.00' but this appears to be a flow value (L/min), not a pump type descriptor.
Gear
Steering Flow
16.90
4.5 gpm
Implement Flow
26.00
11.7 gpm 44.3 lpm
Total Hydraulic Flow
11.4 gpm
11.4 gpm
Hydraulic System Type
NOT FOUND — no source explicitly labels a 'Hydraulic System Type' field for the CT2535. The EU Bobcat page lists 'Power steering pump (4 port)' and separate implement flow, suggesting an open-center or load-sensing split system, but no source uses that label explicitly.
Open Center
Rear Remote Hydraulic Flow
N/A
Optional
Overall Hydraulic Pump Flow
11.4 gpm
11.4 gpm
No. of Optional Remote Valves
2 Pairs
NOT FOUND
No. of Standard Remote Valves
Std. (4 port)
1/2
PTO Rear
540 rpm
540 rpm
PTO Type
Independent
Live
Lift Control Type
Hydraulic Position Control System
Hydraulic Position Control System
Hitch Lift Capacity
1631 lb.
1631 lb.
Mid-PTO Availability
Optional: 1988 rpm
Optional: 1988 rpm
Category, 3-Point Hitch
Category 1
Category 1
Hitch Lift Capacity (at 24”)
1,631 lb
1,631 lb
R3 Turf - Rear
41x14.0-20 R3
41 x 14-20/4
R3 Turf - Front
27x8.5-15 R3
28 x 8.5-15/6
Tire Size & Options
3,585 lb
Front AG. (TURF, INDUSTRIAL) 7-16 (28 x 8.5-15/6, 27X8.5-15) | Rear AG. (TURF, INDUSTRIAL) 11.2-24 (41 x 14-20/4, 15-19.5)
