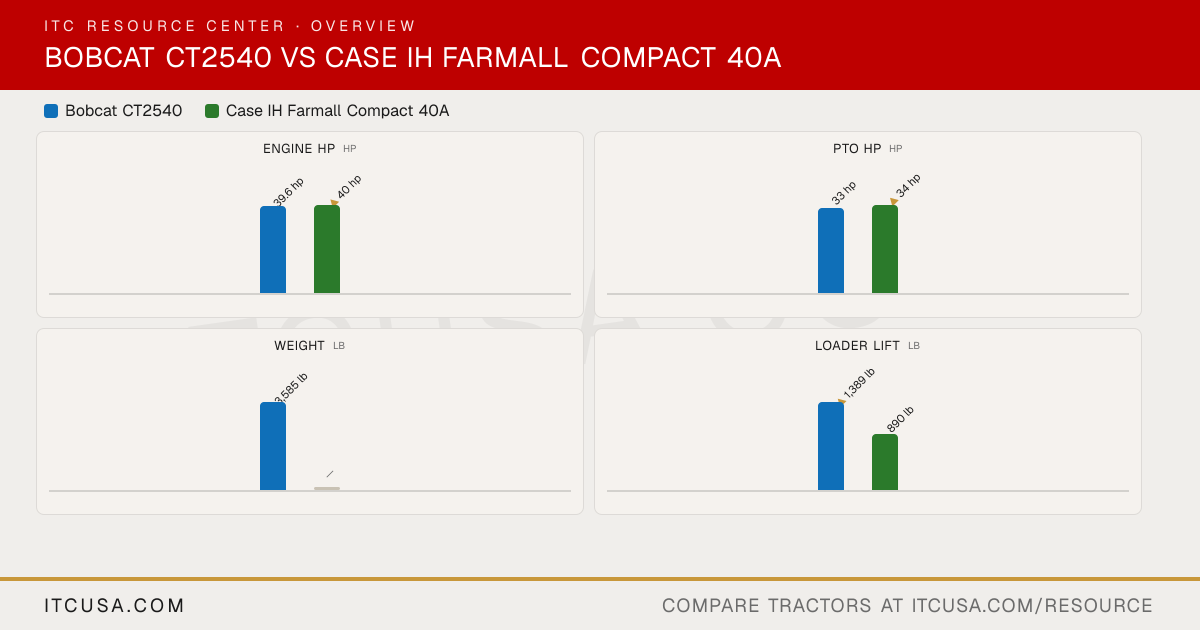

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
BobcatCT2540
Case IHFarmall Compact 40A
PTO Power
33 hp
34 hp
Alternator
75 A, 12 V
Not Published
Air Cleaner
Dry type, replaceable
Not Published
Engine Type
3 cylinder, water cooled, 4 cycle, Vertical In-Line Common Rail Direct Injection (CRDI)
Diesel, turbocharged
Fuel System
Common Rail Direct Injection (CRDI)
Common Rail Direct Injection
Displacement
109.8 in³
115.9 in³
Engine Model
Daedong 0.5 gal 3-cyl diesel
—
No. of Cylinders
3
3
Rated Engine Speed
2600 rpm
Not Published
Cooling System Type
Water cooled
Not Published
Engine Manufacturer
Daedong
Not Published
Engine Power (Gross)
39.6 hp
40 hp
Engine Emissions Constraints
Stage V
Tier 4
Weight with ROPS and Loader
3585 lbs
Not Published
Weight with Cab and Loader
3,642 lb
Not Applicable
Warranty Length & Coverage
24 months of coverage from defects in material and workmanship or 1,500 hours of usage (whichever occurs first)
2 years bumper-to-bumper + 4 years powertrain (6 years total)
Pump Type
Gear
Not Published
Steering Flow
4.5 gpm
Not Published
Implement Flow
6.9 gpm
8.2 gpm
Total Hydraulic Flow
11.3 gpm
Not Published
Hydraulic System Type
Open Center
Not Published
Rear Remote Hydraulic Flow
NOT FOUND — no source reviewed explicitly lists a separate 'Rear Remote Hydraulic Flow' figure for the CT2540. Sources only report total Implement Pump Flow of 11.7 gpm (44.5 Lpm).
Not Published
Overall Hydraulic Pump Flow
11.7 gpm (44.5 Lpm)
Not Published
No. of Optional Remote Valves
NOT FOUND — no source reviewed explicitly lists a count of *optional* remote valves for the CT2540. The spec sheet at tractorgearbox.com lists 'Number of Standard Remote Valves: 1/2' only.
Not Published
No. of Standard Remote Valves
Std. (4 port)
Not Published
PTO Rear
540/540E RPM
540 rpm
PTO Type
Independent
Independent 540-rpm rear PTO with electro-hydraulic engagement (standard)
Lift Control Type
Position
Not Published
Hitch Lift Capacity
2,270.7 lb
Not Published
Mid-PTO Availability
2000.0 RPM
Optional mid-mount PTO; 2,000 rpm
Category, 3-Point Hitch
Category 1
Not Published
Hitch Lift Capacity (at 24”)
1,631 lb
1,433 lb @ 24 in behind ball ends
R3 Turf - Rear
41x14.0-20 R3
Not Published
R3 Turf - Front
27x8.5-15 R3
Not Published
Tire Size & Options
Not Published
Not Published
R4 Industrial - Rear
15-19.5 R4
Not Published
R4 Industrial - Front
25x8.5-14 R4
Not Published
R1 Agricultural - Rear
11.4-24 R1
Not Published
R1 Agricultural - Front
7-16 R1
Not Published
Coolant Capacity
NOT FOUND — field label present in source but numeric value is truncated/missing in all retrieved results
Not Published
Crankcase Capacity
6.4 qts
Not Published
Fuel Tank Capacity
9 gal
Not Published
Front Axle Fluid Capacity
NOT FOUND — no explicit value located in any source
Not Published
Transmission / Hydraulic System Capacity
NOT FOUND — no explicit fill capacity value located in any source
Not Published
Loader Model
Bobcat FL8
—
Loader Lift Height
100 in
Up to 98 in
Loader Breakout Force
2838 lbs
Up to 1,900 lb
Quick Attach Loader System
NOT FOUND — no CT2540-specific quick attach system name/model explicitly stated in any source reviewed
