Compare Tractors

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.

2 of 4 selected

—

BobcatCT2540

—

NewHollandWorkmaster40

Comparison loaded for 2 tractors.

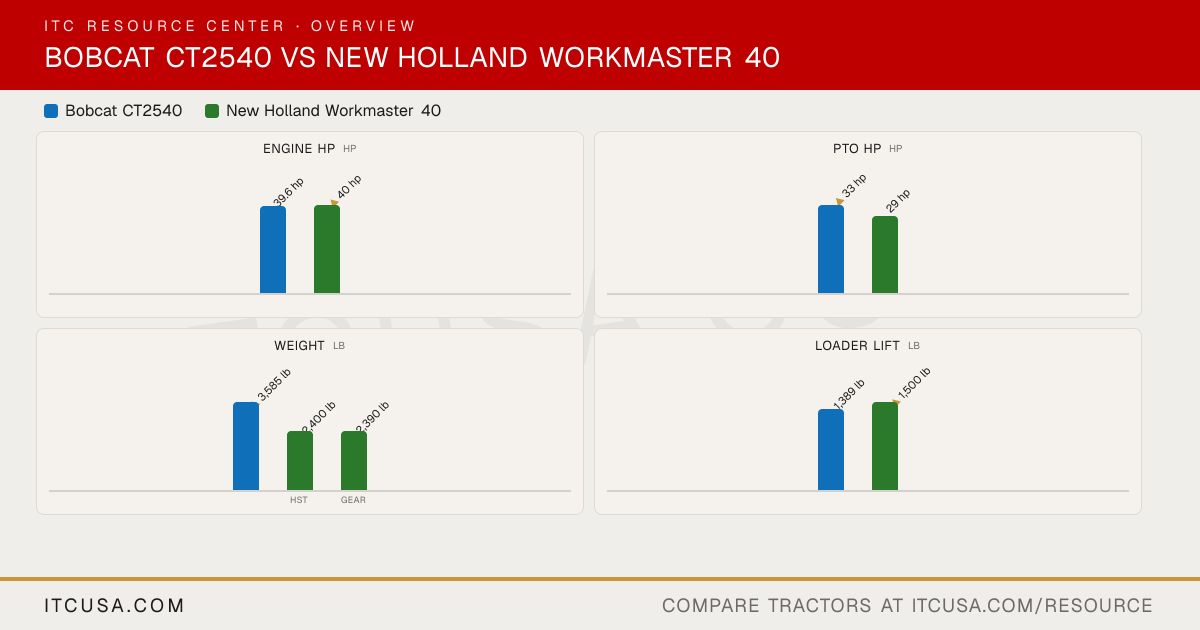

The headline numbers at a glance.

Bobcat CT2540New Holland Workmaster 40

Engine HPhp

39.6 hp

▲40 hp

PTO HPhp

▲33 hp

29 hp

Weightlb

▲3,585 lb

2,400 lb

2,390 lb

HSTGear

Loader Liftlb

1,389 lb

▲1,500 lb

3-Pt Lift (24 in)lb

▲1,631 lb

1,433 lb

Share↓ Image 𝕏 f ✉

Full Spec Sheet

Every published spec, side by side, including the details the graphs above don't chart.

Spec	BobcatCT2540	New HollandWorkmaster 40


PTO Power	33 hp	29 hp
Alternator	75 A, 12 V	70 A, 12 V
Air Cleaner	Dry type, replaceable	Dual element dry air cleaner
Engine Type	3 cylinder, water cooled, 4 cycle, Vertical In-Line Common Rail Direct Injection (CRDI)	Turbocharged diesel
Fuel System	Common Rail Direct Injection (CRDI)	High pressure common rail (ECU controlled timing)
Displacement	109.8 in³	0.1 in³
Engine Model	Daedong 0.5 gal 3-cyl diesel	—
No. of Cylinders	3	3
Rated Engine Speed	2600 rpm	2600 rpm
Cooling System Type	Water cooled	Pressurized liquid with recirculating bypass
Engine Manufacturer	Daedong	LS Mtron
Engine Power (Gross)	39.6 hp	40 hp
Engine Emissions Constraints	Stage V	Tier 4B Final

Weight with ROPS and Loader	3585 lbs	HST: 2,400 lb; Gear: 2,390 lb (with ROPS / less tires)
Weight with Cab and Loader	3,642 lb	Not Applicable

Warranty Length & Coverage	24 months of coverage from defects in material and workmanship or 1,500 hours of usage (whichever occurs first)	6-year limited warranty (2-year bumper-to-bumper + 4-year powertrain)

Pump Type	Gear	Gear
Steering Flow	4.5 gpm	4.8 gpm
Implement Flow	6.9 gpm	8.2 gpm
Total Hydraulic Flow	11.3 gpm	13.0 gpm
Hydraulic System Type	Open Center	Open center
Rear Remote Hydraulic Flow	NOT FOUND — no source reviewed explicitly lists a separate 'Rear Remote Hydraulic Flow' figure for the CT2540. Sources only report total Implement Pump Flow of 11.7 gpm (44.5 Lpm).	Not Published
Overall Hydraulic Pump Flow	11.7 gpm (44.5 Lpm)	13.0 gpm
No. of Optional Remote Valves	NOT FOUND — no source reviewed explicitly lists a count of optional remote valves for the CT2540. The spec sheet at tractorgearbox.com lists 'Number of Standard Remote Valves: 1/2' only.	1 or 2
No. of Standard Remote Valves	Std. (4 port)	0

PTO Rear	540/540E RPM	540 rpm (6-spline)
PTO Type	Independent	Independent
Lift Control Type	Position	Position control
Hitch Lift Capacity	2,270.7 lb	1,808 lb
Mid-PTO Availability	2000.0 RPM	Optional
Category, 3-Point Hitch	Category 1	Category I
Hitch Lift Capacity (at 24”)	1,631 lb	1,433 lb

R3 Turf - Rear	41x14.0-20 R3	41X14.00-20
R3 Turf - Front	27x8.5-15 R3	25X8.50-14
Tire Size & Options	Not Published	R1 Agricultural, R3 Turf, R4 Industrial
R4 Industrial - Rear	15-19.5 R4	43X16-20
R4 Industrial - Front	25x8.5-14 R4	25X8.50-14
R1 Agricultural - Rear	11.4-24 R1	11.2-24
R1 Agricultural - Front	7-16 R1	7.0-14

Coolant Capacity	NOT FOUND — field label present in source but numeric value is truncated/missing in all retrieved results	7.5 qt
Crankcase Capacity	6.4 qts	5.8 qt
Fuel Tank Capacity	9 gal	7.4 gal
Front Axle Fluid Capacity	NOT FOUND — no explicit value located in any source	6.9 qt
Transmission / Hydraulic System Capacity	NOT FOUND — no explicit fill capacity value located in any source	8.5 gal

Loader Model	Bobcat FL8	—
Loader Lift Height	100 in	91.5 in (to bucket pivot pin)
Loader Breakout Force	2838 lbs	2,700 lb (bucket pivot pin)
Quick Attach Loader System	NOT FOUND — no CT2540-specific quick attach system name/model explicitly stated in any source reviewed	140TL: Quick Mount (easy attach/remove); optional skid steer quick attach plates
Loader Lift Capacity (Full Height)	1389 lbs	1,500 lb (bucket pivot pin, max height)

Clutch	Not Published	HST: Not Applicable; Gear: Dry disc, 9.4 in
No. of Speeds	3 range	HST: Infinite (3-range); Gear: 12F/12R
Transmission Type	HST, 3 range	HST: 3-range hydrostatic / dual pedal; Gear: 12x12 synchronized shuttle
Max Travel Speed (Forward)	15.8 mph	HST: 14.96 mph; Gear: 14.33 mph
Max Travel Speed (Reverse)	10.9 mph	HST: 14.96 mph; Gear: 13.63 mph
Differential Lock & Limited Slip Options	Rear Std.	Mechanical rear differential lock

Brakes	Wet disc type	Wet disc
Steering	Hydrostatic Power Steering	Power steering
Frame Type	Not Published	Not Published
Front Axle Type	Not Published	4WD (FWD)
Drawbar Capacity	Not Published	Not Published
Front Axle Rating	Not Published	Not Published
Seat Suspension & Adjustability	Textile Suspension Seat, w/retractable seat belt	Not Published

Wheelbase	92.6 in	69 in
Overall Width	56.0 in	54 in
Ground Clearance	13 in	13 in
Height to Top of ROPS	NOT FOUND	89 in
Height to Top of Cab Model	91.7 in	Not Applicable
Height to Top of ROPS (folded)	NOT FOUND	Not Published
Min. Turn Radius without Brakes	96.5 in	Not Published
Overall Length with 3-Point Hitch	137.3 in	134 in

Accessories that fit	Brush Guard Side Guards $199.99 Bolt onto the side of the OEM guard and offers wrap around protection	None tagged yet
