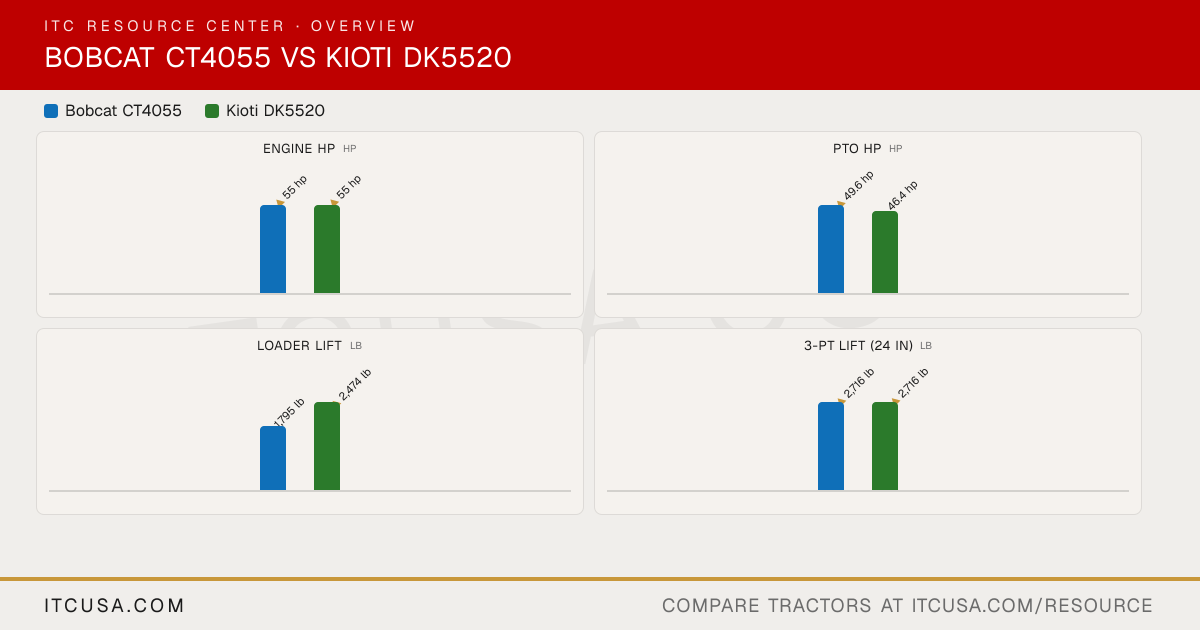

▶ EngineEngine Manufacturer Daedong KIOTI Engine Model 3FT-TL4-U 3HT-TM4B Engine Type Turbocharged diesel 3-cylinder, liquid-cooled diesel No. of Cylinders 3 3 Displacement 111.4 in³ 111.4 in³ Rated Engine Speed 2750 rpm 2600 rpm Engine Power (Gross) 55 hp 55 hp PTO Power 49.6 hp 46.4 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Not Published Fuel System Not Published Not Published Alternator Not Published Not Published ▶ HydraulicsPump Type Not Published Gear Implement Flow 9.6 gpm 9.62 gpm Steering Flow 4.5 gpm 4.94 gpm Total Hydraulic Flow 14.1 gpm 14.56 gpm Overall Hydraulic Pump Flow 14.1 gpm 14.56 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None standard; 2 pairs optional None (2 optional) No. of Optional Remote Valves 2 pairs 2 ▶ Fluid CapacityFuel Tank Capacity 11.9 gal 11.9 gal Coolant Capacity Not Published 0.89 gal Crankcase Capacity Not Published 1.95 gal Transmission / Hydraulic System Capacity Not Published 11.4 gal Front Axle Fluid Capacity Not Published 1.48 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not offered (SST model) No mid PTO (N/A) Category, 3-Point Hitch Category I Category II Hitch Lift Capacity Not Published 2,998 lb Hitch Lift Capacity (at 24”) 2,716 lb 2,716 lb Lift Control Type Hydraulic position control Position ▶ Transmission & DrivetrainTransmission Type 8F x 8R synchro shuttle (SST) Synchronized shuttle No. of Speeds 8 forward, 8 reverse 8F/8R Max Travel Speed (Forward) 16.3 mph 16.71 mph Max Travel Speed (Reverse) 15.9 mph 16.28 mph Clutch Not Published Dry single stage Differential Lock & Limited Slip Options Rear differential lock, standard Rear differential lock (standard) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet multi-disc Wet multi-disc Seat Suspension & Adjustability Adjustable seat (standard) Deluxe suspension seat Front Axle Type Not Published Mechanical 4WD Front Axle Rating Not Published Not Published Drawbar Capacity Not Published 1,655 lb (max. drawbar vertical load) ▶ Dimensions & ManeuverabilityOverall Width 70.3 in (with industrial tires) 62.8 in Wheelbase 71.2 in 71.3 in Ground Clearance 15.3 in (with industrial tires) 14.5 in Min. Turn Radius without Brakes 103.5 in (with assisted braking) 102.7 in (with brake applied) Height to Top of ROPS 97.4 in 96.8 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model n/a (open-station ROPS model) Not Published Overall Length 125.5 in (with 3-point hitch) 124.8 in ▶ WeightTractor Weight (Base) 3,745 lb 3,373 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader n/a (open-station ROPS model) Not Published ▶ Tire OptionsTire Size & Options Agricultural; Turf; Industrial Agricultural, Turf, Industrial, R14 R1 Agricultural - Front 8-16 8-16 R1 Agricultural - Rear 13.6-24 13.6-24 R3 Turf - Front Not Published 29-12.5-15 R3 Turf - Rear Not Published 21.5L-16.1 R4 Industrial - Front Not Published 10-16.5 R4 Industrial - Rear Not Published 14.9-24 ▶ Loader & AttachmentsQuick Attach Loader System Standard quick attach mounting system Quick attach (QA) bucket, 66 in or 72 in Loader Model FL9 KL5520 Loader Lift Height 103.0 in (to pivot pin) KL5520: 107.7 in (at pivot pin) Loader Lift Capacity (Full Height) 1,858 lb (at pivot pin, max height) KL5520: 2,474 lb (at pivot pin) Loader Breakout Force 3,938 lb (at pivot point) KL5520: 3,895 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Not Published Non-commercial: basic 24 months, unlimited hours, parts and labor, 0% deductible; powertrain 72 months, unlimited hours ▶ ITC Company AccessoriesAccessories that fit
