Bobcat CT5550 vs John Deere 5045E | Side-by-side comparison | ITC Resource Center
Compare Tractors

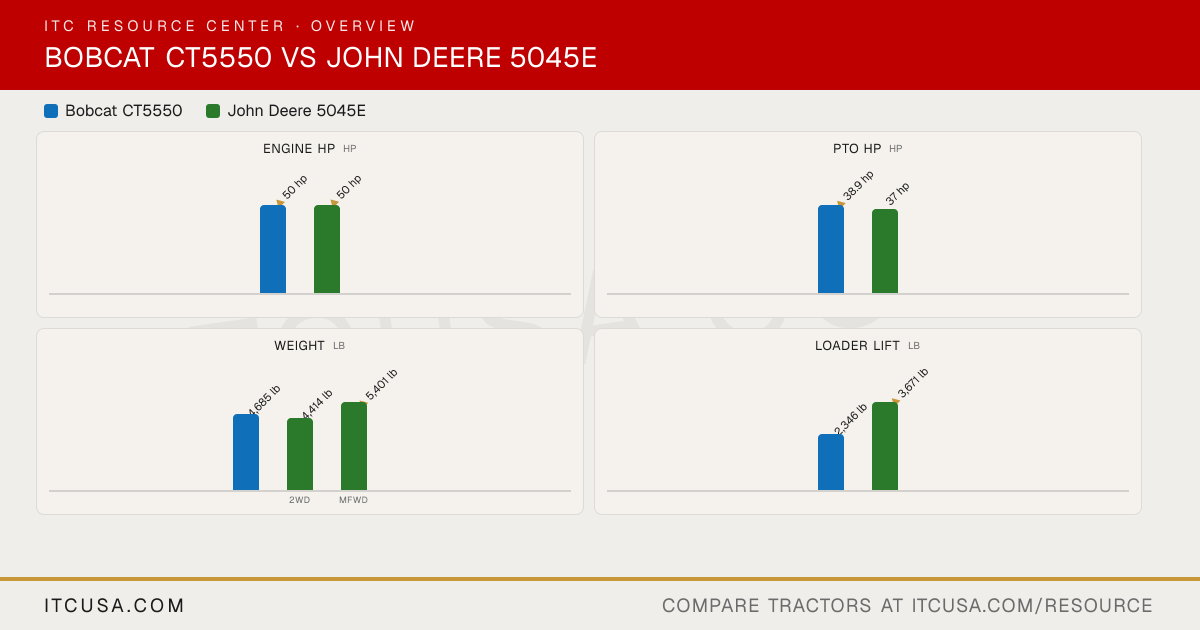

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
BobcatCT5550
John Deere5045E
Engine Manufacturer
Daedong
John Deere
Engine Model
3FT-TH4-U
John Deere PowerTech 3029
Engine Type
Turbocharged diesel
Diesel, turbocharged, liquid-cooled
No. of Cylinders
3
3
Displacement
111.4 in³
179 in³
Rated Engine Speed
2750 rpm
2100 rpm
Engine Power (Gross)
50 hp
50 hp
PTO Power
38.9 hp
37 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Not Published
Dry Type Air Cleaner with Safety Element
Fuel System
Not Published
Not Published
Alternator
Not Published
40 A
Pump Type
Not Published
Not Published
Implement Flow
9.6 gpm
11.4 gpm
Steering Flow
8.2 gpm
6.8 gpm
Total Hydraulic Flow
17.8 gpm
18.2 gpm
Overall Hydraulic Pump Flow
17.8 gpm
18.2 gpm
Hydraulic System Type
Not Published
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
1 pair
1
No. of Optional Remote Valves
2 pairs (2nd and 3rd pairs optional)
2
Fuel Tank Capacity
14.8 gal
19.6 gal
Coolant Capacity
Not Published
10 qt
Crankcase Capacity
Not Published
9 qt
Transmission / Hydraulic System Capacity
Not Published
10.3 gal
Front Axle Fluid Capacity
Not Published
MFWD Dana axle: 1.18 gal differential housing, 0.21 gal each wheel hub; MFWD Carraro axle: 1.03 gal differential housing, 0.15 gal each side reduction gear
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Optional: 2103 rpm
Not Published
Category, 3-Point Hitch
Category I
Category II, convertible to I
Hitch Lift Capacity
Not Published
Not Published
Hitch Lift Capacity (at 24”)
3,177 lb
3,192 lb
Lift Control Type
Position with draft control
Position control with top link draft sensing
Transmission Type
3-Range E-HST (electronic hydrostatic)
SyncShuttle
No. of Speeds
Infinite forward and reverse
9F/3R
Max Travel Speed (Forward)
17.5 mph
Not Published
Max Travel Speed (Reverse)
17.5 mph
Not Published
Clutch
Not Published
Dry
Differential Lock & Limited Slip Options
Rear differential lock (standard)
Mechanical, pedal controlled
Frame Type
Not Published
Not Published
Steering
Hydrostatic power steering
Hydrostatic power steering
Brakes
Wet multi-disc
Hydraulically Actuated Wet Disk Brakes, Self-Equalizing and Self-Adjusting
