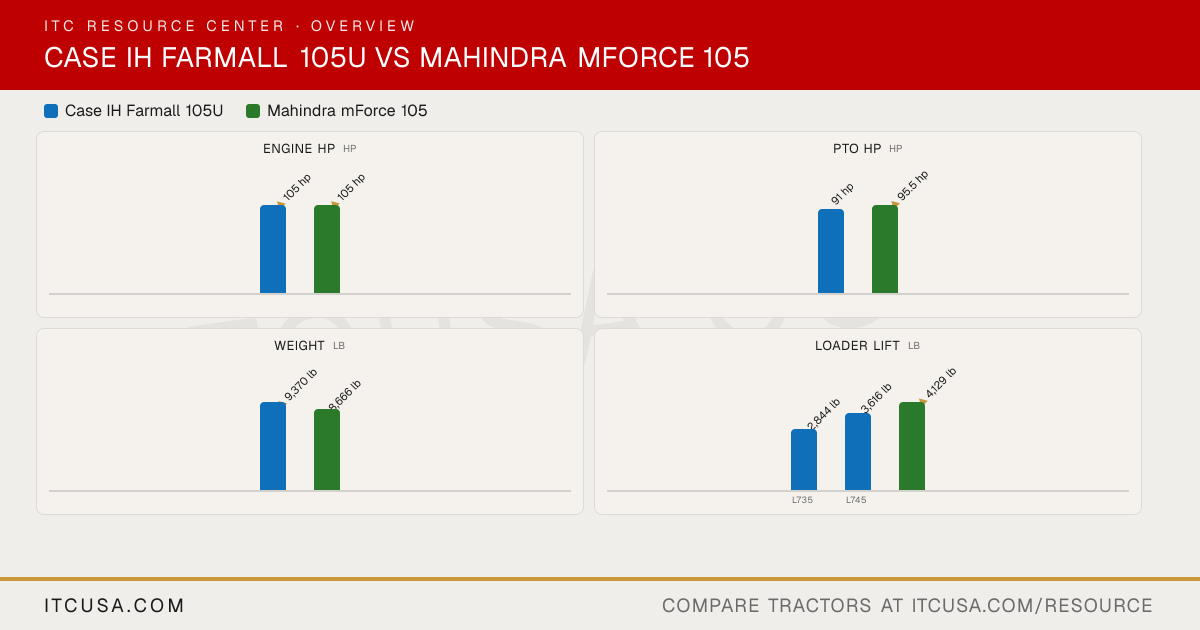

▶ EngineEngine Manufacturer FPT Doosan Engine Model Not Published Not Published Engine Type 4-cylinder diesel, electronic high-pressure common rail Turbocharged and intercooled, direct injection diesel No. of Cylinders 4 4 Displacement 207 in³ 208 in³ Rated Engine Speed 2300 rpm 2300 rpm Engine Power (Gross) 105 hp 105 hp PTO Power 91 hp 94.1 hp Engine Emissions Constraints Tier 4A Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Not Published Fuel System Electronic high-pressure common rail Direct injection Alternator 120 A 85 A ▶ HydraulicsPump Type Not Published Not Published Implement Flow 17.2 gpm (22.2 gpm optional) 15.6 gpm Steering Flow 10 gpm (11.4 gpm optional) 7.1 gpm Total Hydraulic Flow 27.2 gpm (17.2 + 10, computed) Not Published Overall Hydraulic Pump Flow 27.2 gpm (17.2 + 10, computed) Not Published Hydraulic System Type Open center Open center, full-live electro-hydraulic, with position and draft control Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 3 (mFORCE 105P); 2 (mFORCE 105S) No. of Optional Remote Valves 3 4 spool optional (mFORCE 105P); 3 spool optional (mFORCE 105S) ▶ Fluid CapacityFuel Tank Capacity 37 gal 29.1 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Electro-hydraulic PTO Rear Not Published 540 at 2220 rpm, 750 at 2208 rpm, 1000 at 2227 rpm (mFORCE 105P); 540 at 2220 rpm, 1000 at 2227 rpm (mFORCE 105S) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II ball joints with telescopic lower links and adjustable outside stabilizers Hitch Lift Capacity Not Published 6,860 lb (measuring point not stated by Mahindra) Hitch Lift Capacity (at 24”) 6,393 lb Not Published Lift Control Type Electronic draft control (EDC) with rear fender switch Position and draft control ▶ Transmission & DrivetrainTransmission Type Not Published Power shuttle, power shift with synchromesh (mFORCE 105P); power shuttle with synchromesh (mFORCE 105S) No. of Speeds 12F/12R (20F/20R or 24F/24R optional) 24F / 24R + 8 creepers (mFORCE 105P); 12F / 12R (mFORCE 105S) Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Electro-hydraulic power-shuttle clutch Wet multi-plate Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power with tiltable column Brakes Hydraulic wet disc Wet disc Seat Suspension & Adjustability Heated air suspension seat with 15-degree swivel (optional) Pneumatic suspension seat Front Axle Type MFD (four-wheel drive) Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 75 in (minimum) 84.3 in Wheelbase 92.5 in Not Published Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published 11.98 ft Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 103 in (16.9R-34 rear tires) 108.1 in Overall Length 164 in (16.9R-34 rear tires) 176 in ▶ WeightTractor Weight (Base) 9,370 lb (minimum weight, with 16.9R-34 rear tires) 8,666 lb (operating weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 16.9R-34 rear tires (dimension reference); 38-inch tires available Not Published R1 Agricultural - Front 14.9R24 13.6R 24 R1 Agricultural - Rear Not Published 18.4R 34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Quick-Latch loader mounting with Quick-Attach faceplate Not Published Loader Model L735 (NSL or MSL); L745 (NSL or MSL) 105L Loader Lift Height L735: 11 ft 3 in; L745: 12 ft 2.75 in (maximum lift height at pivot pins) 105L: 141.7 in Loader Lift Capacity (Full Height) L735: 2,844 lb (NSL) / 2,954 lb (MSL); L745: 3,616 lb (NSL) / 3,814 lb (MSL) (maximum height @ 31.5 in) 105L: 4,129 lb (at pivot pins) Loader Breakout Force L735: 2,976 lb (NSL) / 3,285 lb (MSL); L745: 3,858 lb (NSL) / 4,254 lb (MSL) (boom breakout at 31.5 in) 105L: 6,025 lb (at pivot pins) ▶ WarrantyWarranty Length & Coverage Not Published 5-year limited powertrain warranty
