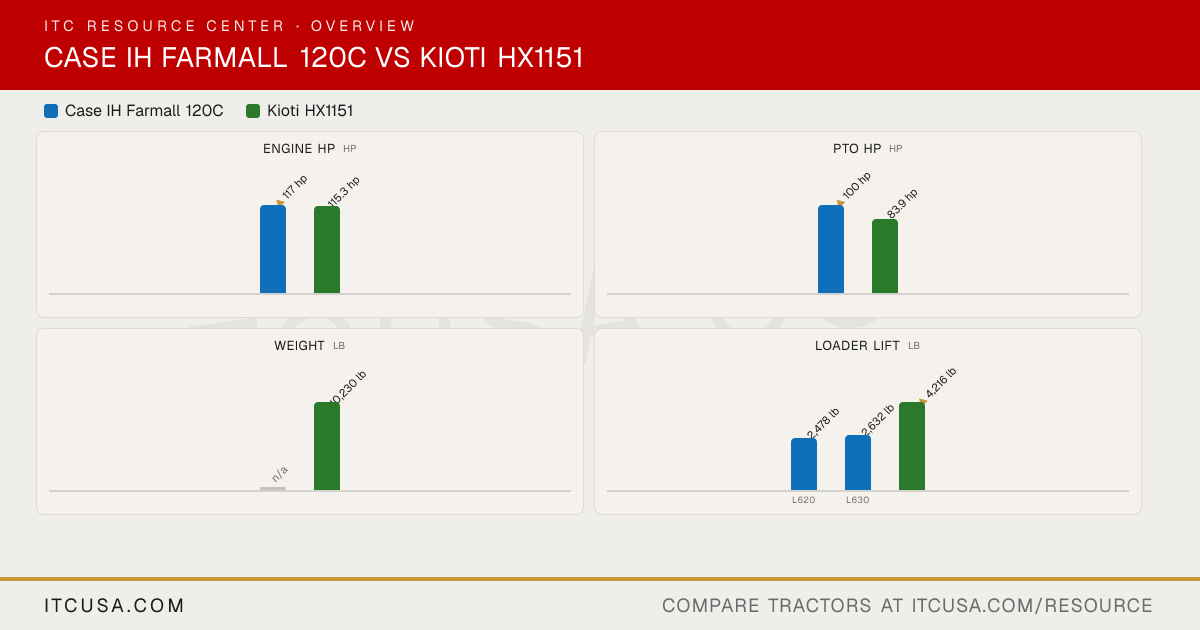

▶ EngineEngine Manufacturer FPT KIOTI (Daedong) Engine Model Not Published 4J243TA-TP5B Engine Type 4-cylinder diesel In-Line Vertical, Water-cooled 4-Cycle Turbo Diesel, CRDI (4J243TA-TP5B) No. of Cylinders 4 4 Displacement 207 in³ 233.9 in³ Rated Engine Speed 2300 rpm 2200 rpm Engine Power (Gross) 117 hp 115.3 hp PTO Power 100 hp 83.9 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Water-cooled Air Cleaner Not Published Dry element with evacuator valve Fuel System High-pressure common rail electronic direct injection Common Rail Direct Injection (CRDI) Alternator Not Published Not Published ▶ HydraulicsPump Type Not Published Gear Implement Flow 16.9 gpm 19.8 gpm Steering Flow 9.7 gpm 12.2 gpm Total Hydraulic Flow 26.6 gpm (16.9 + 9.7, computed) 32 gpm Overall Hydraulic Pump Flow 26.6 gpm (16.9 + 9.7, computed) 32 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 3 No. of Optional Remote Valves 3 (3rd through Parts) 1 ▶ Fluid CapacityFuel Tank Capacity 42.3 gal 47.6 gal Coolant Capacity Not Published 4.7 gal Crankcase Capacity Not Published 3.9 gal Transmission / Hydraulic System Capacity Not Published 20.34 gal Front Axle Fluid Capacity Not Published 2.6 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear Not Published 540 / 540E / 1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II with flex link ends Category II Hitch Lift Capacity Not Published 8,079 lb Hitch Lift Capacity (at 24”) 4,339 lb (5,620 lb with auxiliary lift ram) 8,002 lb Lift Control Type Mechanical draft control (MDC), top link sensing (12x12); electronic draft control (EDC), lower link sensing (Hi-Lo cab) Electronic control ▶ Transmission & DrivetrainTransmission Type Not Published Power Shuttle w/ Hi-Lo Shift No. of Speeds 12F/12R (20F/20R creeper, 24F/24R Hi-Lo or 40F/40R Hi-Lo creeper optional) 24 forward / 24 reverse Max Travel Speed (Forward) Not Published 23.83 mph Max Travel Speed (Reverse) Not Published 23.67 mph Clutch Wet clutch (power shuttle and Hi-Lo) Wet Multi Disc Differential Lock & Limited Slip Options Mechanical rear differential lock (12x12); electrohydraulic (Hi-Lo); MFD front axle with limited slip Mechanical rear differential lock (standard); front limited-slip differential ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic Power Steering Brakes Wet disc Wet Multi Disc Seat Suspension & Adjustability Air suspension seat with 15-degree swivel (optional); instructional seat (optional) Heated air suspension seat, 20 degree swivel both directions, adjustable fore/aft Front Axle Type HD 2WD, MFD or HD MFD with limited slip (12x12); HD MFD with limited slip (Hi-Lo) 4WD with outboard planetary final drives and limited-slip differential Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Max. Drawbar vertical load: 3,307 lb; Max. Trailer loading weight: 9,921 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 160 in (MFD cab) 170.8 in Overall Width 76 in (across standard fenders) 88.6 in Wheelbase 90 in (MFD) 94.9 in Ground Clearance Not Published 18.9 in Min. Turn Radius without Brakes Not Published 12.7 ft (with brake applied) Height to Top of ROPS 106 in (18.4R34 rear tires) Not Published Height to Top of ROPS (folded) 82.9 in (18.4R34 rear tires) Not Published Height to Top of Cab Model 102 in 111.9 in ▶ WeightTractor Weight (Base) Not Published 10,230 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 agricultural or turf, radial or bias; 18.4R34 rear reference tire R1 Agricultural (bias 13.6-24 / 18.4-34, radial 13.6R-24 / 18.4R-34); R14 radial (340/85R24 / 460/85R34) R1 Agricultural - Front 7.50-16 (2WD); 11.2R24 or 14.9R24 (4WD) 13.6-24 R1 Agricultural - Rear 18.4R34 (reference tire) 18.4-34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published KL1155: quick-attach system with built-in parking stand; single-lever joystick control with float; bucket level indicator Loader Model L620; L630 KL1155 Loader Lift Height L620: 126.3 in (NSL) / 125.9 in (MSL); L630: 134 in (NSL) / 135 in (MSL) KL1155: 150.6 in (to pivot pin) Loader Lift Capacity (Full Height) L620: 2,478 lb (NSL) / 3,179 lb (MSL); L630: 2,632 lb (NSL) / 3,428 lb (MSL) (at 31.5 in forward of pivot pin) KL1155: 4,216 lb (at pivot pins) Loader Breakout Force Not Published KL1155: 8,554 lb (at pivot pins) ▶ WarrantyWarranty Length & Coverage Not Published Tractors (Non-Commercial): 24 months parts & labor, unlimited hours, 0% deductible; powertrain (engine and driveline): 48 months unlimited hours on HX Series
