Case IH Farmall 120C vs New Holland T6.145 | Side-by-side comparison | ITC Resource Center
Compare Tractors

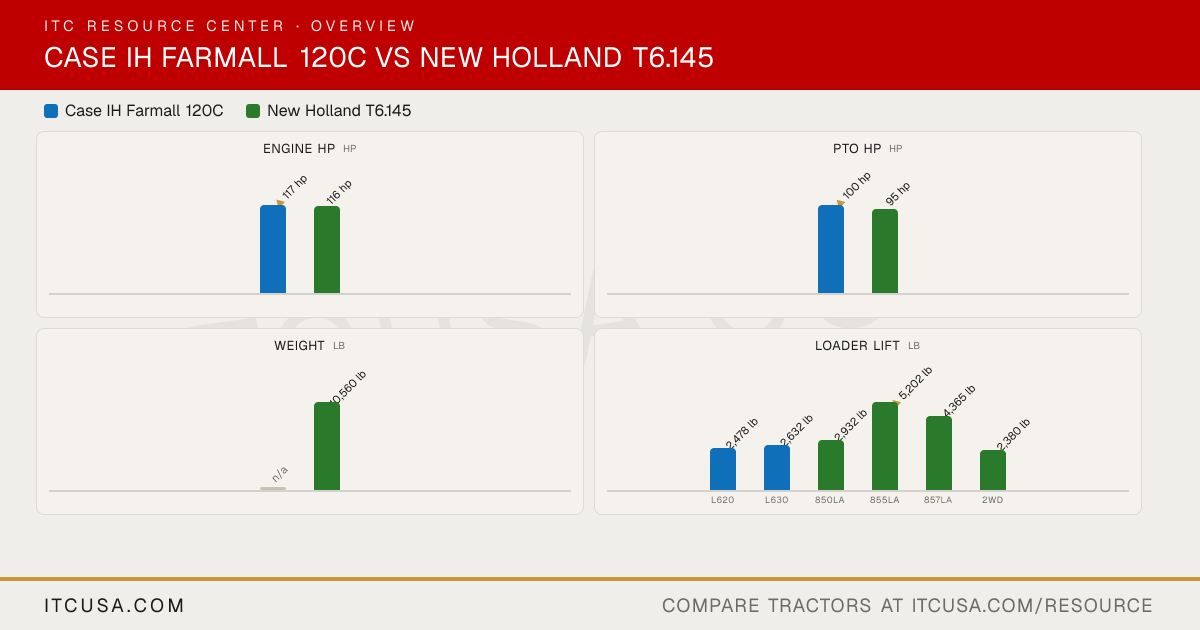

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
3 or 4 mechanical; 3 or 4 electro-hydraulic (Elite, 4 on Auto Command); 2 or 3 mid-mount valves (mechanical or electronic)
Fuel Tank Capacity
42.3 gal
52.2 gal (58.6 gal with auxiliary tank); Dynamic Command: 60 gal
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Front Axle Fluid Capacity
Not Published
Not Published
PTO Type
Independent
Independent, direct-drive PTO with push-pull engagement and Soft Start; reversible PTO shaft
PTO Rear
Not Published
540/1000 rpm (540 at 1969 engine rpm, 1000 at 1893 engine rpm)
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category II with flex link ends
Category II (Category III/II available)
Hitch Lift Capacity
Not Published
Not Published
Hitch Lift Capacity (at 24”)
4,339 lb (5,620 lb with auxiliary lift ram)
Value: 8,338 lb; Auto Command: 9,214 lb; Plus, Elite and Auto Command with optional larger rams: 11,649 lb
Lift Control Type
Mechanical draft control (MDC), top link sensing (12x12); electronic draft control (EDC), lower link sensing (Hi-Lo cab)
Electronic draft control
Transmission Type
Not Published
Electro Command 16x16 semi-powershift (standard; AutoShift, 17x16 Economy, 17x16 Fast Mover 31 mph and 32x32 creeper options); Dynamic Command 23x23 semi-powershift (24x24 Economy, 31 mph and creeper options); Auto Command continuously variable transmission (CVT)
No. of Speeds
12F/12R (20F/20R creeper, 24F/24R Hi-Lo or 40F/40R Hi-Lo creeper optional)
Electro Command: 16F/16R (17F/16R Economy or Fast Mover, 32F/32R creeper); Dynamic Command: 23F/23R (24F/24R options); Auto Command: continuously variable
Max Travel Speed (Forward)
Not Published
25 mph (Electro Command 16x16, Dynamic Command 23x23 and Auto Command CVT standard); 31 mph (Fast Mover 17x16, Dynamic Command 24x24 31 mph and optional Auto Command 31 mph, FWD only); 19 mph (2WD)
Max Travel Speed (Reverse)
Not Published
Not Published
Clutch
Wet clutch (power shuttle and Hi-Lo)
Not Published
Differential Lock & Limited Slip Options
Mechanical rear differential lock (12x12); electrohydraulic (Hi-Lo); MFD front axle with limited slip
Terralock automatic traction management: automatic 4WD engagement and front and rear differential locks
Frame Type
Not Published
Not Published
Steering
Power steering
Not Published
Brakes
Wet disc
Wet disc
Seat Suspension & Adjustability
Air suspension seat with 15-degree swivel (optional); instructional seat (optional)
Comfort seat with low-frequency suspension standard; Dynamic Comfort seat (low-frequency suspension, heated) and Auto Comfort seat (active suspension, heated and ventilated) optional; swiveling backrest; Comfort Ride cab suspension optional
Front Axle Type
HD 2WD, MFD or HD MFD with limited slip (12x12); HD MFD with limited slip (Hi-Lo)
Standard FWD axle (Class 3 and 4); Terraglide suspended FWD axle or SuperSteer FWD axle optional; heavy-duty 2WD axle available on Electro Command models
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
160 in (MFD cab)
204.3 in (front linkage to rear linkage)
Overall Width
76 in (across standard fenders)
89.8 in (minimum; 91 in with 650/65R38 tires)
Wheelbase
90 in (MFD)
Standard FWD axle: 104 in; Terraglide suspended axle: 105.7 in; SuperSteer axle: 109.8 in; 2WD: 96 in
Ground Clearance
Not Published
18.8 in (18.4R38, 520/70R38 or 600/65R38 rear tires; 16.8 in with 16.9R38, 20.8 in with 650/65R38)
Min. Turn Radius without Brakes
Not Published
15.1 ft (standard FWD axle, 55 degree turn angle); 14.1 ft (2WD or SuperSteer axle, 65 degree turn angle)
Height to Top of ROPS
106 in (18.4R34 rear tires)
Not Published
Height to Top of ROPS (folded)
82.9 in (18.4R34 rear tires)
Not Published
Height to Top of Cab Model
102 in
115.2 in (standard cab, 18.4R38 tires); 110.4 in (low profile cab); 117.7 in (Comfort Ride suspension cab)
Tractor Weight (Base)
Not Published
10,560 lb (minimum shipping weight, cab FWD, less ballast; average 11,376 lb, maximum 12,513 lb; 2WD is 1,234 lb less)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 agricultural or turf, radial or bias; 18.4R34 rear reference tire
Rear: 16.9R38, 18.4R38, 520/70R38, 600/65R38, 650/65R38 (Comfort Ride cab only), 480/70R38, 540/65R38 or 650/60R38 with matching front tires
