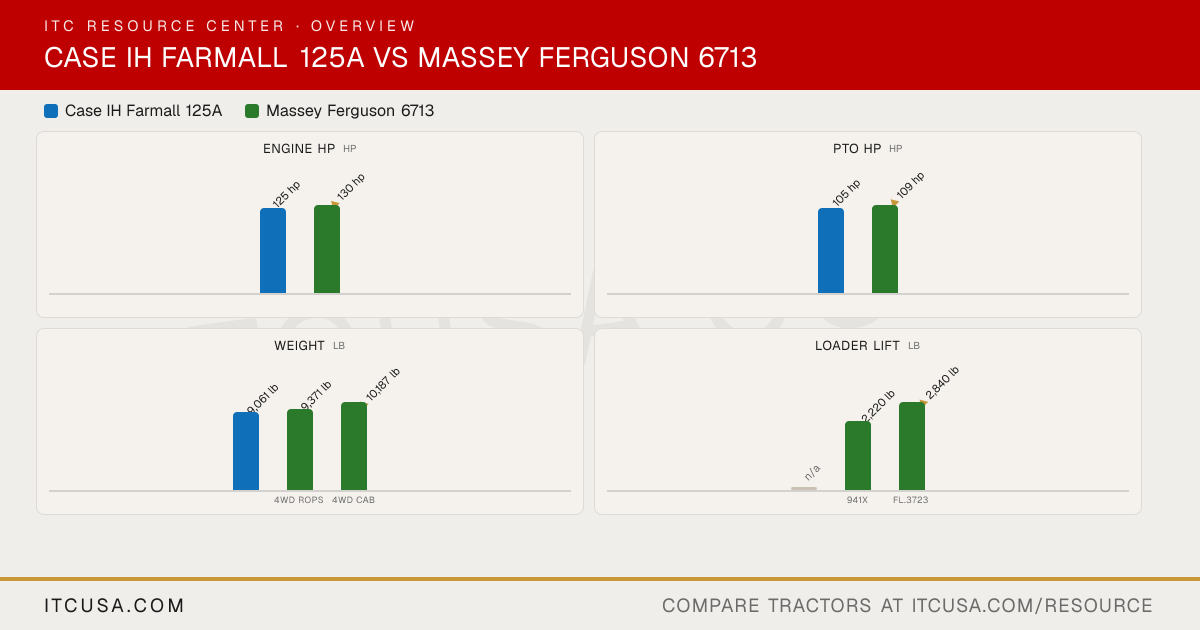

▶ EngineEngine Manufacturer FPT AGCO Power Engine Model Not Published 44 AWFC Engine Type Turbocharged 6-cylinder diesel, 12 valves 4-cylinder, intercooled turbocharged diesel No. of Cylinders 6 4 Displacement 411 in³ 268.5 in³ Rated Engine Speed 2200 rpm 2200 rpm Engine Power (Gross) 125 hp 130 hp PTO Power 105 hp 109 hp Engine Emissions Constraints Tier 3 Tier 4 Cooling System Type Liquid-cooled Liquid cooled Air Cleaner Not Published Not Published Fuel System Mechanical injection High-pressure common-rail direct injection (HPCR) Alternator 120 A 80 A, 12 V ▶ HydraulicsPump Type Fixed displacement pump Two high-pressure gear pumps Implement Flow 22 gpm 15.1 gpm Steering Flow 9 gpm Not Published Total Hydraulic Flow 31 gpm 25.9 gpm Overall Hydraulic Pump Flow 31 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 26 gpm No. of Standard Remote Valves 2 2 No. of Optional Remote Valves 4 3rd valve optional ▶ Fluid CapacityFuel Tank Capacity 62 gal 38.3 gal Coolant Capacity Not Published Not Published Crankcase Capacity 14.8 qt Not Published Transmission / Hydraulic System Capacity 65.5 qt Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Independent, electro-hydraulic engagement via switch PTO Rear 540/1000 (two individual shafts) 540 / 540E / 1000 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 7,200 lb 9,390 lb Lift Control Type Not Published Electronic linkage control (ELC) ▶ Transmission & DrivetrainTransmission Type Not Published 12F x 12R, 2-range power shuttle with electrohydraulic shuttle lever No. of Speeds 8F/8R (16F/8R optional) 12 forward, 12 reverse Max Travel Speed (Forward) 18.4 mph 25 mph Max Travel Speed (Reverse) 19.0 mph Not Published Clutch Not Published Wet clutch with easy shift knob and electrohydraulic power shuttle lever Differential Lock & Limited Slip Options Not Published Electro-hydraulic rear differential lock (rocker switch); hydraulic front differential lock on 4WD ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Cab: tilt and telescopic steering; platform: tilt steering Brakes Wet disc Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Seat Suspension & Adjustability Mechanical seat (standard); air suspension seat (optional) Cab: air-suspension swivel seat; platform: mechanical spring-suspension seat with armrests Front Axle Type Not Published Heavy-duty 4WD front axle Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width Not Published 64.8 in Wheelbase 105 in (2WD); 104 in (MFD) 98.4 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS Not Published Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length Not Published Not Published ▶ WeightTractor Weight (Base) 9,061 lb (2WD ROPS); 9,700 lb (MFD ROPS); 9,766 lb (2WD cab); 10,406 lb (MFD cab) 4WD ROPS: 9,371 lb; 4WD Cab: 10,187 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Rear: 460/85R34 standard radial R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear 18.4-34 Not Published R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Automatic quick-coupling loader mount with combined hydraulic connection Not Published Loader Model L755 941X; 946X; FL.3723; FL.3819 Loader Lift Height Not Published 941X: 148 in; 946X: 148 in; FL.3723: 149 in; FL.3819: 149 in Loader Lift Capacity (Full Height) Not Published 941X: 2,220 lb; FL.3723: 2,840 lb (to full height) Loader Breakout Force Not Published FL.3723: 5,819 lb; FL.3819: 4,893 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
