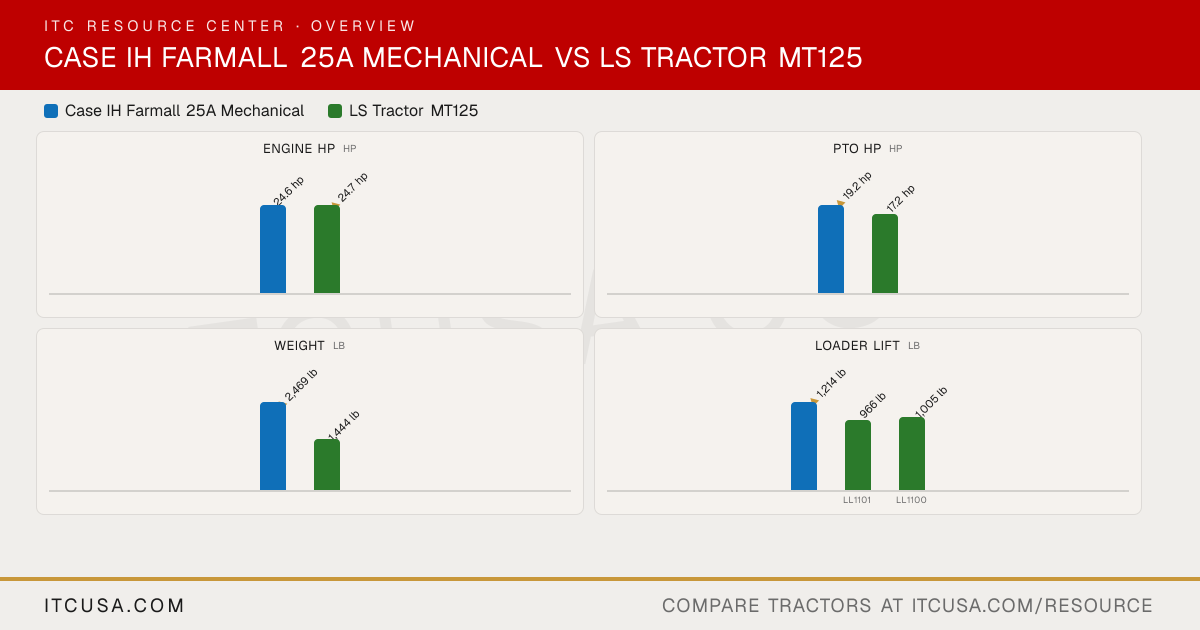

▶ EngineEngine Manufacturer Mitsubishi Yanmar Engine Model Not Published 3TNV80F Engine Type 3-cylinder, turbocharged & aftercooled, Tier 4 B/Final 3-cylinder, indirect injection (swirl chamber), water-cooled No. of Cylinders 3 3 Displacement 80.4 in³ 77.3 in³ Rated Engine Speed 2500 rpm 3000 rpm Engine Power (Gross) 24.6 hp 24.7 hp PTO Power 19.2 hp 17.2 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Water-cooled Air Cleaner Not Published Dry Fuel System Not Published In-line injection pump Alternator Not Published 40 A, 12 V ▶ HydraulicsPump Type Not Published Gear pump, transmission driven Implement Flow 7.9 gpm 4.6 gpm Steering Flow Not Published 2.1 gpm Total Hydraulic Flow Not Published 6.7 gpm Overall Hydraulic Pump Flow Not Published 6.7 gpm Hydraulic System Type Open center Open center system, position control Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 0 0 No. of Optional Remote Valves 1 1 pair (2 quick couplers) ▶ Fluid CapacityFuel Tank Capacity 7.4 gal 6.6 gal Coolant Capacity Not Published 0.9 gal Crankcase Capacity Not Published 0.8 gal Transmission / Hydraulic System Capacity Not Published 3.0 gal (3.4 gal with front-end loader; 4.7 gal with front-end loader and backhoe) Front Axle Fluid Capacity Not Published 0.5 gal ▶ PTO & HitchPTO Type Independent Independent (electro-hydraulic) PTO Rear 540 rpm Standard (540 rpm) Mid-PTO Availability Optional, 2,000 rpm Standard (2,500 rpm) Category, 3-Point Hitch Category 1 Category I Hitch Lift Capacity Not Published 970 lb Hitch Lift Capacity (at 24”) 1,433 lb 728 lb Lift Control Type Not Published Position control ▶ Transmission & DrivetrainTransmission Type 12x12 mechanical shuttle with synchro shift (dry clutch) (standard) Hydrostatic Drive No. of Speeds 12 forward, 12 reverse 2 ranges Max Travel Speed (Forward) Not Published 8.70 mph Max Travel Speed (Reverse) Not Published 5.22 mph Clutch Dry clutch Not Published Differential Lock & Limited Slip Options Mechanical differential lock Mechanical pedal type ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Not Published Wet, multi-disc Seat Suspension & Adjustability Not Published Forward/backward adjustable via seat F/R adjustment lever; reversible seat optional Front Axle Type Mechanical Front Drive (MFD) Front wheel mechanical assist (4WD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Hitch: 882 lb vertical, 3,527 lb horizontal; drawbar with clevis: 772 lb vertical, 3,527 lb horizontal ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 117.2 in 97 in Overall Width Not Published 47 in Wheelbase 65.9 in 56 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published 7.87 ft Height to Top of ROPS 88.2 in 87 in Height to Top of ROPS (folded) 68.2 in Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2,469 lb 1,444 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Front 18x8.50-10, rear 26x12.0-12; offered in industrial or turf R1 Agricultural - Front Not Published Not Published R1 Agricultural - Rear Not Published Not Published R3 Turf - Front Not Published 18x8.50-10 R3 Turf - Rear Not Published 26x12.0-12 R4 Industrial - Front Not Published 18x8.50-10 R4 Industrial - Rear Not Published 26x12.0-12 ▶ Loader & AttachmentsQuick Attach Loader System Not Published LL1101 Quick-Attach Front Loader Loader Model L330 LL1101; LL1100 Loader Lift Height 94.3 in LL1101: 72.0 in; LL1100: 72.0 in (at pivot pin) Loader Lift Capacity (Full Height) 1214 lb LL1101: 966 lb; LL1100: 1,005 lb (at pivot pin, maximum height) Loader Breakout Force 1926 lb LL1101: 1,960 lb; LL1100: 2,083 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage 6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection 6-year limited warranty
