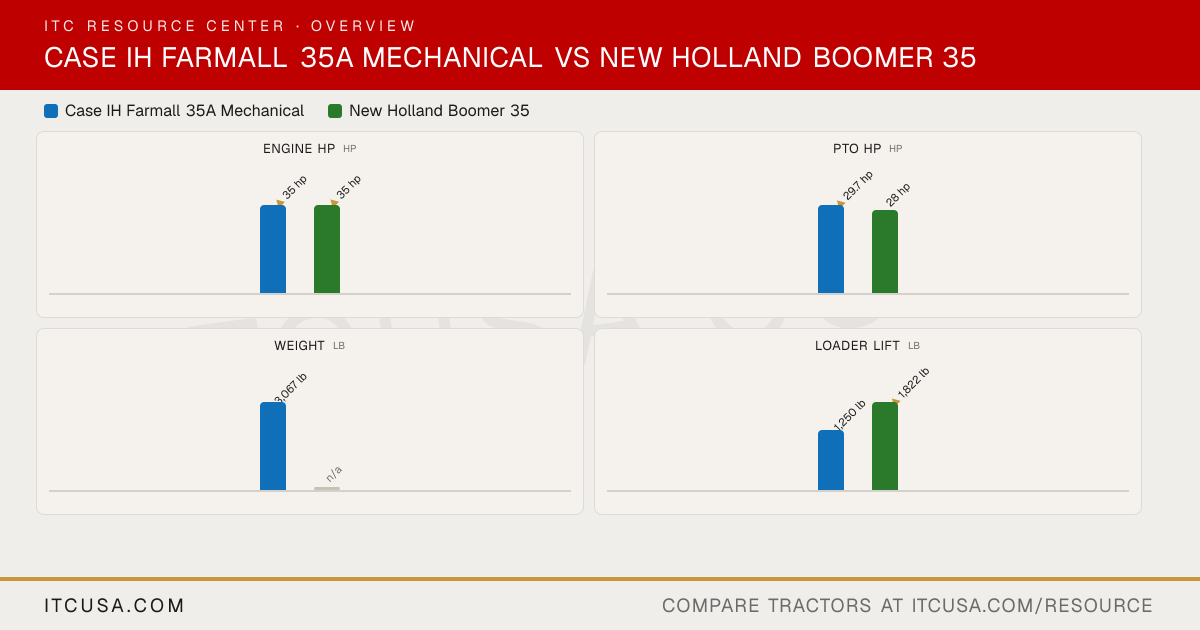

▶ EngineEngine Manufacturer LS Mtron LS Mtron Engine Model Not Published L3CRV-T5 Engine Type 3-cylinder, Tier 4 B/Final 3-cylinder, turbocharged, liquid-cooled diesel No. of Cylinders 3 3 Displacement 114.7 in³ 114.7 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 35 hp 35 hp PTO Power 31 hp Gear: 29.7 hp; HST: 28 hp Engine Emissions Constraints Tier 4 Tier 4B (final) Cooling System Type Not Published Liquid cooled Air Cleaner Not Published Replaceable primary and inner elements Fuel System Not Published Electronically controlled common rail direct injection Alternator Not Published 70 A, 12 V ▶ HydraulicsPump Type Not Published Gear Implement Flow 8.4 gpm 8.2 gpm Steering Flow Not Published Gear: 4.2 gpm; HST: 5.3 gpm Total Hydraulic Flow 13.3 gpm Gear: 12.4 gpm; HST: 13.5 gpm Overall Hydraulic Pump Flow Not Published Gear: 12.4 gpm; HST: 13.5 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 0 1 No. of Optional Remote Valves 3 Up to 2 (second valve optional) ▶ Fluid CapacityFuel Tank Capacity 12.6 gal 10.5 gal Coolant Capacity Not Published 7.5 qt Crankcase Capacity Not Published 5.8 qt Transmission / Hydraulic System Capacity Not Published 8.5 gal Front Axle Fluid Capacity Not Published 6.87 qt ▶ PTO & HitchPTO Type Independent, electro-hydraulic engagement Independent, electro-hydraulic engagement PTO Rear 540 rpm 540 rpm Mid-PTO Availability Not Published Standard (2000 rpm) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity Not Published 1,808 lb Hitch Lift Capacity (at 24”) 1,596 lb 1,345 lb Lift Control Type Mechanical Draft Control (MDC) Position control (draft control optional) ▶ Transmission & DrivetrainTransmission Type 12x12 mechanical shuttle with synchro shift (dry clutch) (standard) Gear: 12x12 synchronized shuttle shift (SSS); HST: 3-range hydrostatic, dual pedal No. of Speeds 12 forward, 12 reverse Gear: 12F/12R; HST: 3-range Max Travel Speed (Forward) 14.2 mph Gear: 14.2 mph; HST: 14.8 mph Max Travel Speed (Reverse) Not Published Gear: 13.63 mph; HST: 13.60 mph Clutch Dry clutch Gear: dry single disc (9.4 in); HST: n/a Differential Lock & Limited Slip Options Mechanical differential lock Mechanical rear differential lock (pedal) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Not Published Power steering Brakes Not Published Wet multi-disc Seat Suspension & Adjustability Adjustable suspension seat Adjustable suspension seat (fore/aft, weight and height adjustment) Front Axle Type Mechanical Front Drive (MFD) Four-wheel drive (FWD) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 66.5 in 66.4 in Wheelbase 66.2 in 66 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 10.5 ft 9.2 ft (with brake applied) Height to Top of ROPS 96.2 in 92.7 in Height to Top of ROPS (folded) 74.2 in Not Published Height to Top of Cab Model Not Published Not Published Overall Length 119.4 in 119 in ▶ WeightTractor Weight (Base) 3,042 lb Gear: 2,804 lb; HST: 2,870 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural, R3 Turf, or R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front 7x14 7-14 R1 Agricultural - Rear 11.2x24 11.2-24 R3 Turf - Front 25x8.50-14 25x8.50-14 R3 Turf - Rear 41x14.00-20 41x14.00-20 R4 Industrial - Front 25x8.50-14 25x8.50-14 R4 Industrial - Rear 43x16.00-20 43x16.00-20 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Tool-free loader mount; optional skid-steer quick-attach plates Loader Model L340A 250TLA Loader Lift Height 98 in 250TLA: 104 in (at pivot pin) Loader Lift Capacity (Full Height) 890 lb at 31.5 in forward of pivot pin 250TLA: 1,822 lb (at bucket pivot pin, max height) Loader Breakout Force 1,900 lb 250TLA: 3,257 lb (at bucket pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 2 years; powertrain 4 additional years (6-year total) Basic 2 years or 750 hours; powertrain 4 more years (6 years or 1,500 hours total)
