Case IH Farmall 35A Mechanical vs TYM 3515 | Side-by-side comparison | ITC Resource Center
Compare Tractors

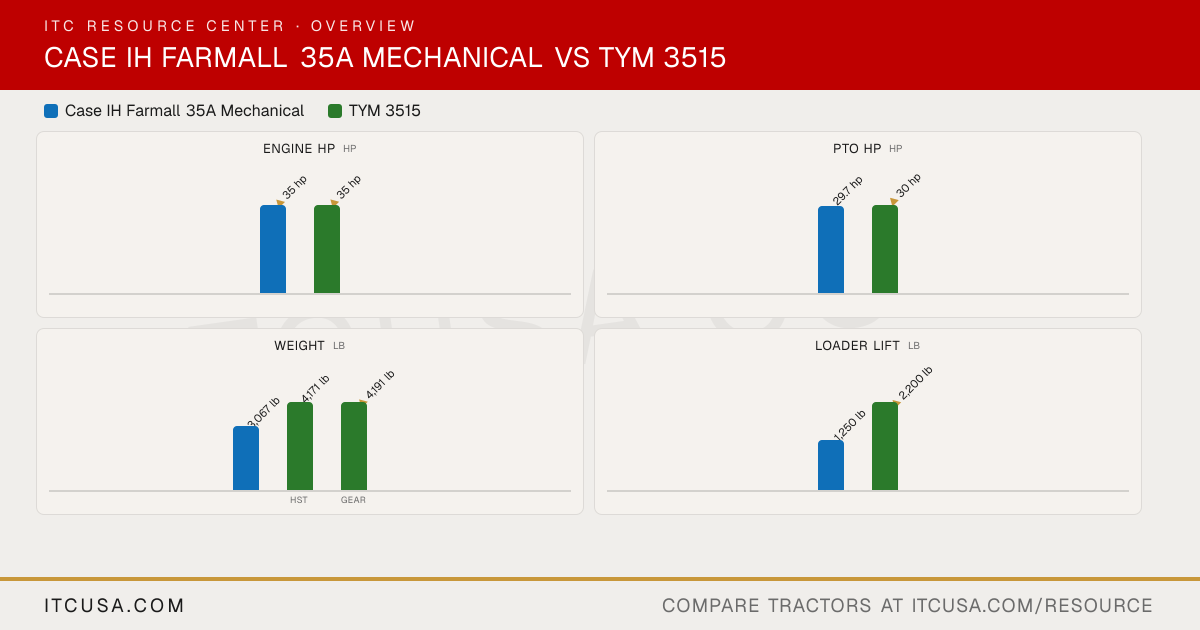

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Case IHFarmall 35A Mechanical
TYM3515
Engine Manufacturer
LS Mtron
TYM
Engine Model
L3C19-T5
n/a
Engine Type
3-cylinder, turbocharged diesel, Tier 4 B/Final
3-cylinder, naturally aspirated diesel
No. of Cylinders
3
3
Displacement
116 in³
104.6 in³
Rated Engine Speed
2600 rpm
2600 rpm
Engine Power (Gross)
35 hp
35 hp
PTO Power
29.7 hp
30 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Pressurized liquid cooling with recirculating bypass
Not Published
Air Cleaner
Not Published
Dry Element
Fuel System
High pressure common rail
IDI
Alternator
70 A, 12 V
50 A, 12 V
Pump Type
Gear
Single Gear Pump
Implement Flow
8.2 gpm
4.3 gpm
Steering Flow
4.2 gpm
8.0 gpm
Total Hydraulic Flow
12.4 gpm (8.2 + 4.2, computed)
12.3 gpm
Overall Hydraulic Pump Flow
Not Published
12.3 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
0
0
No. of Optional Remote Valves
1
Up to 4
Fuel Tank Capacity
7.4 gal
7.1 gal
Coolant Capacity
7.5 qt
5.28 qt
Crankcase Capacity
5.8 qt
4.5 qt
Transmission / Hydraulic System Capacity
8.5 gal
HST: 9.8 gal; Gear: 8.9 gal
Front Axle Fluid Capacity
6.9 qt
1.7 qt
PTO Type
Independent, electro-hydraulic engagement
Independent
PTO Rear
540 rpm
560 rpm
Mid-PTO Availability
Optional, 2,000 rpm
Not Published
Category, 3-Point Hitch
Category 1
Category I
Hitch Lift Capacity
1,808 lb
3,306 lb
Hitch Lift Capacity (at 24”)
1,433 lb
2,425 lb
Lift Control Type
Mechanical Draft Control (MDC)
Position control
Transmission Type
12x12 mechanical shuttle with synchro shift (dry clutch) (standard)
HST: HST; Gear: Synchromesh
No. of Speeds
12 forward, 12 reverse
HST: 3-Range; Gear: F12 x R12
Max Travel Speed (Forward)
14.2 mph
HST: 18.8 mph; Gear: 14.4 mph
Max Travel Speed (Reverse)
13.63 mph
Not Published
Clutch
Dry clutch
HST: Not Applicable; Gear: Dry Single Plate
Differential Lock & Limited Slip Options
Mechanical differential lock
Differential lock
Frame Type
Not Published
Not Published
Steering
Power steering
Hydrostatic
Brakes
Wet disc, mechanical actuation
Wet, Multi-disc
Seat Suspension & Adjustability
Adjustable suspension seat
Comfortable suspension seat
Front Axle Type
Mechanical Front Drive (MFD)
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
145.2 in
120.9 in
Overall Width
66.4 in
56.3 in
Wheelbase
67.3 in
65.7 in
Ground Clearance
10.0 in
14.4 in
Min. Turn Radius without Brakes
123 in
102 in
Height to Top of ROPS
87.6 in
97.3 in
Height to Top of ROPS (folded)
68.2 in
Not Published
Height to Top of Cab Model
Not Published
Not Applicable
Tractor Weight (Base)
3,067 lb
n/a
Weight with ROPS and Loader
Not Published
HST: 4,171 lb; Gear: 4,191 lb
Weight with Cab and Loader
Not Published
Not Applicable
Tire Size & Options
R1 agricultural, R3 turf, or R4 industrial (R4 standard)
R1 Agricultural, R4 Industrial
R1 Agricultural - Front
7x14
8.0-16
R1 Agricultural - Rear
11.2x24
12.4-24
R3 Turf - Front
25x8.50-14
Not Published
R3 Turf - Rear
41x14.00-20
Not Published
R4 Industrial - Front
25x8.50-14
28x8.50-15
R4 Industrial - Rear
43x16.00-20
43x16.00-20
Quick Attach Loader System
Not Published
BL150: Quick attach assembly (lever-lock)
Loader Model
L340A
n/a
Loader Lift Height
98.4 in
104.9 in
Loader Lift Capacity (Full Height)
1,250 lb
2,200 lb
Loader Breakout Force
1913 lb
3,422 lb
Warranty Length & Coverage
6-year extended warranty: 2 years bumper-to-bumper plus 4 additional years of powertrain protection
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
