Case IH Farmall 50C vs John Deere 5045E | Side-by-side comparison | ITC Resource Center
Compare Tractors

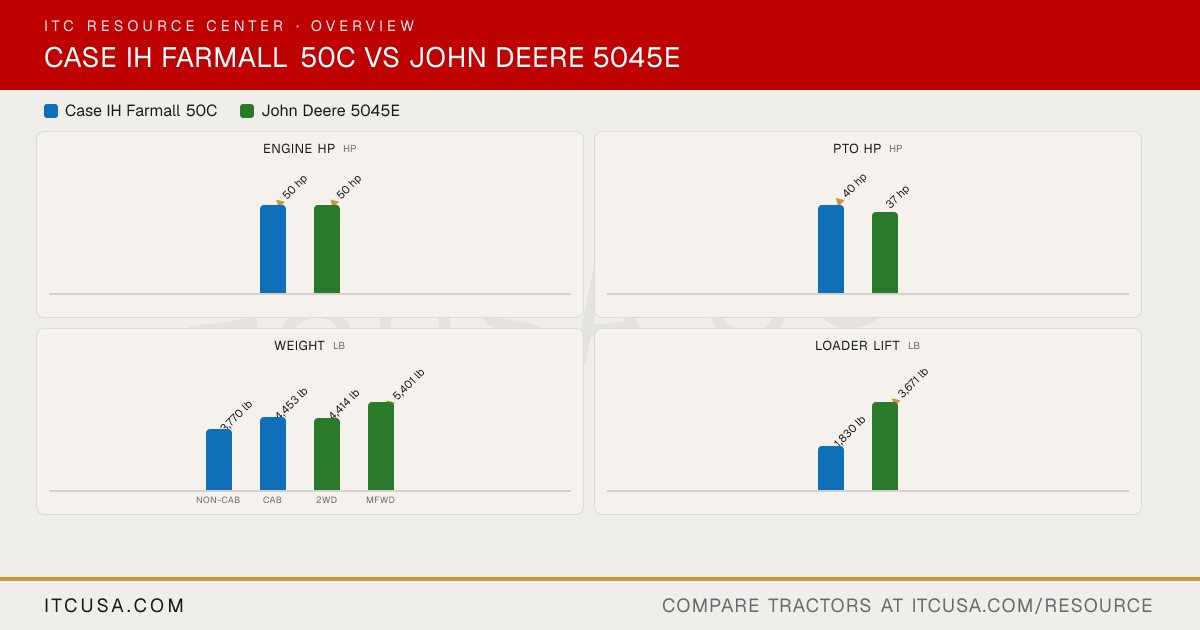

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Case IHFarmall 50C
John Deere5045E
Engine Manufacturer
LS Mtron
John Deere
Engine Model
Not Published
John Deere PowerTech 3029
Engine Type
Diesel, 3-cylinder, turbocharged
Diesel, turbocharged, liquid-cooled
No. of Cylinders
3
3
Displacement
115.9 in³
179 in³
Rated Engine Speed
2600 rpm
2100 rpm
Engine Power (Gross)
50 hp
50 hp
PTO Power
40 hp
37 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Not Published
Liquid-cooled
Air Cleaner
Not Published
Dry Type Air Cleaner with Safety Element
Fuel System
Common rail direct injection
Not Published
Alternator
Not Published
40 A
Pump Type
Not Published
Not Published
Implement Flow
8.2 gpm
11.4 gpm
Steering Flow
Not Published
6.8 gpm
Total Hydraulic Flow
13.5 gpm (8.2 + 5.3, computed)
18.2 gpm
Overall Hydraulic Pump Flow
Not Published
18.2 gpm
Hydraulic System Type
Open center
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
1
1
No. of Optional Remote Valves
2
2
Fuel Tank Capacity
Non-cab: 10.5 gal; Cab: 12.4 gal
19.6 gal
Coolant Capacity
Not Published
10 qt
Crankcase Capacity
Not Published
9 qt
Transmission / Hydraulic System Capacity
Not Published
10.3 gal
Front Axle Fluid Capacity
Not Published
MFWD Dana axle: 1.18 gal differential housing, 0.21 gal each wheel hub; MFWD Carraro axle: 1.03 gal differential housing, 0.15 gal each side reduction gear
