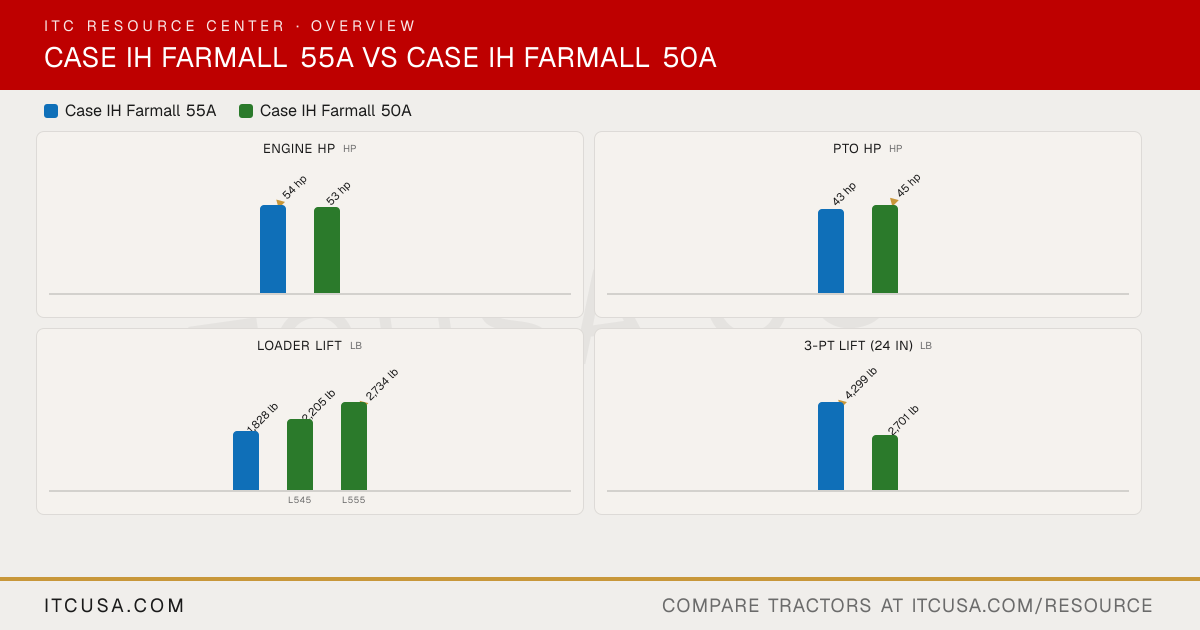

▶ EngineEngine Manufacturer FPT FPT Engine Model Not Published Not Published Engine Type 3-cylinder, FPT turbocharged & aftercooled diesel, Tier 4 B/Final 3-cylinder, FPT turbocharged & aftercooled No. of Cylinders 3 3 Displacement 178.8 in³ 135.9 in³ Rated Engine Speed 2300 rpm 2600 rpm Engine Power (Gross) 54 hp 53 hp PTO Power 40 hp 45 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Not Published Dry Fuel System Electronic high pressure common rail Electronic high pressure common rail Alternator 120 A 75 A ▶ HydraulicsPump Type Fixed displacement Engine-driven dual gear-type Implement Flow 12.6 gpm 11.9 gpm Steering Flow Not Published 5.5 gpm Total Hydraulic Flow Not Published 17.4 gpm (11.9 + 5.5, computed) Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 1 No. of Optional Remote Valves 3 2 ▶ Fluid CapacityFuel Tank Capacity 21.7 gal 17.2 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 (standard); 540/540E (optional) 540 / 540E Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category 1/2 Category 1/2 Hitch Lift Capacity 5,952 lb (optional hitch 6,614 lb) Not Published Hitch Lift Capacity (at 24”) 4,300 lb (optional hitch 4,740 lb) 2,701 lb Lift Control Type Mechanical Draft Control (MDC), top link sensing Mechanical Draft Control (MDC), top link sensing ▶ Transmission & DrivetrainTransmission Type MFD: 12x12 power shuttle (wet clutch); 2WD: 8x8 power shuttle (wet clutch); optional 12x12 mechanical shuttle (dry clutch) or 12x12 with creeper (20x20) 8x8 mechanical shuttle (dry clutch) No. of Speeds MFD: 12F/12R; 2WD: 8F/8R; optional 12F/12R mechanical or 20F/20R creeper 8 forward / 8 reverse Max Travel Speed (Forward) 18.6 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch MFD: wet clutch (12x12 power shuttle); 2WD: wet clutch (8x8 power shuttle); optional dry clutch (12x12 mechanical shuttle) Dry clutch Differential Lock & Limited Slip Options Mechanical rear differential lock; MFD engagement electrohydraulic; limited-slip MFD front axle Mechanical rear differential lock; limited-slip MFD front axle ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Power steering Brakes Wet disc Wet disc Seat Suspension & Adjustability Mechanical contoured seat, adjustable; optional air-ride seat Not Published Front Axle Type 2WD or MFD with limited slip 2WD or MFD with limited slip Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 155.3 in MFD: 134.0 in; 2WD: 129.5 in Overall Width Not Published 67.5 in Wheelbase 2WD: 82.1 in; MFD: 83.6 in MFD: 77.7 in; 2WD: 77.5 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published MFD: 190.9 in; 2WD: 135.8 in Height to Top of ROPS Not Published MFD: 97.4 in; 2WD: 92.7 in Height to Top of ROPS (folded) Not Published 75.9 in Height to Top of Cab Model 2WD: 98 in; MFD: 100 in Not Published ▶ WeightTractor Weight (Base) 2WD Cab: 6,173 lb; 2WD Non-cab: 5,622 lb; MFD Cab: 6,834 lb; MFD Non-cab: 6,283 lb MFD: 5,060 lb; 2WD: 4,442 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R-1 (ag tread) bias ply standard; optional R-1W (ag tread) radial R1 agricultural (bar tread) or R4 industrial tread R1 Agricultural - Front 2WD: 9.5L-15; MFD: 11.2x24 MFD: 8.3x24; 2WD: 7.5x16 R1 Agricultural - Rear 2WD: 16.9R28; MFD: 16.9x30 (optional 16.9R28) MFD: 13.6x28; 2WD: 13.6x28 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published MFD: 12.5x18 R4 Industrial - Rear Not Published MFD: 18.4x24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Compatible loaders: L545, L555 Loader Model L610 L545; L555 Loader Lift Height 130.3 in L545: 106 in; L555: 105 in Loader Lift Capacity (Full Height) NSL: 1,828 lb; MSL: 3,153 lb L545 NSL: 1,565 lb; L545 MSL: 2,205 lb; L555 NSL: 1,940 lb; L555 MSL: 2,734 lb Loader Breakout Force Not Published L545: 3,131 lb; L555: 3,527 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
