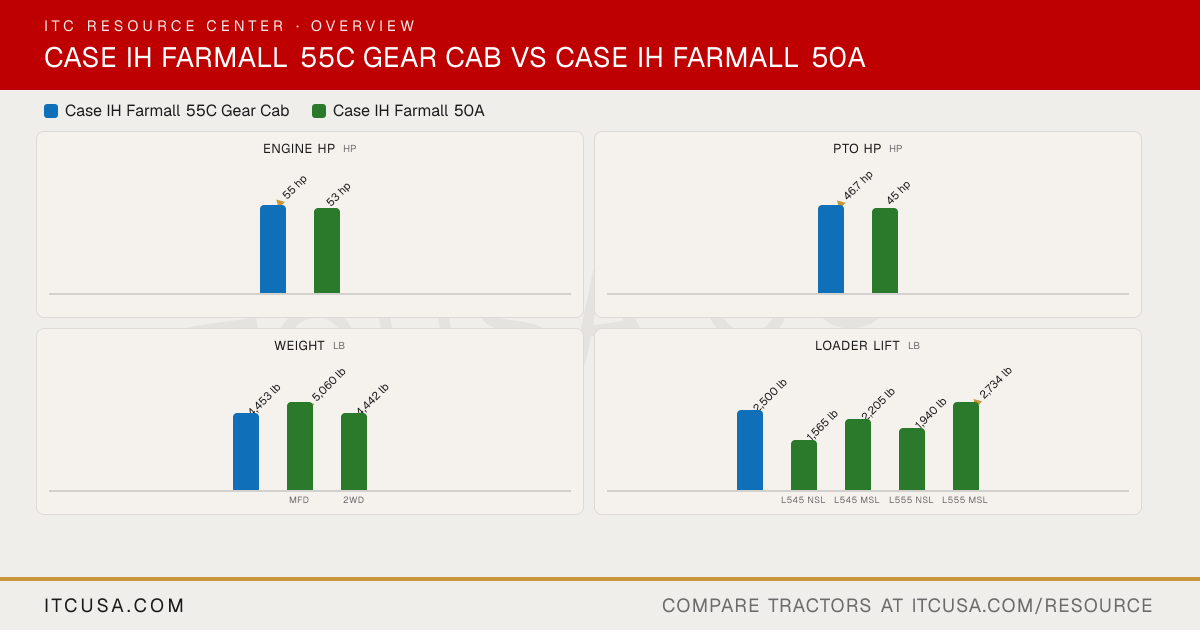

▶ EngineEngine Manufacturer LS Mtron FPT Engine Model L3C19-T Not Published Engine Type Diesel, 3-cylinder, turbocharged 3-cylinder, FPT turbocharged & aftercooled No. of Cylinders 3 3 Displacement 116 in³ 135.9 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 55 hp 53 hp PTO Power 46.7 hp 45 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Replaceable dry element Dry Fuel System Common rail direct injection Electronic high pressure common rail Alternator 70 A 75 A ▶ HydraulicsPump Type Not Published Engine-driven dual gear-type Implement Flow 8.2 gpm 11.9 gpm Steering Flow 4.2 gpm 5.5 gpm Total Hydraulic Flow Not Published 17.4 gpm (11.9 + 5.5, computed) Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 1 No. of Optional Remote Valves 2 2 ▶ Fluid CapacityFuel Tank Capacity 12.4 gal 17.2 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent rear PTO, electro-hydraulic engagement Independent PTO Rear 540 rpm 540 / 540E Mid-PTO Availability Optional, 2000 rpm Not Published Category, 3-Point Hitch Category 1 Category 1/2 Hitch Lift Capacity 2,756 lb Not Published Hitch Lift Capacity (at 24”) 2,469 lb 2,701 lb Lift Control Type Mechanical draft control (MDC) Mechanical Draft Control (MDC), top link sensing ▶ Transmission & DrivetrainTransmission Type 16 x 16 mechanical shuttle with synchro shift 8x8 mechanical shuttle (dry clutch) No. of Speeds 16 forward, 16 reverse 8 forward / 8 reverse Max Travel Speed (Forward) 16.9 mph Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch dry clutch Dry clutch Differential Lock & Limited Slip Options Mechanical rear differential lock Mechanical rear differential lock; limited-slip MFD front axle ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Power steering Brakes Wet multi-disc Wet disc Seat Suspension & Adjustability Adjustable suspension seat Not Published Front Axle Type Mechanical Front Drive (MFD) 2WD or MFD with limited slip Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 128.1 in MFD: 134.0 in; 2WD: 129.5 in Overall Width 69.1 in 67.5 in Wheelbase 73.2 in MFD: 77.7 in; 2WD: 77.5 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published MFD: 190.9 in; 2WD: 135.8 in Height to Top of ROPS 97.1 in MFD: 97.4 in; 2WD: 92.7 in Height to Top of ROPS (folded) 78.6 in 75.9 in Height to Top of Cab Model 93.3 in Not Published ▶ WeightTractor Weight (Base) 4,453 lb MFD: 5,060 lb; 2WD: 4,442 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Agricultural; R3 Turf; R4 Industrial R1 agricultural (bar tread) or R4 industrial tread R1 Agricultural - Front 9.5-16 MFD: 8.3x24; 2WD: 7.5x16 R1 Agricultural - Rear 13.6-24 MFD: 13.6x28; 2WD: 13.6x28 R3 Turf - Front 28x8.50-15 Not Published R3 Turf - Rear 41x14.00-20 Not Published R4 Industrial - Front 12-16.5 MFD: 12.5x18 R4 Industrial - Rear 17.5L-24 MFD: 18.4x24 ▶ Loader & AttachmentsQuick Attach Loader System Quick-Attach faceplate; quick-connect loader mounting (L360A) Compatible loaders: L545, L555 Loader Model L360A L545; L555 Loader Lift Height 112 in L545: 106 in; L555: 105 in Loader Lift Capacity (Full Height) 2,500 lb L545 NSL: 1,565 lb; L545 MSL: 2,205 lb; L555 NSL: 1,940 lb; L555 MSL: 2,734 lb Loader Breakout Force 3,114 lbf L545: 3,131 lb; L555: 3,527 lb ▶ WarrantyWarranty Length & Coverage 6-year (72-month) extended warranty: 2-year bumper-to-bumper plus 4 additional years powertrain Not Published
