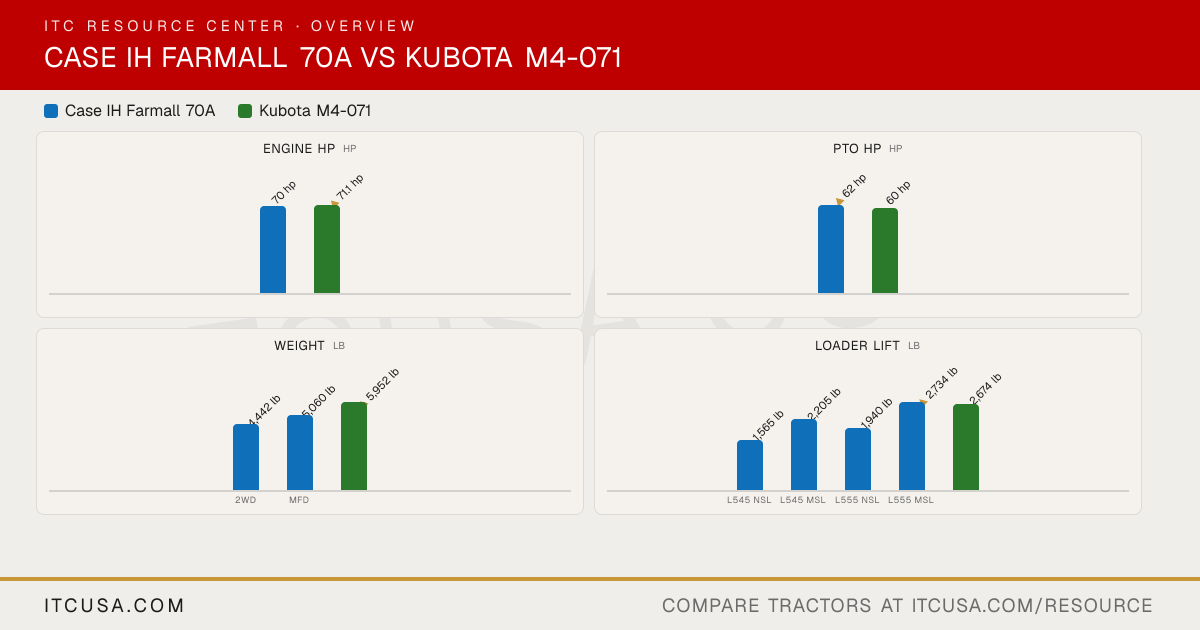

▶ EngineEngine Manufacturer FPT Kubota Engine Model R 753 IE4 V3307-CR-TE4 Engine Type 3-cylinder, FPT turbocharged & aftercooled 4-cylinder, turbocharged, common-rail diesel No. of Cylinders 3 4 Displacement 135.9 in³ 203 in³ Rated Engine Speed 2600 rpm 2400 rpm Engine Power (Gross) 70 hp 71.1 hp PTO Power 62 hp 60 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry Not Published Fuel System Electronic high pressure common rail Common rail direct injection Alternator 75 A 130 A ▶ HydraulicsPump Type Engine-driven dual gear-type Not Published Implement Flow 11.9 gpm 16.7 gpm Steering Flow 5.5 gpm 6.3 gpm Total Hydraulic Flow 17.4 gpm (11.9 + 5.5, computed) 23.0 gpm (16.7 + 6.3, computed) Overall Hydraulic Pump Flow Not Published 23.0 gpm (16.7 + 6.3, computed) Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 1 (SCD) No. of Optional Remote Valves 2 Max. 3 ▶ Fluid CapacityFuel Tank Capacity 17.2 gal 23.8 gal Coolant Capacity Not Published 10.6 qt Crankcase Capacity Not Published 12.7 qt Transmission / Hydraulic System Capacity Not Published 49.6 qt Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Live-independent PTO, electro-hydraulic clutch with brake PTO Rear 540 / 540E 540 rpm (540/540E optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I/II Category I / II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 2,701 lb 3,307 lb Lift Control Type Mechanical Draft Control (MDC), top link sensing Position, draft (top link sensing) and mixed control ▶ Transmission & DrivetrainTransmission Type 8x8 mechanical shuttle (dry clutch) Fully synchronized 6-speed main gear shift with electro-hydraulic shuttle, 12F/12R (option: 18F/18R with creep) No. of Speeds 8F/8R F12 / R12 (option: F18 / R18 with creep) Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Dry clutch Multiple wet disc Differential Lock & Limited Slip Options Mechanical rear differential lock; MFD engagement mechanical; limited-slip MFD front axle Front: limited-slip differential; Rear: mechanical differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Hydrostatic power steering Brakes Wet disc Hydraulic wet disc Seat Suspension & Adjustability Contoured seat, adjustable Not Published Front Axle Type 2WD or MFD with limited slip Bevel gear type (4WD, mechanical on-the-go 4WD clutch) Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Width 67.5 in 75.6 in Wheelbase 2WD: 77.5 in; MFD: 77.7 in 84.1 in Ground Clearance Not Published 18.1 in (front axle crop clearance) Min. Turn Radius without Brakes 2WD: 135.8 in; MFD: 190.9 in 11.8 ft Height to Top of ROPS 2WD: 92.7 in; MFD: 97.4 in Not Published Height to Top of ROPS (folded) 77 in Not Published Height to Top of Cab Model Not Published 101 in Overall Length 2WD: 129.5 in; MFD: 134.0 in 144 in ▶ WeightTractor Weight (Base) 2WD: 4,442 lb; MFD: 5,060 lb 5,952 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 (bar tread) 2WD or MFD; R4 (industrial tread) MFD Standard: 320/70R24 front, 420/75R34 rear R1 Agricultural - Front 2WD: 7.5x16; MFD: 8.3x24 320/70R24 R1 Agricultural - Rear 13.6x28 420/75R34 R3 Turf - Front Not Published 9.50-24 R3 Turf - Rear Not Published 18.4-26 R4 Industrial - Front MFD: 12.5x18 14-17.5 R4 Industrial - Rear MFD: 18.4x24 16.9-24 ▶ Loader & AttachmentsQuick Attach Loader System Compatible loaders: L545, L555 Not Published Loader Model L545; L555 LA1154A Loader Lift Height L545: 106 in; L555: 105 in LA1154A: 133.0 in (height position); 117.6 in (power position) Loader Lift Capacity (Full Height) L545 NSL: 1,565 lb; L545 MSL: 2,205 lb; L555 NSL: 1,940 lb; L555 MSL: 2,734 lb LA1154A: 2,674 lb (height position); 2,928 lb (power position) Loader Breakout Force L545: 3,131 lb; L555: 3,527 lb LA1154A: 4,079 lbf (height position); 5,128 lbf (power position) ▶ WarrantyWarranty Length & Coverage Not Published Basic 24 months or 2,000 hours, powertrain 36 months or 3,000 hours, all usage
