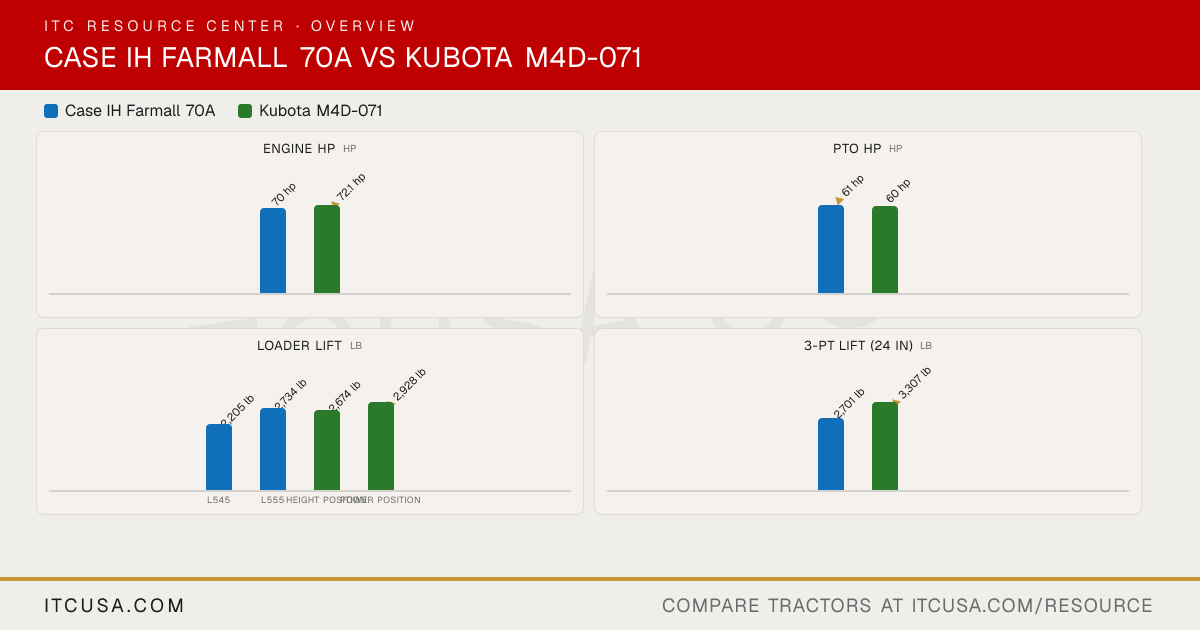

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
Case IHFarmall 70A
KubotaM4D-071
PTO Power
61 hp
60 hp
Alternator
Not Published
130 A, 12 V
Air Cleaner
Not Published
Not Published
Engine Type
Diesel, turbocharged & aftercooled (intercooled)
Liquid-cooled, diesel, 4-cylinder
Fuel System
Not Published
Common Rail System (CRS)
Displacement
134.3 in³
203.3 (3331)
No. of Cylinders
3
4
Rated Engine Speed
2600 rpm
2400 rpm
Cooling System Type
Not Published
Liquid-cooled
Engine Manufacturer
FPT Industrial
Kubota
Engine Power (Gross)
70 hp
72.1 hp
Engine Emissions Constraints
Tier 4
Not Published
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Applicable
Not Published
Warranty Length & Coverage
Not Published
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Not Published
Gear
Steering Flow
Not Published
6.3 gpm
Implement Flow
11.9 gpm
16.7 gpm
Total Hydraulic Flow
Not Published
23.0 gpm
Hydraulic System Type
Open center
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
Not Published
23.0 gpm
No. of Optional Remote Valves
2
Max. 3
No. of Standard Remote Valves
1
2 (SCD / FD)
PTO Rear
540 / 540E
540/540E rpm
PTO Type
Independent
Live-independent PTO, electro-hydraulic clutch with brake
Lift Control Type
Mechanical draft control (MDC) top link sensing
Position, draft (top link sensing) & mixed control
Hitch Lift Capacity
Not Published
Not Published
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I/II
I / II
Hitch Lift Capacity (at 24”)
2,701 lb
3307 lbs
R3 Turf - Rear
Not Published
Not Published
R3 Turf - Front
Not Published
Not Published
Tire Size & Options
Not Published
Standard tire size
R4 Industrial - Rear
Not Published
Not Published
R4 Industrial - Front
Not Published
Not Published
R1 Agricultural - Rear
Not Published
420/75R34
R1 Agricultural - Front
Not Published
320/70R24
Coolant Capacity
Not Published
Not Published
Crankcase Capacity
Not Published
Not Published
Fuel Tank Capacity
17.2 gal
23.8 gal
Front Axle Fluid Capacity
Not Published
Not Published
Transmission / Hydraulic System Capacity
Not Published
Not Published
Loader Lift Height
L545: 106 in; L555: 105 in
Height position: 133.0 in; Power position: 117.6 in
Loader Breakout Force
L545: up to 3,131 lb; L555: up to 3,527 lb
Not Published
Quick Attach Loader System
Not Published
LA1154A: 2-Lever Quick Coupler
Loader Lift Capacity (Full Height)
L545: up to 2,205 lb; L555: up to 2,734 lb
Height position: 2674 lb; Power position: 2928 lb
Clutch
Dry clutch
Multiple wet disc
No. of Speeds
8F/8R
F12/R12 (option: F18/R18 with creep)
Transmission Type
8x8 mechanical shuttle
12-speed electro-hydraulic shuttle (option: 18-speed with creep)
Max Travel Speed (Forward)
Not Published
Not Published
Max Travel Speed (Reverse)
Not Published
Not Published
Differential Lock & Limited Slip Options
Mechanical differential lock; limited slip front axle
Front limited slip differential; Rear differential lock (mechanical)
