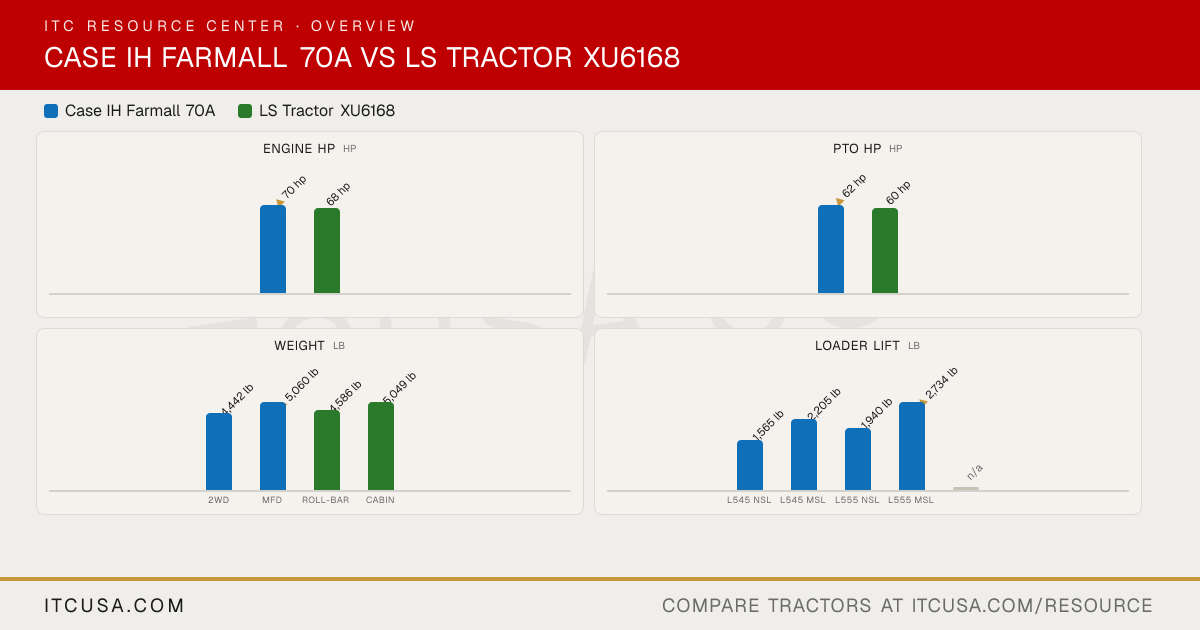

▶ EngineEngine Manufacturer FPT LS Mtron Engine Model Not Published L4C25-T2 Engine Type 3-cylinder, FPT turbocharged & aftercooled In-line vertical, Water cooled 4-cycle diesel, CRDI No. of Cylinders 3 4 Displacement 135.9 in³ 152.86 in³ Rated Engine Speed 2600 rpm 2500 rpm Engine Power (Gross) 70 hp 68 hp PTO Power 62 hp 60 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry Dry Fuel System Electronic high pressure common rail CRDI Alternator 75 A 70 A, 12 V ▶ HydraulicsPump Type Engine-driven dual gear-type Gear type, engine drive Implement Flow 11.9 gpm 9.9 gpm Steering Flow 5.5 gpm 4.6 gpm Total Hydraulic Flow 17.4 gpm (11.9 + 5.5, computed) 14.5 gpm Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 2 No. of Optional Remote Valves 2 Not Published ▶ Fluid CapacityFuel Tank Capacity 17.2 gal 21.1 gal Coolant Capacity Not Published 2.4 gal Crankcase Capacity Not Published 1.8 gal Transmission / Hydraulic System Capacity Not Published 12.4 gal Front Axle Fluid Capacity Not Published 2.6 gal ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 / 540E 540 (standard); 540 / 750 / 1,000 (optional 3-speed) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category 1/2 Category 2 Hitch Lift Capacity Not Published 4,079 lb Hitch Lift Capacity (at 24”) 2,701 lb 3,483 lb Lift Control Type Mechanical Draft Control (MDC), top link sensing Position and draft control ▶ Transmission & DrivetrainTransmission Type 8x8 mechanical shuttle (dry clutch) Synchro-shuttle (standard); Power shuttle (optional) No. of Speeds 8F/8R F16 x R16 (F32 x R16 with creeper, optional) Max Travel Speed (Forward) Not Published 17.99 mph Max Travel Speed (Reverse) Not Published 14.81 mph Clutch Dry clutch Dry single clutch (mechanical); wet clutch disks (power shuttle) Differential Lock & Limited Slip Options Mechanical rear differential lock; MFD engagement mechanical; limited-slip MFD front axle Mechanical pedal type differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic Hydrostatic Brakes Wet disc Wet disc Seat Suspension & Adjustability Contoured seat, adjustable Not Published Front Axle Type 2WD or MFD with limited slip Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 2WD: 129.5 in; MFD: 134.0 in 138.6 in Overall Width 67.5 in 70 in Wheelbase 2WD: 77.5 in; MFD: 77.7 in 80.3 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes 2WD: 135.8 in; MFD: 190.9 in 10.8 ft (with brake applied) Height to Top of ROPS 2WD: 92.7 in; MFD: 97.4 in 103 in Height to Top of ROPS (folded) 77 in Not Published Height to Top of Cab Model Not Published 100.6 in ▶ WeightTractor Weight (Base) 2WD: 4,442 lb; MFD: 5,060 lb Roll-bar: 4,586 lb; Cabin: 5,049 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 (bar tread) 2WD or MFD; R4 (industrial tread) MFD Ag 9.5-20 / 16.9-24; Industrial 10.5/80-18 / 19.5L-24; Turf 36x13.5-15 / 16.9-24 R1 Agricultural - Front 2WD: 7.5x16; MFD: 8.3x24 9.5-20 R1 Agricultural - Rear 13.6x28 16.9-24 R3 Turf - Front Not Published 36x13.5-15 R3 Turf - Rear Not Published 16.9-24 R4 Industrial - Front MFD: 12.5x18 10.5/80-18 R4 Industrial - Rear MFD: 18.4x24 19.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Compatible loaders: L545, L555 Not Published Loader Model L545; L555 LL5106 Loader Lift Height L545: 106 in; L555: 105 in LL5106: 116 in Loader Lift Capacity (Full Height) L545 NSL: 1,565 lb; L545 MSL: 2,205 lb; L555 NSL: 1,940 lb; L555 MSL: 2,734 lb Not Published Loader Breakout Force L545: 3,131 lb; L555: 3,527 lb LL5106: 4,556 lb ▶ WarrantyWarranty Length & Coverage Not Published 6-year / 1,500-hour limited powertrain warranty; 2-year / 750-hour bumper-to-bumper warranty
