Case IH Farmall 75C vs New Holland T4.75 | Side-by-side comparison | ITC Resource Center
Compare Tractors

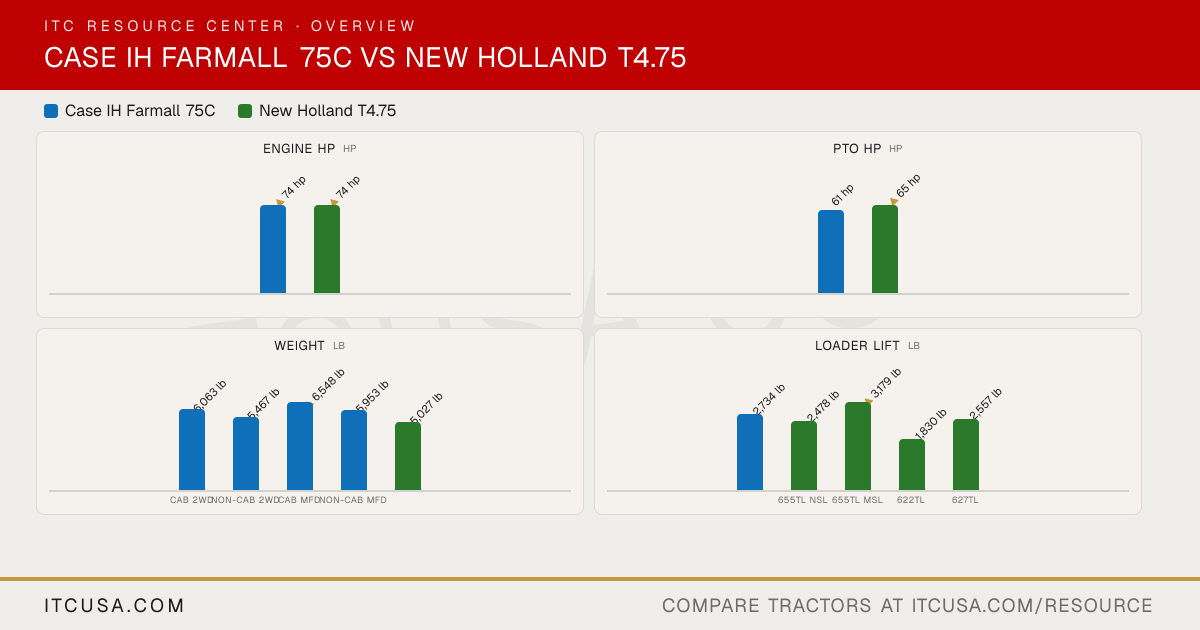

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
540 rpm at 1,958 engine rpm (standard); 540E at 1,592 engine rpm (optional)
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category I/II
Category II / I
Hitch Lift Capacity
Not Published
Not Published
Hitch Lift Capacity (at 24”)
3,956 lb
3,664 lb
Lift Control Type
Mechanical draft control (MDC), top link sensing
Mechanical draft control; top link draft sensing
Transmission Type
Standard: 12x12 power shuttle (wet clutch); Optional: 12x12 power shuttle (wet clutch) with creeper (20x20)
8x8 mechanical synchro shuttle (standard); 8x8 hydraulic power shuttle, 12x12 mechanical synchro shuttle or 12x12 hydraulic power shuttle (optional); creeper available with the power shuttle transmissions
No. of Speeds
Standard: 12 forward and 12 reverse; Optional creeper: 20 forward and 20 reverse
8F/8R (standard); 12F/12R (optional); 12F/12R or 20F/20R with creeper (optional)
