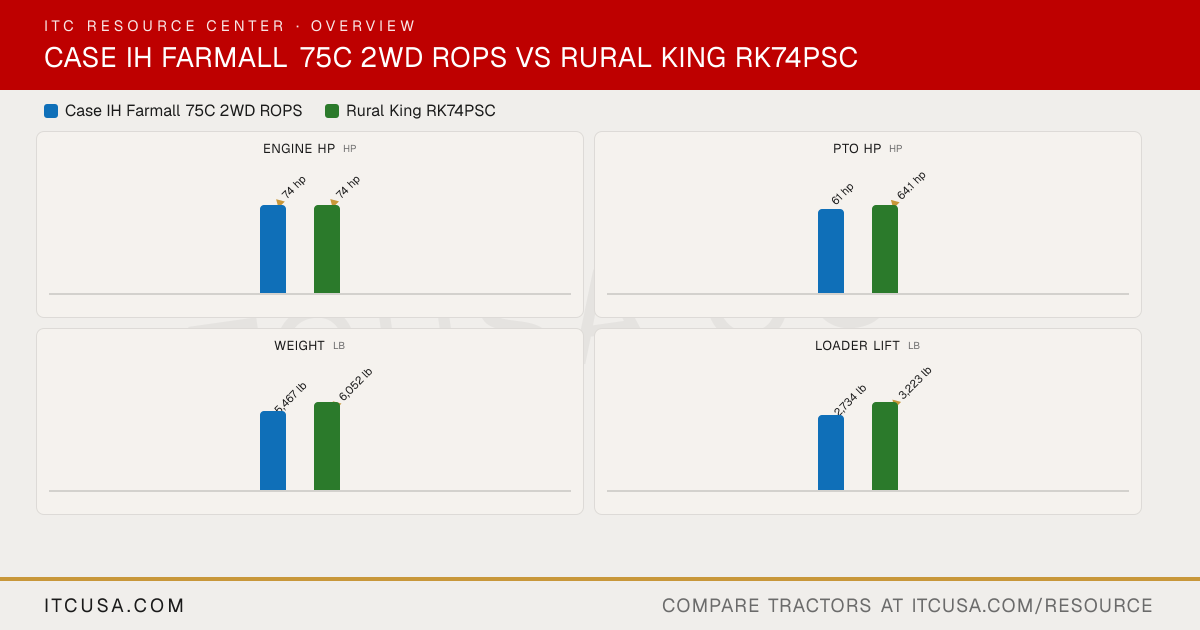

▶ EngineEngine Manufacturer FPT Deutz Engine Model F5DFL463A*F017 Deutz TCD2.9 L4 Engine Type Turbocharged diesel Turbocharged No. of Cylinders 4 4 Displacement 207 in³ 177.0 in³ Rated Engine Speed 2300 rpm 2200 rpm Engine Power (Gross) 74 hp 74 hp PTO Power 61 hp 64.1 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Not Published Air Cleaner Not Published Not Published Fuel System Common rail Common Rail Direct Injection Alternator Not Published 95 A, 12 V ▶ HydraulicsPump Type Dual gear pumps Not Published Implement Flow 12.9 gpm 10.3 gpm Steering Flow 7.3 gpm 5.8 gpm Total Hydraulic Flow Not Published 16.1 gpm Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 2 No. of Optional Remote Valves 3 3 ▶ Fluid CapacityFuel Tank Capacity 23.8 gal 23.8 gal Coolant Capacity Not Published 10.6 qt Crankcase Capacity Not Published 8.5 qt Transmission / Hydraulic System Capacity Not Published 18.0 gal Front Axle Fluid Capacity Not Published 17.4 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm (540/540E optional) 540/750 rpm Mid-PTO Availability Not Published No mid-PTO (N/A) Category, 3-Point Hitch Category I/II Category 2 Hitch Lift Capacity Not Published 5,115 lb Hitch Lift Capacity (at 24”) 3,956 lb 3,418 lb Lift Control Type Mechanical draft control (MDC), top link sensing Position/Draft/Mech ▶ Transmission & DrivetrainTransmission Type Standard: 12x12 power shuttle (wet clutch); Optional: 12x12 power shuttle (wet clutch) with creeper (20x20) 16F/16R Power Shuttle w/creeper No. of Speeds Standard: 12 forward / 12 reverse; Optional creeper: 20 forward / 20 reverse 16F/16R Max Travel Speed (Forward) Not Published 18.9 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Wet clutch Dry Single Differential Lock & Limited Slip Options Mechanical rear differential lock; limited-slip MFD front axle Differential lock, standard ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Brakes Hydraulic wet disc Wet Disc Seat Suspension & Adjustability Not Published High-back suspension seat with extension Front Axle Type 2WD: 2WD front axle; MFD: MFD with limited slip, electrohydraulic engagement Not Published Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 145.8 in 157.5 in Overall Width 76 in 76.4 in Wheelbase 2WD: 85.8 in; MFD: 84 in 86.1 in Ground Clearance Not Published 18.3 in Min. Turn Radius without Brakes Not Published 162.8 in Height to Top of ROPS 104.5 in Not Published Height to Top of ROPS (folded) 77.6 in Not Published Height to Top of Cab Model 98 in 103.3 in ▶ WeightTractor Weight (Base) 5,467 lb 6,052 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 18.4R34 rear Titan Tire & Wheels: R1 Ag (Std), R3 Turf (Opt), R4 Industrial (Opt) R1 Agricultural - Front Not Published 11.2x24 R1 Agricultural - Rear Not Published 16.9x30 R3 Turf - Front Not Published 12.0x20.5 R3 Turf - Rear Not Published 22.4x25.5 R4 Industrial - Front Not Published 15x9.5 R4 Industrial - Rear Not Published 18.4x24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model L565 L135SL Loader Lift Height 105 in 135.5 in Loader Lift Capacity (Full Height) 2,734 lb 3,223 lb Loader Breakout Force 3,527 lb 5,335 lbf ▶ WarrantyWarranty Length & Coverage Not Published Engine and power transmission devices: 36 months or 2000 hours; other parts: 24 months or 1500 hours (Tractor Non-Rental & Non-Commercial use)
