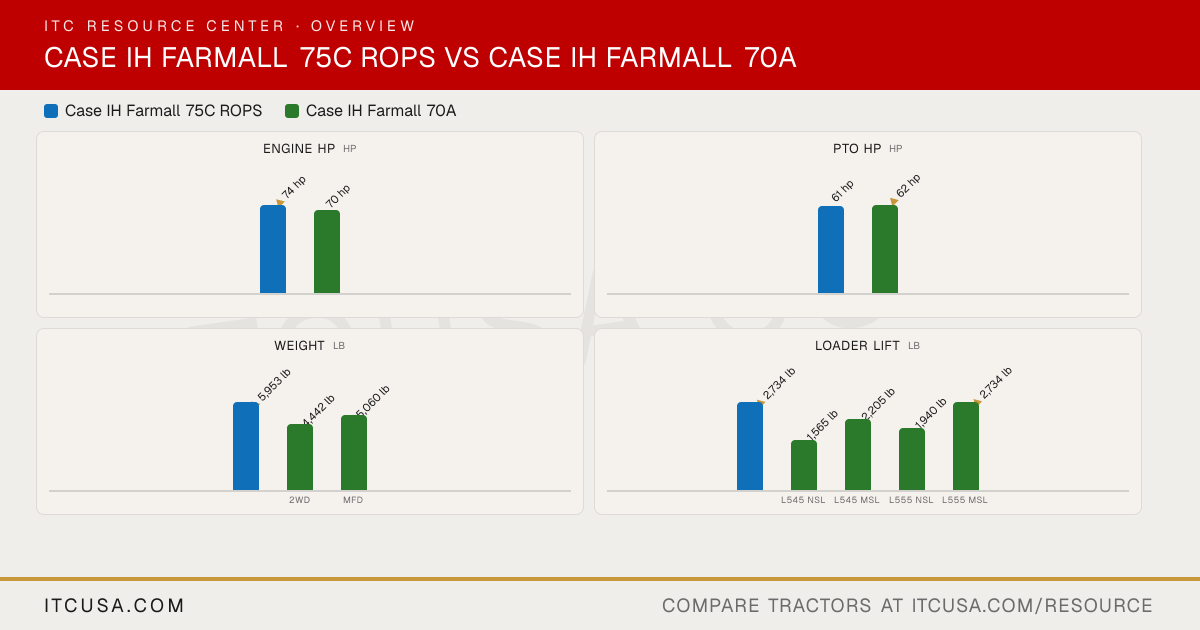

▶ EngineEngine Manufacturer FPT FPT Engine Model F5DFL463A*F017 Not Published Engine Type Turbocharged diesel 3-cylinder, FPT turbocharged & aftercooled No. of Cylinders 4 3 Displacement 207 in³ 135.9 in³ Rated Engine Speed 2300 rpm 2600 rpm Engine Power (Gross) 74 hp 70 hp PTO Power 61 hp 62 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Not Published Dry Fuel System Common rail Electronic high pressure common rail Alternator Not Published 75 A ▶ HydraulicsPump Type Dual gear pumps Engine-driven dual gear-type Implement Flow 12.9 gpm 11.9 gpm Steering Flow 7.3 gpm 5.5 gpm Total Hydraulic Flow Not Published 17.4 gpm (11.9 + 5.5, computed) Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 1 No. of Optional Remote Valves 3 2 ▶ Fluid CapacityFuel Tank Capacity 23.8 gal 17.2 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm (540/540E optional) 540 / 540E Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I/II Category 1/2 Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 3,956 lb 2,701 lb Lift Control Type Mechanical draft control (MDC), top link sensing Mechanical Draft Control (MDC), top link sensing ▶ Transmission & DrivetrainTransmission Type Standard: 12x12 power shuttle (wet clutch); Optional: 12x12 power shuttle (wet clutch) with creeper (20x20) 8x8 mechanical shuttle (dry clutch) No. of Speeds Standard: 12 forward / 12 reverse; Optional creeper: 20 forward / 20 reverse 8F/8R Max Travel Speed (Forward) Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Clutch Wet clutch Dry clutch Differential Lock & Limited Slip Options Mechanical rear differential lock; limited-slip MFD front axle Mechanical rear differential lock; MFD engagement mechanical; limited-slip MFD front axle ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Brakes Hydraulic wet disc Wet disc Seat Suspension & Adjustability Not Published Contoured seat, adjustable Front Axle Type 2WD: 2WD front axle; MFD: MFD with limited slip, electrohydraulic engagement 2WD or MFD with limited slip Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 145.8 in 2WD: 129.5 in; MFD: 134.0 in Overall Width 76 in 67.5 in Wheelbase 2WD: 85.8 in; MFD: 84 in 2WD: 77.5 in; MFD: 77.7 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published 2WD: 135.8 in; MFD: 190.9 in Height to Top of ROPS 104.5 in 2WD: 92.7 in; MFD: 97.4 in Height to Top of ROPS (folded) 77.6 in 77 in Height to Top of Cab Model 98 in Not Published ▶ WeightTractor Weight (Base) 5,953 lb 2WD: 4,442 lb; MFD: 5,060 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 18.4R34 rear R1 (bar tread) 2WD or MFD; R4 (industrial tread) MFD R1 Agricultural - Front Not Published 2WD: 7.5x16; MFD: 8.3x24 R1 Agricultural - Rear Not Published 13.6x28 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published MFD: 12.5x18 R4 Industrial - Rear Not Published MFD: 18.4x24 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Compatible loaders: L545, L555 Loader Model L565 L545; L555 Loader Lift Height 105 in L545: 106 in; L555: 105 in Loader Lift Capacity (Full Height) 2,734 lb L545 NSL: 1,565 lb; L545 MSL: 2,205 lb; L555 NSL: 1,940 lb; L555 MSL: 2,734 lb Loader Breakout Force 3,527 lb L545: 3,131 lb; L555: 3,527 lb ▶ WarrantyWarranty Length & Coverage Not Published Not Published
