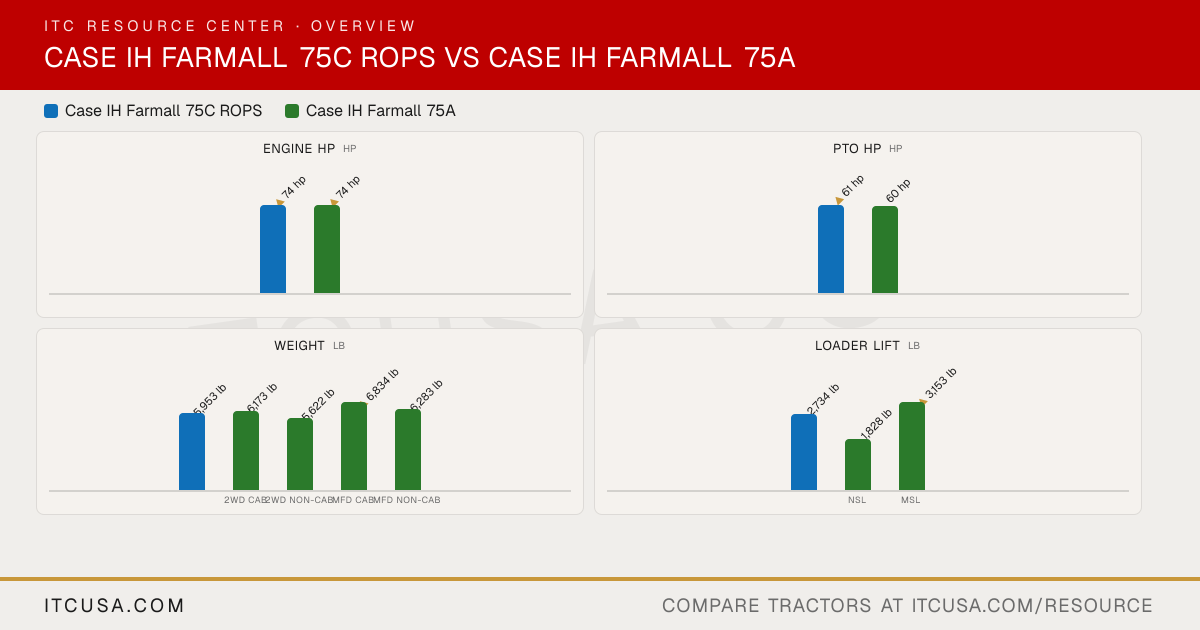

▶ EngineEngine Manufacturer FPT FPT Engine Model F5DFL463A*F017 Not Published Engine Type Turbocharged diesel 3-cylinder, FPT turbocharged & aftercooled diesel, Tier 4 B/Final No. of Cylinders 4 3 Displacement 207 in³ 178.8 in³ Rated Engine Speed 2300 rpm 2300 rpm Engine Power (Gross) 74 hp 74 hp PTO Power 61 hp 60 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Not Published Liquid-cooled Air Cleaner Not Published Not Published Fuel System Common rail Electronic high pressure common rail Alternator Not Published 120 A ▶ HydraulicsPump Type Dual gear pumps Fixed displacement Implement Flow 12.9 gpm 12.6 gpm Steering Flow 7.3 gpm Not Published Total Hydraulic Flow Not Published Not Published Overall Hydraulic Pump Flow Not Published Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 2 No. of Optional Remote Valves 3 3 ▶ Fluid CapacityFuel Tank Capacity 23.8 gal 21.7 gal Coolant Capacity Not Published Not Published Crankcase Capacity Not Published Not Published Transmission / Hydraulic System Capacity Not Published Not Published Front Axle Fluid Capacity Not Published Not Published ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm (540/540E optional) 540 (standard); 540/540E (optional) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category I/II Category 1/2 Hitch Lift Capacity Not Published 5,952 lb (optional hitch 6,614 lb) Hitch Lift Capacity (at 24”) 3,956 lb 4,300 lb (optional hitch 4,740 lb) Lift Control Type Mechanical draft control (MDC), top link sensing Mechanical Draft Control (MDC), top link sensing ▶ Transmission & DrivetrainTransmission Type Standard: 12x12 power shuttle (wet clutch); Optional: 12x12 power shuttle (wet clutch) with creeper (20x20) MFD: 12x12 power shuttle (wet clutch); 2WD: 8x8 power shuttle (wet clutch); optional 12x12 with creeper (20x20) No. of Speeds Standard: 12 forward / 12 reverse; Optional creeper: 20 forward / 20 reverse MFD: 12F/12R; 2WD: 8F/8R; optional 20F/20R creeper Max Travel Speed (Forward) Not Published 18.6 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Wet clutch MFD: wet clutch (12x12 power shuttle); 2WD: wet clutch (8x8 power shuttle) Differential Lock & Limited Slip Options Mechanical rear differential lock; limited-slip MFD front axle Mechanical rear differential lock; MFD engagement electrohydraulic; limited-slip MFD front axle ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Hydrostatic power steering Hydrostatic Brakes Hydraulic wet disc Wet disc Seat Suspension & Adjustability Not Published Mechanical contoured seat, adjustable; optional air-ride seat Front Axle Type 2WD: 2WD front axle; MFD: MFD with limited slip, electrohydraulic engagement 2WD or MFD with limited slip Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 145.8 in 155.3 in Overall Width 76 in Not Published Wheelbase 2WD: 85.8 in; MFD: 84 in 2WD: 82.1 in; MFD: 83.6 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 104.5 in Not Published Height to Top of ROPS (folded) 77.6 in 67.7 in Height to Top of Cab Model 98 in 2WD: 98 in; MFD: 100 in ▶ WeightTractor Weight (Base) 5,953 lb 2WD Cab: 6,173 lb; 2WD Non-cab: 5,622 lb; MFD Cab: 6,834 lb; MFD Non-cab: 6,283 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options 18.4R34 rear R-1 (ag tread) bias ply standard; optional R-1W (ag tread) radial R1 Agricultural - Front Not Published 2WD: 9.5L-15; MFD: 11.2x24 R1 Agricultural - Rear Not Published 2WD: 16.9R28; MFD: 16.9x30 (optional 16.9R28) R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model L565 L610 Loader Lift Height 105 in 130.3 in Loader Lift Capacity (Full Height) 2,734 lb NSL: 1,828 lb; MSL: 3,153 lb Loader Breakout Force 3,527 lb Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
