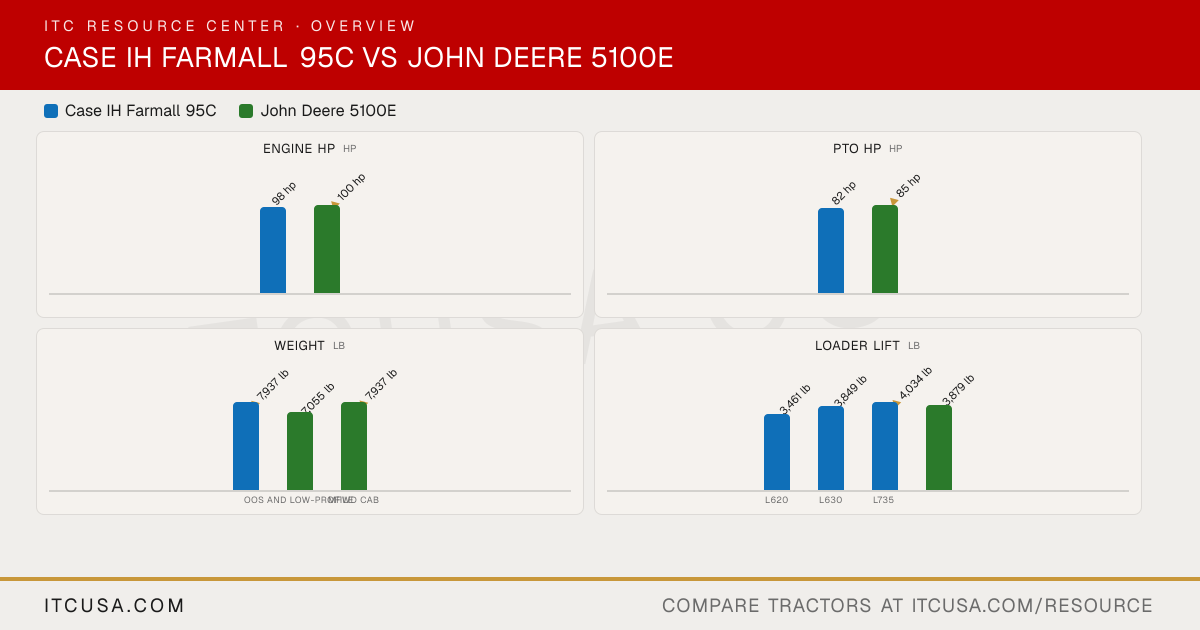

▶ EngineEngine Manufacturer FPT John Deere Engine Model F5D PowerTech PWL 4045 Engine Type Turbocharged and intercooled 4-cylinder diesel Diesel, turbocharged, aftercooled No. of Cylinders 4 4 Displacement 207 in³ 276 in³ Rated Engine Speed 2300 rpm 2400 rpm Engine Power (Gross) 98 hp 100 hp PTO Power 82 hp 85 hp Engine Emissions Constraints Tier 4A Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dual dry element Dry type with safety element Fuel System Electronic high-pressure common-rail fuel injection High Pressure Common Rail Alternator 120 A OOS: 90 A; Cab: 120 A ▶ HydraulicsPump Type Dual engine-driven pumps (open center) Tandem gear pump (implement + steering) Implement Flow 12.5 gpm (16.9 gpm optional) 15.9 gpm Steering Flow 7.3 gpm 6.6 gpm Total Hydraulic Flow 19.8 gpm (12.5 + 7.3, computed) 22.5 gpm Overall Hydraulic Pump Flow 19.8 gpm (12.5 + 7.3, computed) 22.5 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 1 2 No. of Optional Remote Valves 2 (3rd remote available through Parts Division) 3 ▶ Fluid CapacityFuel Tank Capacity 30.3 gal OOS: 25 gal; Cab: 30 gal Coolant Capacity Not Published Cab: 3 gal; OOS: 2.5 gal Crankcase Capacity Not Published 3.2 gal (with filter) Transmission / Hydraulic System Capacity Not Published 11.5 gal Front Axle Fluid Capacity Not Published MFWD differential housing: 1.3 gal; MFWD wheel hub (each): 0.74 qt ▶ PTO & HitchPTO Type Independent, mechanical engagement Independent, electrohydraulic engagement PTO Rear 540/1000 (base); 540 (optional) 540/540E rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II (ball ends convert to Category I) Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 5,620 lb 4,630 lb Lift Control Type Single-lever position control with draft-sensing top link Top link draft sensing; mechanical hitch controls ▶ Transmission & DrivetrainTransmission Type Not Published PowrReverser No. of Speeds 12F/12R mechanical (20F/12R mechanical with creeper; 12F/12R power shuttle; 20F/20R optional) 12F/12R (standard); 24F/12R (optional) Max Travel Speed (Forward) Not Published 12F/12R: 21.7 mph; 24F/12R: 24.9 mph (electronically limited) Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Wet traction clutch Differential Lock & Limited Slip Options Mechanical rear differential lock Pedal-operated differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Wet disc (mechanical on ROPS, hydraulic on cab) Hydraulic wet disc brakes, self-equalizing and self-adjusting Seat Suspension & Adjustability Air suspension seat with 15-degree swivel (optional, cab) Not Published Front Axle Type 2WD or MFD Mechanical front wheel drive (MFWD) Front Axle Rating Not Published 6,615 lb Drawbar Capacity Not Published Standard: 2,755 lb; 2,425 lb (350 and 15.7 in extended). Heavy-Duty: 3,195 lb; 2,645 lb (350 and 15.7 in extended) ▶ Dimensions & ManeuverabilityOverall Width 83 in Not Published Wheelbase 89 in (MFD) 92.5 in Ground Clearance Not Published ROPS: 17 in; Cab: 15.2 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 103 in 100.8 in Height to Top of ROPS (folded) Not Published 78.6 in Height to Top of Cab Model 100 in 101.2 in Overall Length 149 in (MFD cab, 16.9R-34 rear tires) 159.13 in ▶ WeightTractor Weight (Base) 7,937 lb (MFD cab, 16.9R-34 rear tires) OOS: 7,275 lb (shipping weight); Cab: 8,150 lb (shipping weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published Not Published R1 Agricultural - Front Not Published 12.4-24 R1 Agricultural - Rear 16.9R-34 18.4-30 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published 12.5/80-18 R4 Industrial - Rear Not Published 19.5L-24 ▶ Loader & AttachmentsQuick Attach Loader System Skid steer-style quick attach (hydraulic coupler) 520M; 540M Loader Model L620; L630; L735 520M and 540M (previously H240 and H260) Loader Lift Height L620: 126.3 in (NSL) / 125.9 in (MSL); L630: 134 in (NSL) / 135 in (MSL); L735: 137 in 520M MSL: 132.0 in Loader Lift Capacity (Full Height) L620: 3,461 lb (NSL) / 3,573 lb (MSL); L630: 3,849 lb (NSL) / 4,204 lb (MSL); L735: 4,034 lb (NSL) / 3,505 lb (MSL) (maximum height at pins) 520M MSL: 2,606 lb (to maximum height, measured at pivot) Loader Breakout Force L620: 5,530 lb (NSL) / 5,483 lb (MSL); L630: 6,649 lb (NSL) / 6,767 lb (MSL); L735: 4,960 lb (NSL) / 4,122 lb (MSL) (breakout at pins) 520M MSL: 4,793 lb (measured at pivot) ▶ WarrantyWarranty Length & Coverage Not Published Not Published
