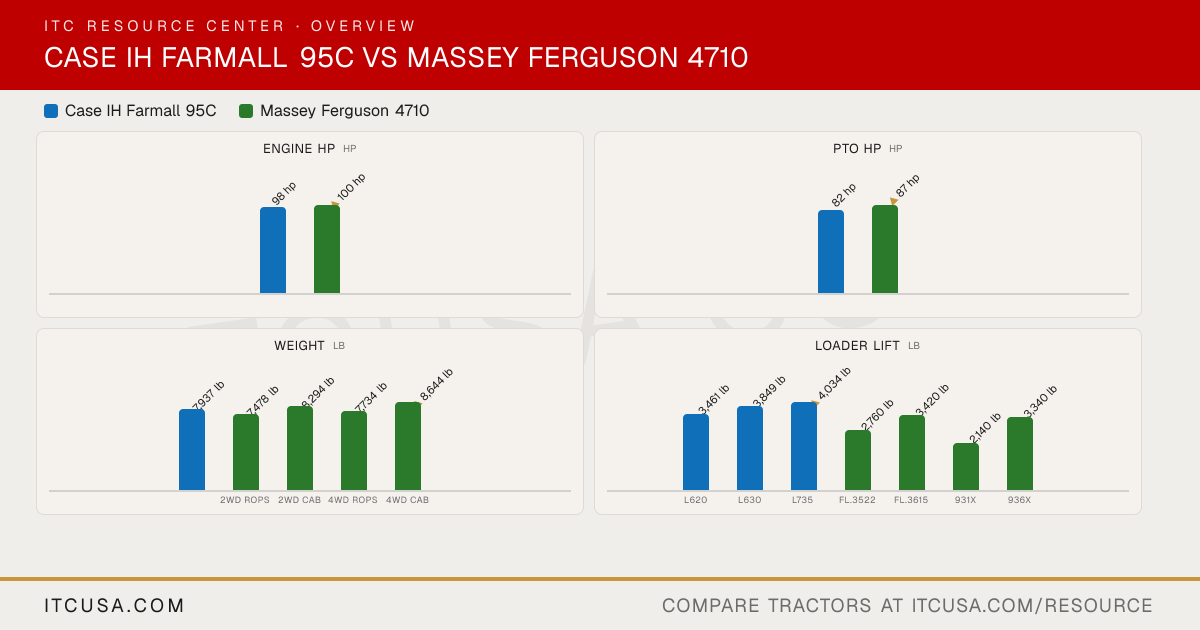

▶ EngineEngine Manufacturer FPT AGCO Power Engine Model F5D 33 AWIC Engine Type Turbocharged and intercooled 4-cylinder diesel 3-cylinder, intercooled turbocharged diesel No. of Cylinders 4 3 Displacement 207 in³ 201 in³ Rated Engine Speed 2300 rpm 2200 rpm Engine Power (Gross) 98 hp 100 hp PTO Power 82 hp 87 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid cooled Air Cleaner Dual dry element Dual element (primary and secondary) Fuel System Electronic high-pressure common rail direct injection High-pressure common rail direct fuel injection Alternator 120 A 80 A ▶ HydraulicsPump Type Dual engine-driven pumps (open center) Two-stage pump Implement Flow 12.5 gpm (16.9 gpm optional) Not Published Steering Flow 7.3 gpm Not Published Total Hydraulic Flow 19.8 gpm (12.5 + 7.3, computed) Not Published Overall Hydraulic Pump Flow 19.8 gpm (12.5 + 7.3, computed) Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 17.2 gpm No. of Standard Remote Valves 1 2 No. of Optional Remote Valves 2 (3rd remote available through Parts Division) 1 ▶ Fluid CapacityFuel Tank Capacity 30.3 gal 33 gal Coolant Capacity Not Published 4.2 gal Crankcase Capacity Not Published 3.3 gal Transmission / Hydraulic System Capacity Not Published Power Shuttle: 10.6 to 11.4 gal; Mechanical: 8.5 to 9.2 gal Front Axle Fluid Capacity Not Published Dana: 1.45 gal beam plus 0.24 gal per final drive; Carraro: 1.3 gal beam plus 0.21 gal per final drive ▶ PTO & HitchPTO Type Independent, mechanical engagement Independent, electrohydraulic engagement PTO Rear 540/1000 (base); 540 (optional) 540/540E standard; 540/1000 optional Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category II (ball ends convert to Category I) Category II Hitch Lift Capacity Not Published Not Published Hitch Lift Capacity (at 24”) 5,620 lb 4,850 lb Lift Control Type Single-lever position control with draft-sensing top link Not Published ▶ Transmission & DrivetrainTransmission Type Not Published 12x12 fully synchronized power shuttle, 6 gears x 2 ranges, electrohydraulic shuttle lever; optional Dyna-2 24x24 powershift No. of Speeds 12F/12R (20F/12R or 20F/20R with creeper optional) 12 forward and 12 reverse; 24 forward and 24 reverse with optional Dyna-2 Max Travel Speed (Forward) Not Published 25 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Multidisc wet clutch with easy shift knob and electrohydraulic power shuttle lever Differential Lock & Limited Slip Options Mechanical rear differential lock Hydraulic with electronic control, rear axle engaged via electrohydraulic rocker switch; 4WD front axle Hydra-Lock ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Cab: tilt and telescopic steering column; Platform: tilt steering column Brakes Wet disc (mechanical on ROPS, hydraulic on cab) Hydraulic multidisc brakes with mechanical parking brake, independently controlled via foot pedals Seat Suspension & Adjustability Air suspension seat with 15-degree swivel (optional, cab) Cab: mechanical swiveling seat with armrests, air-ride swivel seat optional; Platform: mechanical spring suspension seat with armrests Front Axle Type 2WD or MFD (mechanical front drive) Heavy-duty 2WD or 4WD front axle Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 149 in (MFD cab, 16.9R-34 rear tires) Not Published Overall Width 83 in 60.3 in (minimum, with std. 420/85R30 rear tires) Wheelbase 89 in (MFD) 88.5 in Ground Clearance Not Published Not Published Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 103 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 100 in Not Published ▶ WeightTractor Weight (Base) 7,937 lb (MFD cab, 16.9R-34 rear tires) 2WD ROPS: 7,478 lb; 2WD Cab: 8,294 lb; 4WD ROPS: 7,734 lb; 4WD Cab: 8,644 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Not Published 2WD: 9.5L-15 front, 420/85R34 rear; 4WD: 340/85R24 front, 420/85R34 rear R1 Agricultural - Front Not Published 2WD: 9.5L-15; 4WD: 340/85R24 R1 Agricultural - Rear 16.9R-34 420/85R34 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front Not Published Not Published R4 Industrial - Rear Not Published Not Published ▶ Loader & AttachmentsQuick Attach Loader System Skid steer-style quick attach (hydraulic coupler) 931X and 936X: universal skid steer type quick release Loader Model L620; L630; L735 FL.3522, FL.3615, 931X, 936X Loader Lift Height L620: 126.3 in (NSL) / 125.9 in (MSL); L630: 134 in (NSL) / 135 in (MSL); L735: 137 in FL.3522: 140 in; FL.3615: 140 in; 931X: 136 in; 936X: 136 in (at pivot pin) Loader Lift Capacity (Full Height) L620: 3,461 lb (NSL) / 3,573 lb (MSL); L630: 3,849 lb (NSL) / 4,204 lb (MSL); L735: 4,034 lb (NSL) / 3,505 lb (MSL) FL.3522: 2,760 lb; FL.3615: 3,420 lb; 931X: 2,140 lb; 936X: 3,340 lb (to full height, at 31.5 in forward of pivot pin) Loader Breakout Force L620: 5,530 lb (NSL) / 5,483 lb (MSL); L630: 6,649 lb (NSL) / 6,767 lb (MSL); L735: 4,960 lb (NSL) / 4,122 lb (MSL) Not Published ▶ WarrantyWarranty Length & Coverage Not Published Not Published
