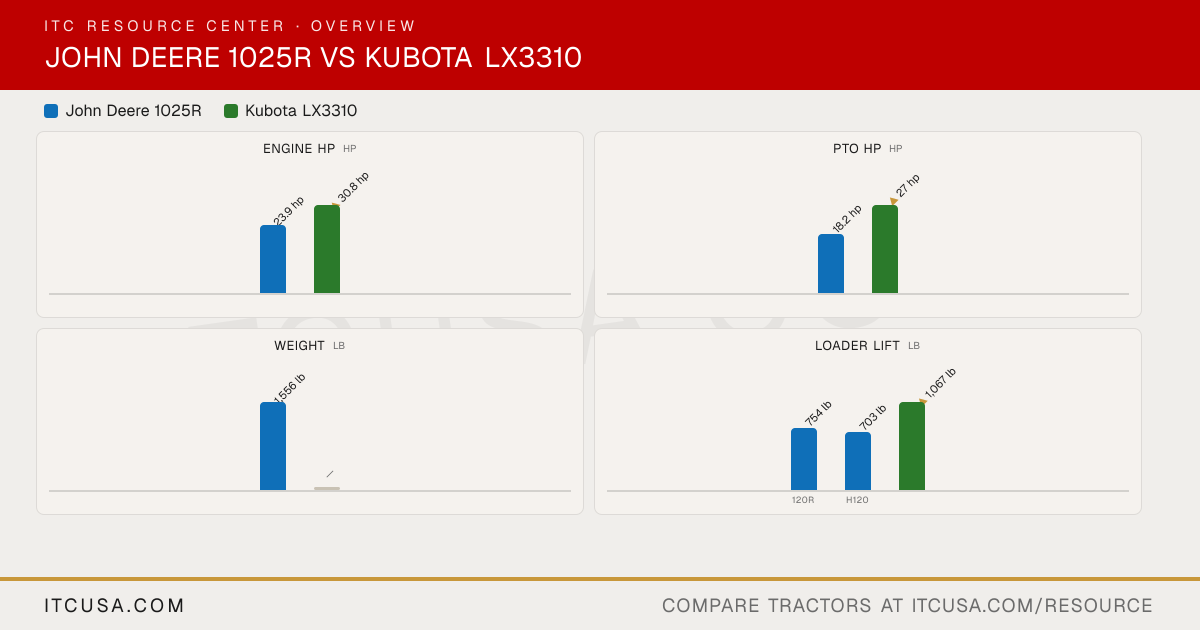

▶ EngineEngine Manufacturer Yanmar Kubota Engine Model 3TNV80F-CJT V1505-CR-TE5-D36R1 Engine Type 3-cylinder, liquid-cooled diesel E-CDIS, liquid cooled, 4-cylinder, diesel No. of Cylinders 3 4 Displacement 77.3 in³ 91.5 in³ Rated Engine Speed 3200 rpm 2500 rpm Engine Power (Gross) 23.9 hp 30.8 hp PTO Power 18 hp 27 hp Engine Emissions Constraints Tier 4 Not Published Cooling System Type Liquid-cooled Pressurized radiator Air Cleaner Dry with safety element 6.0 in Dual paper element Fuel System Indirect injection Common Rail System (CRS) Alternator 40 A, 12 V 60 A, 12 V ▶ HydraulicsPump Type Gear Dual pump Implement Flow 3.5 gpm 5.0 gpm Steering Flow 3.5 gpm 3.7 gpm Total Hydraulic Flow 7 gpm 8.7 gpm Overall Hydraulic Pump Flow 6.3 gpm 8.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow 3.5 gpm implement circuit; total 7 gpm Not Published No. of Standard Remote Valves Not Published None No. of Optional Remote Valves Not Published Optional, up to 2 ▶ Fluid CapacityFuel Tank Capacity 6.3 gal 7.1 gal Coolant Capacity 3.9 qt 4.5 qt Crankcase Capacity 2.9 qt 5.0 qt Transmission / Hydraulic System Capacity 3.25 gal 4.0 gal Front Axle Fluid Capacity 3.0 qt 5.0 qt ▶ PTO & HitchPTO Type Independent Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Standard, 2100 rpm 2500 rpm Category, 3-Point Hitch Limited Category I Category I Hitch Lift Capacity 1,177 lb 2,139 lb Hitch Lift Capacity (at 24”) 758 lb 1,676 lb Lift Control Type Position control Position control valve ▶ Transmission & DrivetrainTransmission Type Hydrostatic - 2 range Hydrostatic transmission No. of Speeds Infinite (hydrostatic), 2 ranges forward and reverse 3 ranges Max Travel Speed (Forward) 9.1 mph 13.6 mph Max Travel Speed (Reverse) 9.1 mph 10.3 mph Clutch wet disc Not Applicable Differential Lock & Limited Slip Options Standard rear differential lock Differential lock standard ▶ Chassis, Steering & ControlsFrame Type Semi-flat platform; two-post folding ROPS; four-wheel drive Not Published Steering Power steering Hydraulic power steering Brakes Wet disk, left-hand pedal Multi-plate wet disc Seat Suspension & Adjustability Deluxe suspension seat with armrests and tilt steering wheel Deluxe high-back suspension seat Front Axle Type 4WD (MFWD), on-the-go engagement Not Published Front Axle Rating 1,349 lb Not Published Drawbar Capacity 2,165 lb 1,100 lb ▶ Dimensions & ManeuverabilityOverall Width 47.22 in (R3 tires); 47.32 in (R4 tires) 53.7 in Wheelbase 57.1 in 65.6 in Ground Clearance 7.7 in (front axle) 14.6 in Min. Turn Radius without Brakes 7.4 ft (no brakes, no MFWD) 6.9 ft (with brake applied) Height to Top of ROPS 90 in (ROPS extended, R4 tires) 88.4 in Height to Top of ROPS (folded) 73 in Not Published Height to Top of Cab Model Not Published Not Applicable Overall Length 108 in 101.8 in (without 3-point hitch) ▶ WeightTractor Weight (Base) 1,556 lb 2,072 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Standard R4, optional R3 R1 Agricultural, R3 Turf, R4 Industrial, R14 R1 Agricultural - Front Not Published 7-12 R1 Agricultural - Rear Not Published 12.4-16 R3 Turf - Front 18x8.5-10 24x8.50-14 R3 Turf - Rear 26x12-12 13.6-16 R4 Industrial - Front 18x8.5-10 23X8.50-14 / 25X8.50-14 R4 Industrial - Rear 26x12-12 12.4-16 / 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Tool-free attach and park (MSL optional on 120R) LA535: 2-lever quick coupler, standard; Swift-Tach, optional Loader Model 120R (MSL or NSL); 120E (NSL only) LA535 Loader Lift Height 120R: 72 in; 120E: 71.2 in 84 in Loader Lift Capacity (Full Height) 120R (MSL): 680 lb; 120E (NSL): 519 lb (at 19.7 in ahead of pivot) 1,067 lb Loader Breakout Force Not Published 2,245 lb ▶ WarrantyWarranty Length & Coverage Powertrain 6 years, standard at no cost, covers residential and commercial use Residential: basic 24 months or 1,500 hours, powertrain 72 months or 2,000 hours; commercial: basic 24 months or 1,500 hours, powertrain 36 months or 2,000 hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
