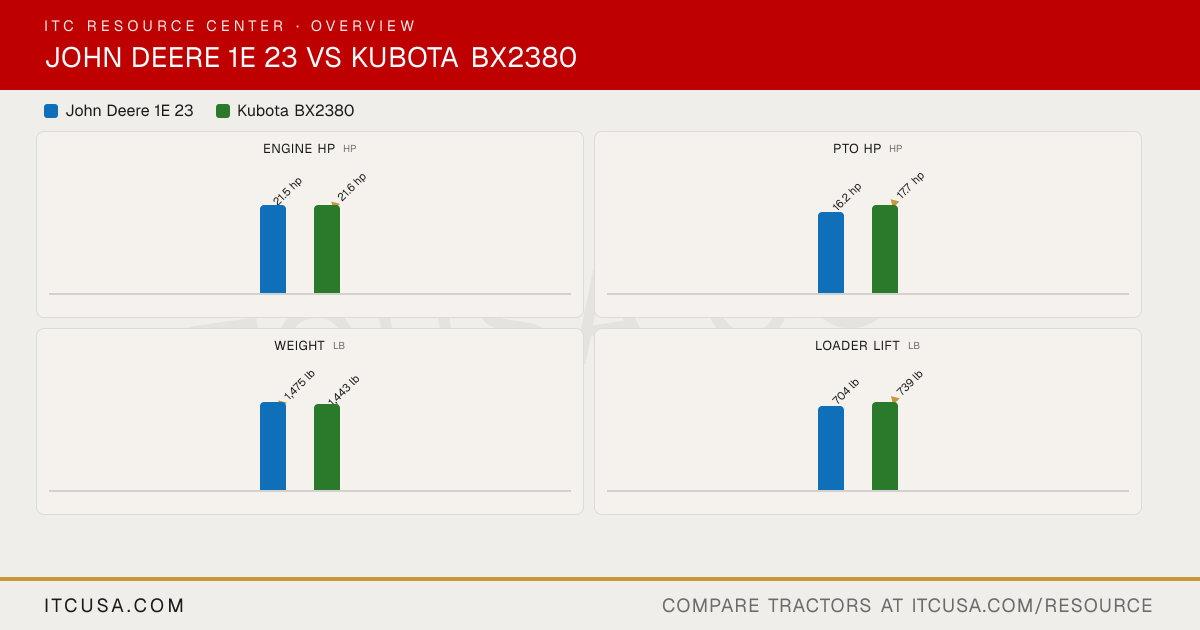

▶ EngineEngine Manufacturer Yanmar Kubota Engine Model 3TNM74F-NCJT D902 Engine Type Diesel Liquid cooled, 4-cycle, diesel No. of Cylinders 3 3 Displacement 60.6 in³ 54.8 in³ Rated Engine Speed 3200 rpm 3200 rpm Engine Power (Gross) 21.5 hp 21.6 hp PTO Power 16.2 hp 17.7 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Water with pressurized radiator, reverse air-flow design Air Cleaner Not Published Dry element Fuel System Not Published Direct injection Alternator Not Published 40 A, 12 V ▶ HydraulicsPump Type Gear Open center tandem pump gear type Implement Flow 3.5 gpm 5.2 gpm Steering Flow 3.5 gpm 1.0 gpm Total Hydraulic Flow 7 gpm 6.2 gpm Overall Hydraulic Pump Flow 7 gpm 6.2 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 0 standard (2-valve rear remote coupler optional) No. of Optional Remote Valves Not Published 2 (optional; ISO 7241-1 series A or B) ▶ Fluid CapacityFuel Tank Capacity 5.57 gal 6.6 gal Coolant Capacity Not Published 3.3 qt Crankcase Capacity Not Published 3.5 qt Transmission / Hydraulic System Capacity Not Published 3.0 gal Front Axle Fluid Capacity Not Published 3.8 qt ▶ PTO & HitchPTO Type Independent Live independent PTO (with hydraulic clutch) PTO Rear 540 rpm STD (540 rpm) Mid-PTO Availability Standard, 2100 rpm STD (2500 rpm) Category, 3-Point Hitch Limited Category 1 SAE Category I Optional Hitch Lift Capacity Not Published 1,213 lb Hitch Lift Capacity (at 24”) 758 lb 680 lb Lift Control Type Select control Quarter-inching valve ▶ Transmission & DrivetrainTransmission Type Hydrostatic - 2 range Hydrostatic transmission No. of Speeds Infinite (hydrostatic), 2 ranges forward and reverse 2 Range (Low-High) Max Travel Speed (Forward) 9.1 mph 8.4 mph Max Travel Speed (Reverse) 9.1 mph 6.5 mph Clutch Not Published Dry type single plate - Main clutch 9.45 in. Differential Lock & Limited Slip Options Not Published Rear differential lock standard ▶ Chassis, Steering & ControlsFrame Type Foldable ROPS, standard equipment Two-post foldable ROPS Steering Power steering Integral power steering Brakes Wet disc, left-hand pedal Mechanical, wet disc type Seat Suspension & Adjustability Deluxe suspension seat with high back and adjustable settings; no tilt steering High-back deluxe seat with armrests; fore/aft slide and backrest tilt adjustment Front Axle Type Four-wheel drive (mechanical front-wheel drive) 4WD: Bevel gear front axle, non-adjustable tread spacing Front Axle Rating Not Published Not Published Drawbar Capacity Not Published Max. drawbar load @ hitch: 550 lb. ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch Not Published 95.5 in Overall Width 47.22 in (R3 tires); 47.32 in (R4 tires) 45.1 in Wheelbase 57.1 in 55.1 in Ground Clearance Not Published 6.5 in (minimum; 8.4 in at front axle) Min. Turn Radius without Brakes Not Published 7.5 ft Height to Top of ROPS Not Published 83.1 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) Approx. 1,475 lb (shipping weight, open station) 1443 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R3 Turf, R3 Hybrid, or R4 Industrial R1 Agricultural, R3 Turf, R4 Industrial R1 Agricultural - Front Not Published 18X8.5-10 R1 Agricultural - Rear Not Published 26X12-12 R3 Turf - Front 18x8.50-10 18X8.5-10 R3 Turf - Rear 26x12-12 26X12-12 R4 Industrial - Front 18x8.5-10 18X8.5-10 R4 Industrial - Rear 26x12-12 26X12-12 ▶ Loader & AttachmentsQuick Attach Loader System Quik-Park Swift-Tach Loader (LA344S - Two Lever Quick Attach Bucket) Loader Model 120R LA344S (standard, quick attach); LA344 (pin-on option) Loader Lift Height 120R: 72 in 71.0 in Loader Lift Capacity (Full Height) 120R (NSL): 704 lb 739 lb (LA344 pin-on); 613 lb (LA344S quick attach) Loader Breakout Force 1823 lbf (at pivot pin) 1,407 lbf (LA344 pin-on); 1,286 lbf (LA344S quick attach) ▶ WarrantyWarranty Length & Coverage 6-Year / 2,000 Hour Limited Powertrain Warranty; standard at no cost, covers residential and commercial use Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours. ▶ ITC Company AccessoriesAccessories that fit None tagged yet
