John Deere 1E 23 vs TYM T224 | Side-by-side comparison | ITC Resource Center
Compare Tractors

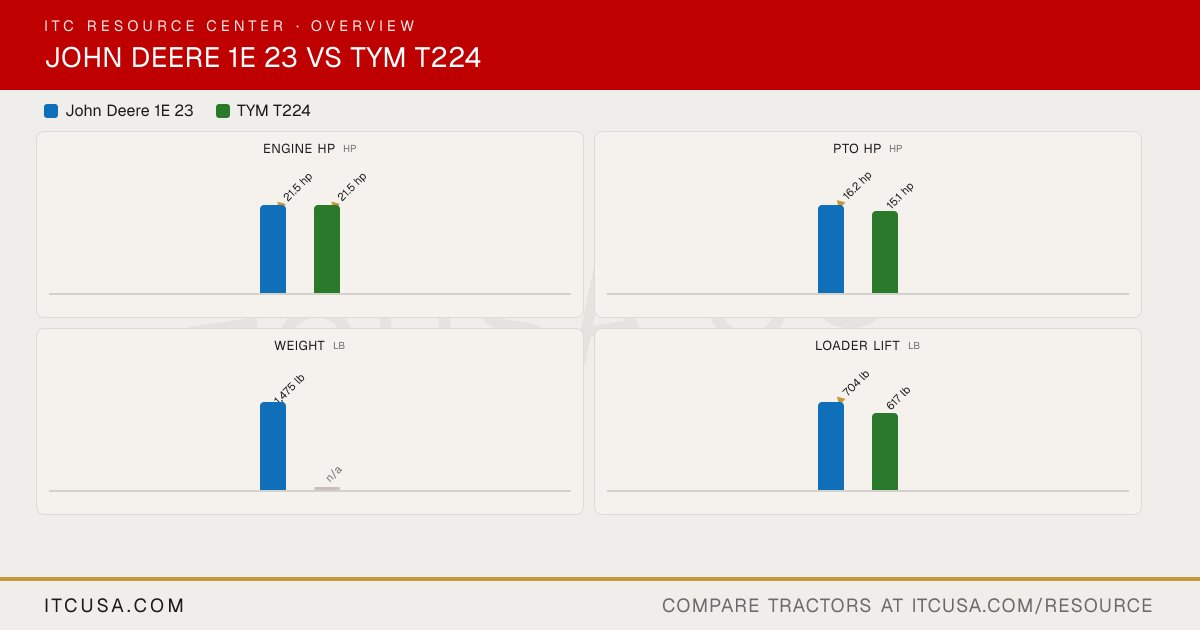

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere1E 23
TYMT224
Engine Manufacturer
Yanmar
Yanmar
Engine Model
3TNM74F-NCJT
n/a
Engine Type
Diesel
3-cylinder, naturally aspirated diesel
No. of Cylinders
3
3
Displacement
60.6 in³
60.6 in³
Rated Engine Speed
3200 rpm
3200 rpm
Engine Power (Gross)
21.5 hp
21.5 hp
PTO Power
16.2 hp
15.1 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid-cooled
Water-cooled
Air Cleaner
Not Published
Single dry
Fuel System
Not Published
IDI
Alternator
Not Published
40 A, 12 V
Pump Type
Gear
Single gear pump
Implement Flow
3.5 gpm
4.6 gpm
Steering Flow
3.5 gpm
2.1 gpm
Total Hydraulic Flow
7 gpm
6.7 gpm
Overall Hydraulic Pump Flow
7 gpm
6.7 gpm
Hydraulic System Type
Open center
Open center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
Not Published
No. of Optional Remote Valves
Not Published
1
Fuel Tank Capacity
5.57 gal
6.6 gal
Coolant Capacity
Not Published
3.7 qt
Crankcase Capacity
Not Published
1.9 qt
Transmission / Hydraulic System Capacity
Not Published
3.6 gal
Front Axle Fluid Capacity
Not Published
2.6 qt
PTO Type
Independent
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Standard, 2100 rpm
Available
Category, 3-Point Hitch
Limited Category 1
Category I (Narrow)
Hitch Lift Capacity
Not Published
1,100 lb
Hitch Lift Capacity (at 24”)
758 lb
679 lb
Lift Control Type
Select control
Position control
Transmission Type
Hydrostatic - 2 range
HST
No. of Speeds
Infinite (hydrostatic), 2 ranges forward and reverse
Infinite 2-Range
Max Travel Speed (Forward)
9.1 mph
8.4 mph
Max Travel Speed (Reverse)
9.1 mph
Not Published
Clutch
Not Published
Not applicable
Differential Lock & Limited Slip Options
Not Published
Differential lock
Frame Type
Foldable ROPS, standard equipment
Not Published
Steering
Power steering
Hydrostatic
Brakes
Wet disc, left-hand pedal
Wet disc
Seat Suspension & Adjustability
Deluxe suspension seat with high back and adjustable settings; no tilt steering
Not Published
Front Axle Type
Four-wheel drive (mechanical front-wheel drive)
Not Published
Front Axle Rating
Not Published
Not Published
Drawbar Capacity
Not Published
Not Published
Overall Length with 3-Point Hitch
Not Published
94.2 in
Overall Width
47.22 in (R3 tires); 47.32 in (R4 tires)
44.5 in
Wheelbase
57.1 in
53.1 in
Ground Clearance
Not Published
8.3 in
Min. Turn Radius without Brakes
Not Published
86.6 in
Height to Top of ROPS
Not Published
86.6 in
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
Not Published
Tractor Weight (Base)
Approx. 1,475 lb (shipping weight, open station)
n/a
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R3 Turf, R3 Hybrid, or R4 Industrial
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
Not Published
BAR F 16x6.50-8
R1 Agricultural - Rear
Not Published
BAR R 24x12.00-12
R3 Turf - Front
18x8.50-10
Turf Master 16x7.50-8 NHS TL 4PR
R3 Turf - Rear
26x12-12
Turf Master 24x12.00-12 NHS TL 4PR
R4 Industrial - Front
18x8.5-10
WT300 18x8.5-10 NHS TL 4PR
R4 Industrial - Rear
26x12-12
WT300 26x12.00-12 NHS TL 4PR
Quick Attach Loader System
Quik-Park
TX22H: Quick attach mechanism
Loader Model
120R
n/a
Loader Lift Height
120R: 72 in
71.3 in
Loader Lift Capacity (Full Height)
120R (NSL): 704 lb
617 lb
Loader Breakout Force
1823 lbf (at pivot pin)
1,235 lb
Warranty Length & Coverage
6-Year / 2,000 Hour Limited Powertrain Warranty; standard at no cost, covers residential and commercial use
Up to 2 years or until the 2,000 hours mark, bumper-to-bumper warranty; 3000 hours maximum coverage period for parts and labour on drivetrains or powertrains; 12-months warranty period for implements, including loaders and backhoes.
