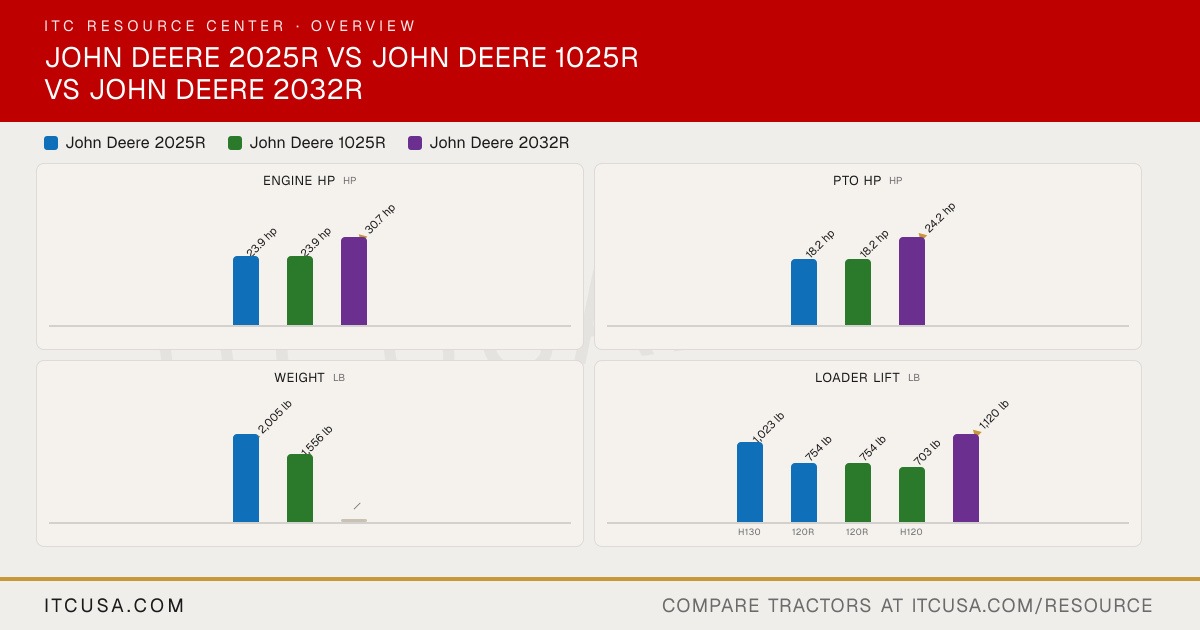

▶ EngineEngine Manufacturer Yanmar Yanmar Yanmar Engine Model 3TNV80F-NCJT 3TNV80F-CJT 3TNV88C-NJT2 Engine Type Diesel 3-cylinder, liquid-cooled diesel Diesel No. of Cylinders 3 3 3 Displacement 77 in³ 77.3 in³ 100.2 in³ Rated Engine Speed 3200 rpm 3200 rpm 2500 rpm Engine Power (Gross) 23.9 hp 23.9 hp 31.2 hp PTO Power 17.2 hp 18 hp 24.2 hp Engine Emissions Constraints Tier 4 Tier 4 Not Published Cooling System Type Liquid cooled Liquid-cooled Liquid-cooled Air Cleaner Dual element Dry with safety element Dual element Fuel System Indirect injection Indirect injection Direct injection Alternator 40 A 40 A, 12 V 85 A ▶ HydraulicsPump Type Not Published Gear Tandem gear Implement Flow 3.5 gpm 3.5 gpm 5.3 gpm Steering Flow 3.5 gpm 3.5 gpm 4 gpm Total Hydraulic Flow 7 gpm 7 gpm 9.3 gpm Overall Hydraulic Pump Flow 7 gpm 6.3 gpm 9.3 gpm Hydraulic System Type Open center Open center Open center Rear Remote Hydraulic Flow 3.5 gpm implement circuit; 7 gpm total capacity 3.5 gpm implement circuit; total 7 gpm Not Published No. of Standard Remote Valves 2 Not Published Not Published No. of Optional Remote Valves Optional field kits: rear SCV kit (one set of hydraulic couplers at the rear); third mid-mounted SCV (additional set of mid-mount couplers) Not Published Not Published ▶ Fluid CapacityFuel Tank Capacity 6.1 gal 6.3 gal 8.5 gal Coolant Capacity 0.81 gal 3.9 qt 4.2 qt Crankcase Capacity 0.84 gal 2.9 qt 4.5 qt Transmission / Hydraulic System Capacity 3.5 gal 3.25 gal 24.8 qt Front Axle Fluid Capacity 0.89 gal 3.0 qt 4 qt ▶ PTO & HitchPTO Type Independent Independent Independent PTO Rear 540 rpm 540 rpm 540 rpm Mid-PTO Availability Standard; mid PTO 2100 rpm at 540 PTO marker Standard, 2100 rpm 2000 rpm Category, 3-Point Hitch Limited Category 1 Limited Category I Category 1 Hitch Lift Capacity 1,433 lb 1,177 lb 1,433 lb Hitch Lift Capacity (at 24”) 915 lb 758 lb 1,356 lb Lift Control Type Position Control Position control Position Control ▶ Transmission & DrivetrainTransmission Type Hydrostatic Hydrostatic - 2 range Hydrostatic No. of Speeds Two range (Hi and Lo) Infinite (hydrostatic), 2 ranges forward and reverse Infinite (2-range) Max Travel Speed (Forward) Not Published 9.1 mph Not Published Max Travel Speed (Reverse) Not Published 9.1 mph Not Published Clutch wet disc wet disc Not Published Differential Lock & Limited Slip Options Differential lock: Yes; Limited slip differential: No Standard rear differential lock Differential lock ▶ Chassis, Steering & ControlsFrame Type Not Published Semi-flat platform; two-post folding ROPS; four-wheel drive Foldable ROPS Steering Power Power steering Power Brakes Wet Disc Wet disk, left-hand pedal Wet Disc Seat Suspension & Adjustability Fore/aft adjustable; seat flips forward for weather protection; mechanical suspension not listed Deluxe suspension seat with armrests and tilt steering wheel Not Published Front Axle Type Four-wheel drive 4WD (MFWD), on-the-go engagement Not Published Front Axle Rating 1,349 lb 1,349 lb 1,940 lb Drawbar Capacity 562 lb 2,165 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 37 in (min); 51 in (max) 47.22 in (R3 tires); 47.32 in (R4 tires) 55.1 in Wheelbase 63 in 57.1 in 67.8 in Ground Clearance 13 in 7.7 in (front axle) 9.8 in (front axle) Min. Turn Radius without Brakes Not Published 7.4 ft (no brakes, no MFWD) 98.4 in Height to Top of ROPS 89 in 90 in (ROPS extended, R4 tires) 92.3 in (R4 tires) Height to Top of ROPS (folded) 66.8 in 73 in 67.5 in Height to Top of Cab Model Not Published Not Published Not Published Overall Length 109.2 in 108 in 117.5 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 1,872 lb (with all fluids) 1,556 lb 2,879 lb (with all fluids) Weight with ROPS and Loader Not Published Not Published Not Published Weight with Cab and Loader Not Published Not Published Not Published ▶ Tire OptionsTire Size & Options Front: R3 Turf 23x8.50-12; R3 Radial 220/55-R12; R4 Industrial 23x8.50-12 Standard R4, optional R3 R1 Ag, R3 Turf, R4 Industrial, R3 Turf Radial R1 Agricultural - Front Not Published Not Published Not Published R1 Agricultural - Rear Not Published Not Published Not Published R3 Turf - Front 23x8.50-12 or R3 Radial: 220/55-R12 18x8.5-10 23X8.50-14 R3 Turf - Rear 12-16.5 or R3 Radial: 280/70 R16 26x12-12 14-17.5 R4 Industrial - Front 23x8.50-12 18x8.5-10 23x8.50-14 R4 Industrial - Rear 12-16.5 26x12-12 14-17.5 ▶ Loader & AttachmentsQuick Attach Loader System H130 Loader (Quik-Park); 120R Loader (NSL standard, MSL optional, Quik-Park) Tool-free attach and park (MSL optional on 120R) 220R Loader (Quik-Park) Loader Model 120R 120R (MSL or NSL); 120E (NSL only) 220R Loader Lift Height 120R: 72 in (at pivot pin) 120R: 72 in; 120E: 71.2 in 220R: 85 in (at pivot pin) Loader Lift Capacity (Full Height) 120R (NSL): 803 lb (at pivot pin, full height) 120R (MSL): 680 lb; 120E (NSL): 519 lb (at 19.7 in ahead of pivot) 220R: 1,120 lb (at pivot pin, full height) Loader Breakout Force Not Published Not Published 220R: 1,949 lbf (at pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours Powertrain 6 years, standard at no cost, covers residential and commercial use Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours
