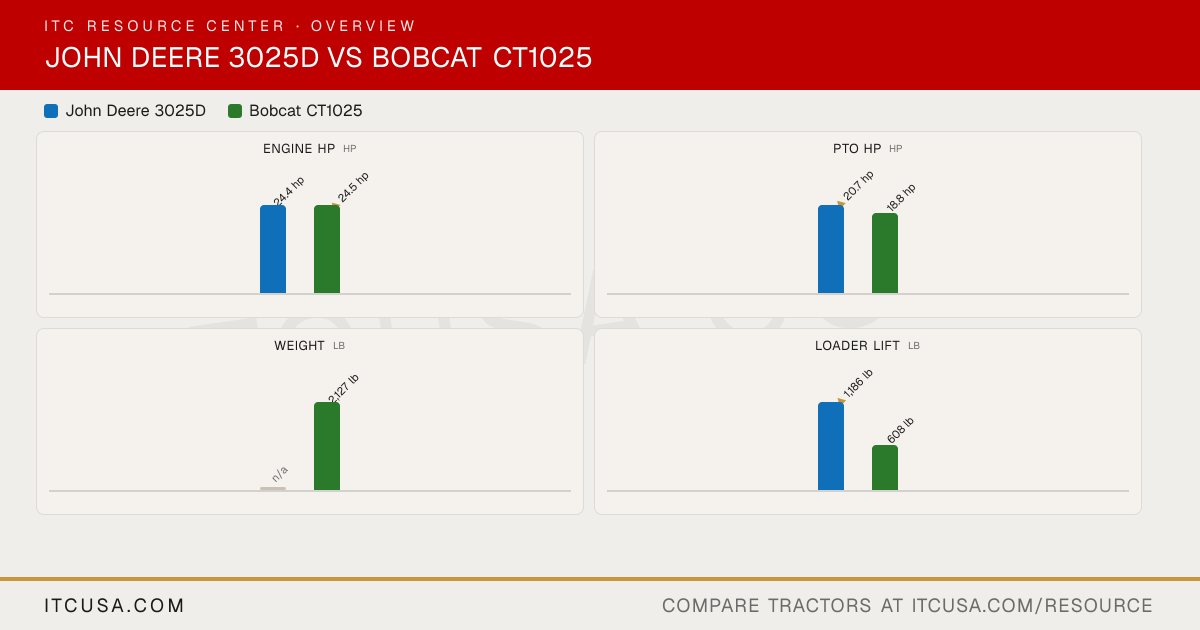

▶ EnginePTO Power 20.7 hp 18.8 hp Alternator 55 A, 12 V alternator Air Cleaner Dual element Dry type, replaceable Engine Type Diesel, water-cooled Diesel Fuel System Direct injection Diesel, Common Rail Direct Injection (CRDI) Displacement 100.1 in³ 69.01 in³ No. of Cylinders 3 3 Rated Engine Speed 2400 rpm 2600 rpm Cooling System Type Liquid water cooled Engine Manufacturer Yanmar Shibaura Engine Power (Gross) 24.4 hp @ 400 rpm 24.5 hp Engine Emissions Constraints Tier 4 Tier 4 Engine Model n/a Shibaura 0.3 gal 3-cyl diesel ▶ WeightWeight with ROPS and Loader Not Published 2,127 LB Approximate Operating Weight Weight with Cab and Loader Not Applicable 1652.00 KG ▶ WarrantyWarranty Length & Coverage 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) 24 months or 1,500 hours (whichever occurs first) ▶ HydraulicsPump Type Single gear Gear Steering Flow 3.6 gpm 16.90 Implement Flow 4.8 gpm 26.00 Total Hydraulic Flow 8.9 gpm 6.5 gpm Hydraulic System Type Open center Open Center Rear Remote Hydraulic Flow Not Published NOT FOUND Overall Hydraulic Pump Flow 8.9 gpm 7.2 gpm No. of Optional Remote Valves Up to two (optional) 1 Pair No. of Standard Remote Valves Not Published Std. (4 port) ▶ PTO & HitchPTO Rear 540 rpm (6-spline) 540 rpm PTO Type Not Published Independent Lift Control Type Position control Hydraulic Position Control System Hitch Lift Capacity Not Published 700 lb. Mid-PTO Availability Not Applicable Standard: 2200 rpm Category, 3-Point Hitch Category 1 Category 1 Limited Hitch Lift Capacity (at 24”) 2,081.2 lb @ 24 in behind link arms 700 lb ▶ Tire OptionsR3 Turf - Rear 41X14-20 41x14.0-20 R3 R3 Turf - Front 27X8.50-15 27x8.5-15 R3 Tire Size & Options R1 Bar, R3 Turf, R4 Industrial Agricultural, Turf, Industrial R4 Industrial - Rear 15.00-19.5 15-19.5 R4 R4 Industrial - Front 25X8.50-14 25x8.5-14 R4 R1 Agricultural - Rear 11.2-24 26x12.00-12 R1 Agricultural - Front 7-14 18x8.5-10 ▶ Fluid CapacityCoolant Capacity Not Published 0.9 gal Crankcase Capacity 1.1 gal 2 gal Fuel Tank Capacity 10.0 gal 7.1 gal. Front Axle Fluid Capacity 1.0 gal 1.6 gal Transmission / Hydraulic System Capacity 9.2 gal 5.8 gal ▶ Loader & AttachmentsLoader Lift Height 84.0 in 71.9 in. Loader Breakout Force 1,704 lb 1554 lb. Quick Attach Loader System Quick-change attachment carrier Standard Quick Attach Mounting System Loader Lift Capacity (Full Height) 1,186 lb 608 lb. Loader Model n/a FL6 ▶ Transmission & DrivetrainClutch Not Published Clutch-free (hydrostatic) No. of Speeds 8F/8R 2-Range Transmission Type 8F/8R synchromesh shuttle shift gear transmission Hydrostatic Max Travel Speed (Forward) 11.1 mph 11.1 mph (17.8 km/hr.) Max Travel Speed (Reverse) 11.6 mph 7.6 mph (12.2 km/hr.) Differential Lock & Limited Slip Options Not Published Std ▶ Chassis, Steering & ControlsBrakes Not Published Wet Multi-disc Steering Not Published Hydrostatic Power Steering Frame Type Not Published 4x4 MFWD 4WD Front Axle Type MFWD (4WD) MFWD Drawbar Capacity Not Published 650.00 KG Front Axle Rating Not Published Manual(MEC) Seat Suspension & Adjustability Not Published Std ▶ Dimensions & ManeuverabilityWheelbase 62.6 in 55.1 in. Overall Width 57.3 in 46.0 in. Ground Clearance 13.0 in 6.3 in. Height to Top of ROPS Not Published 87.56 in Height to Top of Cab Model Not Applicable Not Published Height to Top of ROPS (folded) Not Published 2520.00 MM Min. Turn Radius without Brakes Not Published 8.3 ft. (2.54 m) Overall Length with 3-Point Hitch 111.2 in 99.3 in.
