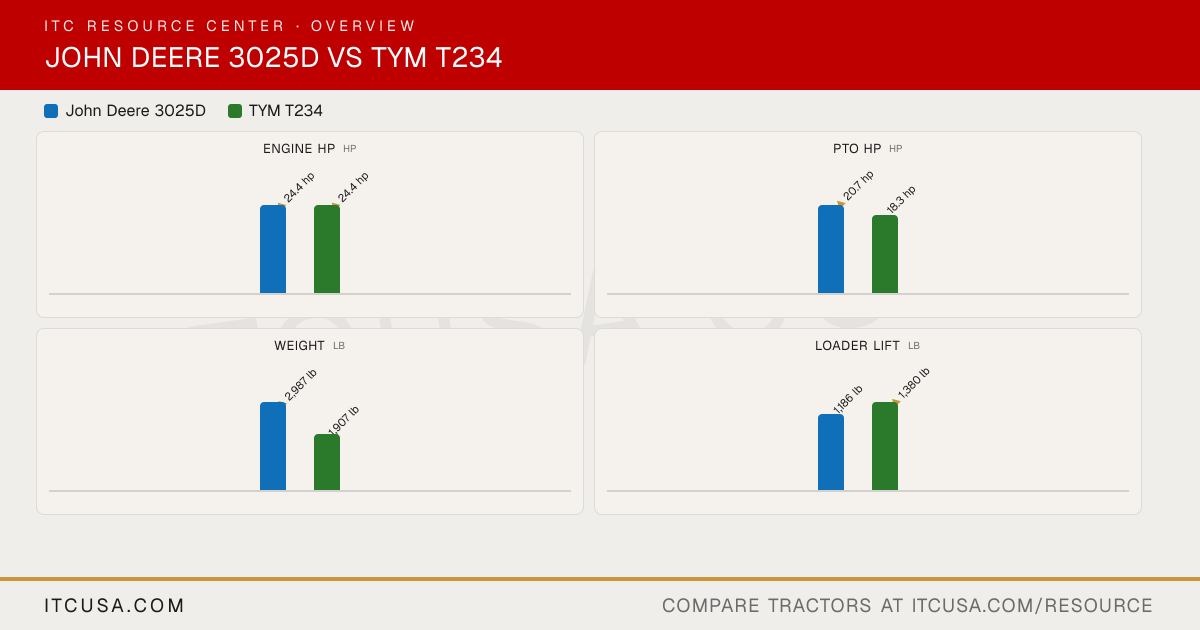

▶ EngineEngine Manufacturer Yanmar Mitsubishi Engine Model 3TNV88F-EPJPT S3L2 Engine Type 4-cycle, inline, water-cooled diesel, naturally aspirated 3-cylinder, naturally aspirated diesel No. of Cylinders 3 3 Displacement 100.2 in³ 80.4 in³ Rated Engine Speed 2400 rpm 2500 rpm Engine Power (Gross) 24.4 hp 24.4 hp PTO Power 20.7 hp 18.3 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid Liquid-cooled Air Cleaner Dry Dual dry Fuel System Direct injection Indirect fuel injection Alternator 55 A, 12 V 50 A, 12 V ▶ HydraulicsPump Type 2 single-section external gear pumps, 1 on each side of the engine timing-gear cover Dual gear pump Implement Flow 5.1 gpm 4.4 gpm Steering Flow 3.8 gpm 2.3 gpm Total Hydraulic Flow 8.5 gpm 6.7 gpm Overall Hydraulic Pump Flow 8.9 gpm 6.7 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None Not Published No. of Optional Remote Valves Up to two (optional) 1 ▶ Fluid CapacityFuel Tank Capacity 9.7 gal 6.6 gal Coolant Capacity 1.18 gal 5.9 qt Crankcase Capacity 1.1 gal 4.5 qt Transmission / Hydraulic System Capacity 9.24 gal 5.8 gal Front Axle Fluid Capacity 1.0 gal 4.7 qt ▶ PTO & HitchPTO Type Not Published Independent PTO Rear 540 rpm at 2400 rpm engine (rated) 540 rpm Mid-PTO Availability Not Published Available Category, 3-Point Hitch Category I Category I Hitch Lift Capacity Not Published 1,534 lb Hitch Lift Capacity (at 24”) 1,670 lb 1,102 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type 8F/8R gear drive transmission HST No. of Speeds 8F/8R Infinite / 2 Range Max Travel Speed (Forward) 11.1 mph 9.6 mph Max Travel Speed (Reverse) Not Published Not Published Clutch Not Published Not Published Differential Lock & Limited Slip Options Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic Brakes Not Published Wet disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type MFWD (4WD) Not Published Front Axle Rating Not Published Not Published Drawbar Capacity 1,102 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 57.3 in 52.8 in Wheelbase 62 in 58.3 in Ground Clearance 14 in 7.71 in Min. Turn Radius without Brakes 6.9 ft (with brake applied) 105.5 in Height to Top of ROPS Not Published 89.8 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 111.2 in 107.8 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 2,778 lb 1,907 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Bar, R3 Turf, R4 Industrial R4 Industrial R1 Agricultural - Front 7-14 Not Published R1 Agricultural - Rear 11.2-24 Not Published R3 Turf - Front 27X8.50-15 Not Published R3 Turf - Rear 41X14-20 Not Published R4 Industrial - Front 25X8.50-14 23x8.5-12 R4 Industrial - Rear 15-19.5 12x16.5 ▶ Loader & AttachmentsQuick Attach Loader System Quick-change attachment carrier TX2000: Quick attach mechanism Loader Model 300E TX2000 Loader Lift Height 84.0 in (at pivot pin) TX2000: 86.9 in (at pivot pin) Loader Lift Capacity (Full Height) 1,186 lb (at pivot pin) TX2000: 1,380 lb (at pivot pin) Loader Breakout Force 1,704 lb (at pivot pin) TX2000: 2,059 lb (at pivot pin, ground level) ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours; powertrain 72 months or 2,000 hours Not Published
