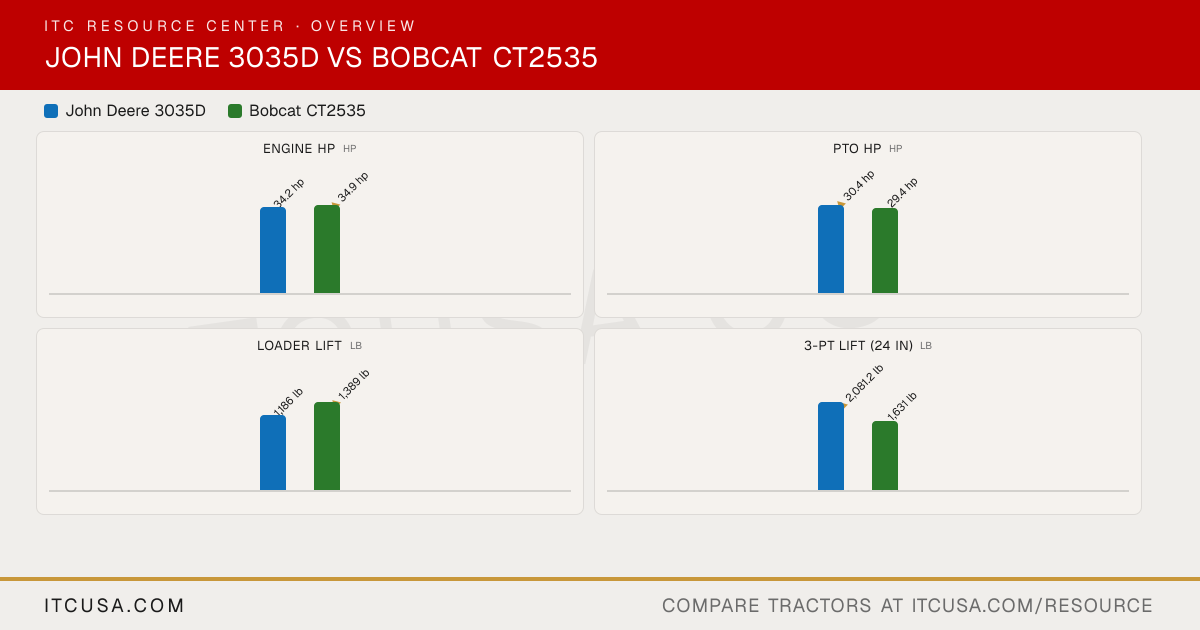

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
NOT FOUND — no source explicitly names the pump type (e.g. gear, piston, etc.) for the CT2535. The Bobcat EU page lists 'Implement pump type · 26.00' but this appears to be a flow value (L/min), not a pump type descriptor.
Steering Flow
4.4 gpm
16.90
Implement Flow
5.9 gpm
26.00
Total Hydraulic Flow
10.3 gpm
11.4 gpm
Hydraulic System Type
Open center
NOT FOUND — no source explicitly labels a 'Hydraulic System Type' field for the CT2535. The EU Bobcat page lists 'Power steering pump (4 port)' and separate implement flow, suggesting an open-center or load-sensing split system, but no source uses that label explicitly.
Rear Remote Hydraulic Flow
Not Published
N/A
Overall Hydraulic Pump Flow
10.3 gpm
11.4 gpm
No. of Optional Remote Valves
Up to two (optional)
2 Pairs
No. of Standard Remote Valves
Not Published
Std. (4 port)
PTO Rear
540 rpm at 2400 rpm engine
540 rpm
PTO Type
Mechanical control; transmission clutch; wet disk brake (mid/rear PTO)
Independent
Lift Control Type
Position control
Hydraulic Position Control System
Hitch Lift Capacity
Not Published
1631 lb.
Mid-PTO Availability
Not Published
Optional: 1988 rpm
Category, 3-Point Hitch
Category 1
Category 1
Hitch Lift Capacity (at 24”)
2081.2 lb
1,631 lb
R3 Turf - Rear
41X14-20
41x14.0-20 R3
R3 Turf - Front
27X8.5-15
27x8.5-15 R3
Tire Size & Options
R1 Bar, R3 Turf, R4 Industrial
3,585 lb
R4 Industrial - Rear
15-19.5
15-19.5 R4
R4 Industrial - Front
25X8.5-14
25x8.5-14 R4
R1 Agricultural - Rear
11.2-24
11.2-24
R1 Agricultural - Front
7-14
7-16
Coolant Capacity
1.2 gal
0.9 gal
Crankcase Capacity
1.1 gal
2 gal
Fuel Tank Capacity
10.0 gal
9.0 gal.
Front Axle Fluid Capacity
1.0 gal
1.6 gal
Transmission / Hydraulic System Capacity
9.2 gal
5.8 gal
Loader Lift Height
84.0 in
100 in.
Loader Breakout Force
1,704 lb
3285 lb.
Quick Attach Loader System
Quick-change attachment carrier
Standard Quick Attach Mounting System
Loader Lift Capacity (Full Height)
1,186 lb
1389 lb.
Loader Model
—
FL8
Clutch
Single dry traction clutch
Wet disc type
No. of Speeds
8F/8R
3 range
Transmission Type
8F/8R synchromesh shuttle shift gear transmission
3-Range HST
Max Travel Speed (Forward)
Not Published
14.4 mph (23.1 km/hr.)
Max Travel Speed (Reverse)
Not Published
10.1 mph (16.2 km/hr.)
Differential Lock & Limited Slip Options
Differential lock: Yes; limited slip: Not Published
