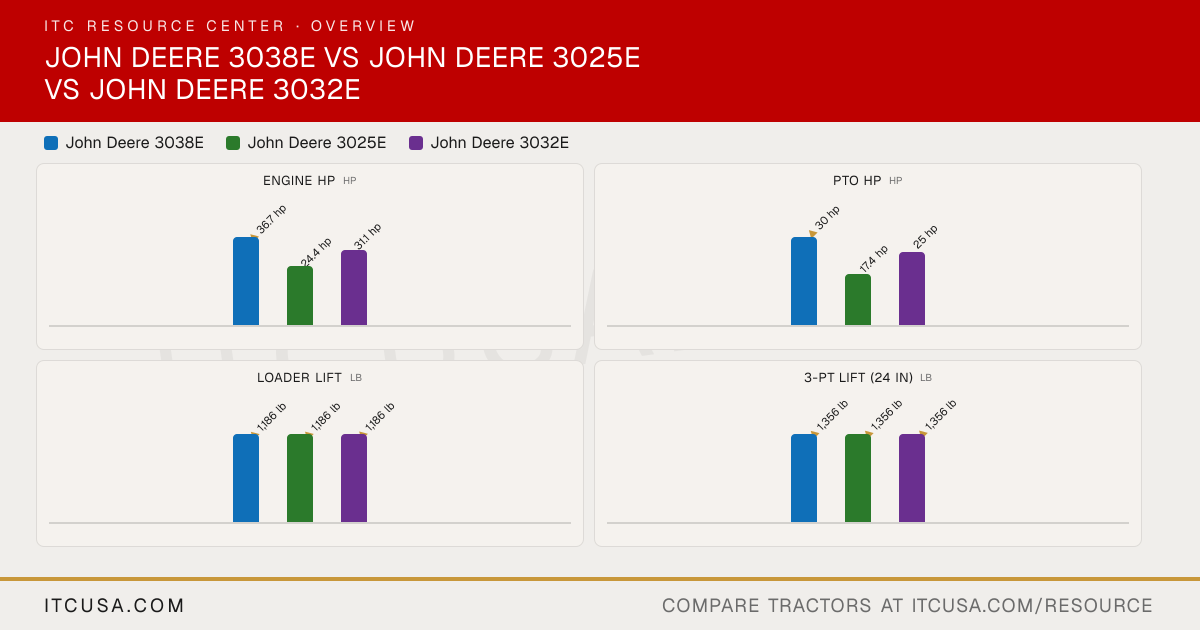

▶ EngineEngine Manufacturer Yanmar Yanmar Yanmar Engine Model 3TNV86CT-NJT2 3TNV88F-EPJT2 3TNV88C-NJT2 Engine Type Diesel Diesel, naturally aspirated, direct injection Diesel, naturally aspirated No. of Cylinders 3 3 3 Displacement 95.7 in³ 95.7 in³ 100.2 in³ Rated Engine Speed 2500 rpm 2400 rpm 2500 rpm Engine Power (Gross) 36.7 hp 24.4 hp 30.7 hp PTO Power 30 hp 17.4 hp 25 hp Engine Emissions Constraints Tier 4 Tier 4 Tier 4 Cooling System Type Water pump Water pump Water pump Air Cleaner Dry type with safety element Dry type with safety element Dry type with safety element Fuel System High pressure common rail direct injection Direct injection High pressure common rail direct injection Alternator 55 A, 12 V 55 A, 12 V 55 A, 12 V ▶ HydraulicsPump Type Implement/steering pump: Tandem gear; hydrostatic pump: PV axial piston Implement/steering pump: Tandem gear; hydrostatic pump: PV axial piston Implement/steering pump: Tandem gear; hydrostatic pump: PV axial piston Implement Flow 5.3 gpm 5.3 gpm 5.3 gpm Steering Flow 4.0 gpm 4.0 gpm 4.0 gpm Total Hydraulic Flow 9.3 gpm 9.3 gpm 9.3 gpm Overall Hydraulic Pump Flow 9.3 gpm 9.3 gpm 10.3 gpm Hydraulic System Type Open center Open center Open center Rear Remote Hydraulic Flow Not Published Not Published Not Published No. of Standard Remote Valves Not Published Not Published Not Published No. of Optional Remote Valves Up to 2 (optional) Up to 2 (optional) Up to 2 (optional) ▶ Fluid CapacityFuel Tank Capacity 7.5 gal 7.5 gal 7.5 gal Coolant Capacity 1.37 gal 1.3 gal 1.3 gal Crankcase Capacity 4.5 qt 4.5 qt 4.5 qt Transmission / Hydraulic System Capacity 5.5 gal 5.5 gal 5.5 gal Front Axle Fluid Capacity 1.0 gal 1.0 gal 1.0 gal ▶ PTO & HitchPTO Type Independent Not Published Independent PTO Rear 540 rpm 540 rpm 540 rpm Mid-PTO Availability Optional Not Published Not Published Category, 3-Point Hitch Category I Category I Category I Hitch Lift Capacity 1,356 lb 1,356 lb @ 24 in behind link arms Not Published Hitch Lift Capacity (at 24”) 1356 lb 1356 lb 1356 lb Lift Control Type Position control Not Published Position control ▶ Transmission & DrivetrainTransmission Type Hydrostatic transmission (HST) Hydrostatic transmission (HST) Hydrostatic (2-range) No. of Speeds Not Published Not Published Infinite (2-range HST) Max Travel Speed (Forward) Not Published Not Published Not Published Max Travel Speed (Reverse) Not Published Not Published Not Published Clutch Not Published Not Published Not Published Differential Lock & Limited Slip Options Differential lock: Yes; Limited slip: Not Published Not Published Not Published ▶ Chassis, Steering & ControlsFrame Type Not Published Open operator station (OOS) Not Published Steering Power steering Hydrostatic Power steering Brakes Wet disk Wet disc Wet disc Seat Suspension & Adjustability Not Published Not Published Not Published Front Axle Type Not Published 4WD (MFWD) 4WD (MFWD) Front Axle Rating 1760 lb 1760 lb 1760 lb Drawbar Capacity 880 lb 880 lb 880 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 115.9 in 115.9 in 115.9 in Overall Width 56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires) 56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires) 56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires) Wheelbase 62.8 in 62.8 in 62.8 in Ground Clearance 12.7 in (R4 tires) 12.7 in (R4 tires) 12.7 in (R4 tires) Min. Turn Radius without Brakes 9.4 ft (2.9 m) 9.4 ft (2.9 m) 9.4 ft (2.9 m) Height to Top of ROPS 95.3 in 95.3 in 95.3 in Height to Top of ROPS (folded) Not Published Not Published Not Published Height to Top of Cab Model Not Published Not Published Not Published ▶ WeightTractor Weight (Base) 2266 lb 2266 lb 2266 lb Weight with ROPS and Loader 2972 lb 2972 lb 2972 lb Weight with Cab and Loader Not Published Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Bar, R3 Turf, R4 Industrial R1 Bar, R3 Turf, R4 Industrial R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 7-14 7-14 7-14 R1 Agricultural - Rear 11.2-24 11.2-24 11.2-24 R3 Turf - Front 27X8.50-15 27X8.50-15 27X8.50-15 R3 Turf - Rear 41X14-20 41X14-20 41X14-20 R4 Industrial - Front 25X8.50-14 or 27X8.50-15 25X8.50-14 or 27X8.50-15 25X8.50-14 or 27X8.50-15 R4 Industrial - Rear 15.00-19.5 or 43X16-20 15.00-19.5 or 43X16-20 15.00-19.5 or 43X16-20 ▶ Loader & AttachmentsQuick Attach Loader System Quick-change attachment carrier Quick-change attachment carrier Quick-change attachment carrier Loader Model D160 D160 D160 Loader Lift Height 84 in 84 in 84.0 in Loader Lift Capacity (Full Height) 1,186 lb 1,186 lb 1,186 lb Loader Breakout Force 1,704 lb 1,704 lb 1,704 lb ▶ WarrantyWarranty Length & Coverage 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)
