John Deere 3038E | Side-by-side comparison | ITC Resource Center
Compare Tractors

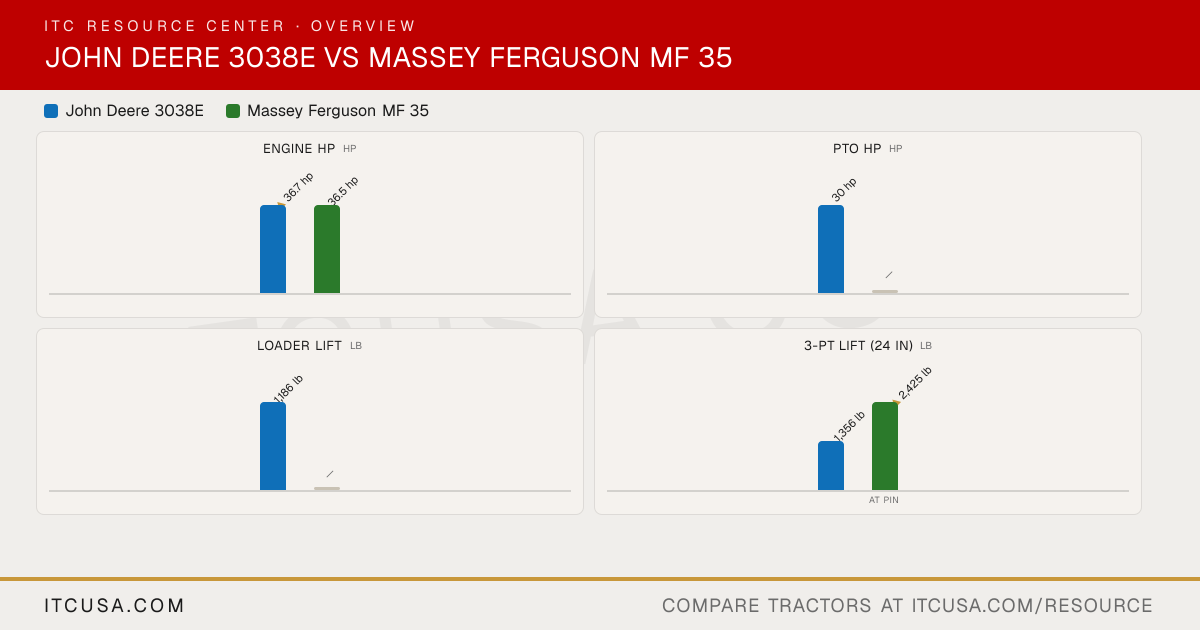

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
2 of 4 selected
n/a
JohnDeere3038E
n/a
MasseyFergusonMF35
Comparison loaded for 2 tractors.
Full Spec Sheet
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere3038E
Engine Manufacturer
Yanmar
Engine Model
3TNV86CT-NJT2
Engine Type
Diesel
No. of Cylinders
3
Displacement
95.7 in³
Rated Engine Speed
2500 rpm
Engine Power (Gross)
36.7 hp
PTO Power
30 hp
Engine Emissions Constraints
Tier 4
Cooling System Type
Water pump
Air Cleaner
Dry type with safety element
Fuel System
High pressure common rail direct injection
Alternator
55 A, 12 V
Pump Type
Implement/steering pump: Tandem gear; hydrostatic pump: PV axial piston
Implement Flow
5.3 gpm
Steering Flow
4.0 gpm
Total Hydraulic Flow
9.3 gpm
Overall Hydraulic Pump Flow
9.3 gpm
Hydraulic System Type
Open center
Rear Remote Hydraulic Flow
Not Published
No. of Standard Remote Valves
Not Published
No. of Optional Remote Valves
Up to 2 (optional)
Fuel Tank Capacity
7.5 gal
Coolant Capacity
1.37 gal
Crankcase Capacity
4.5 qt
Transmission / Hydraulic System Capacity
5.5 gal
Front Axle Fluid Capacity
1.0 gal
PTO Type
Independent
PTO Rear
540 rpm
Mid-PTO Availability
Optional
Category, 3-Point Hitch
Category I
Hitch Lift Capacity
1,356 lb
Hitch Lift Capacity (at 24”)
1356 lb
Lift Control Type
Position control
Transmission Type
Hydrostatic transmission (HST)
No. of Speeds
Not Published
Max Travel Speed (Forward)
Not Published
Max Travel Speed (Reverse)
Not Published
Clutch
Not Published
Differential Lock & Limited Slip Options
Differential lock: Yes; Limited slip: Not Published
Frame Type
Not Published
Steering
Power steering
Brakes
Wet disk
Seat Suspension & Adjustability
Not Published
Front Axle Type
Not Published
Front Axle Rating
1760 lb
Drawbar Capacity
880 lb
Overall Length with 3-Point Hitch
115.9 in
Overall Width
56.9 in (min. rear tread, standard R1 tires); 61.7 in (max. rear tread, larger R4 tires)
