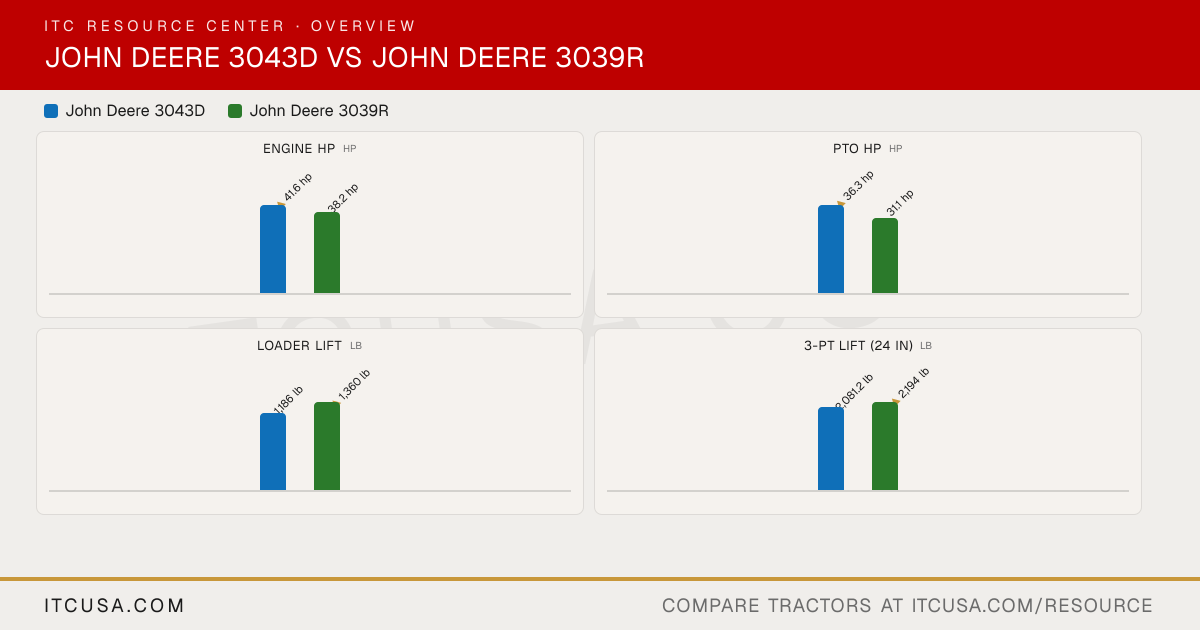

▶ EngineEngine Manufacturer Yanmar Yanmar Engine Model 3TNV86CT-KJPT 3TNV86CT-MJT Engine Type 4-cycle, inline, water-cooled diesel, turbocharged Diesel, turbocharged No. of Cylinders 3 3 Displacement 95.8 in³ 95.7 in³ Rated Engine Speed 2800 rpm 2600 rpm Engine Power (Gross) 41.6 hp 38.2 hp PTO Power 36.3 hp 31.1 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid Liquid Air Cleaner Dry Dry type with safety element Fuel System Direct injection Not Published Alternator 55 A, 12 V 75 A, 12 V ▶ HydraulicsPump Type Two single-section external gear pumps, one either side of the engine Implement/steering pump: dual gear pump; eHydro: PV axial-piston hydrostatic pump Implement Flow 5.9 gpm 9.1 gpm Steering Flow 4.4 gpm 6.2 gpm Total Hydraulic Flow 10.3 gpm 15.3 gpm Overall Hydraulic Pump Flow 10.3 gpm 15.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves None Not Published No. of Optional Remote Valves Loader mast mounted SCV (optional); 4th/5th SCV (optional) Not Published ▶ Fluid CapacityFuel Tank Capacity 9.7 gal Open station (OOS): 13.5 gal; Cab: 11.8 gal Coolant Capacity 1.3 gal Open station (OOS): 1.4 gal; Cab: 1.9 gal Crankcase Capacity 1.1 gal 1.1 gal Transmission / Hydraulic System Capacity 9.2 gal 6.8 gal Front Axle Fluid Capacity 1.0 gal 1.3 gal ▶ PTO & HitchPTO Type Transmission driven Independent PTO Rear 540 rpm at 2800 rpm engine (rated) 540 rpm Mid-PTO Availability Not Published Optional with eHydro (2100 rpm) Category, 3-Point Hitch Category I Limited Category I Hitch Lift Capacity Not Published 2,530 lb at hitch ball Hitch Lift Capacity (at 24”) 1,670 lb 2,200 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type 8F/8R synchromesh shuttle shift gear transmission PowrReverser 12F/12R (standard); eHydro Hydrostatic-3 Range (optional) No. of Speeds 8F/8R PowrReverser: 12F/12R; eHydro: 3 range Max Travel Speed (Forward) 12.9 mph eHydro: 18.50 mph Max Travel Speed (Reverse) Not Published eHydro: 18.50 mph Clutch Single dry traction (mechanical) Not Published Differential Lock & Limited Slip Options Differential lock: Yes Differential lock (traction assist) ▶ Chassis, Steering & ControlsFrame Type Not Published Not Published Steering Power steering Hydrostatic power steering Brakes Wet disk Wet disk Seat Suspension & Adjustability Not Published Not Published Front Axle Type 4WD Mechanical front wheel drive (MFWD) Front Axle Rating 1,940 lb 3,196 lb Drawbar Capacity 1,102 lb (maximum static vertical load) Not Published ▶ Dimensions & ManeuverabilityOverall Width 57.3 in 69.1 in Wheelbase 62 in 68.0 in Ground Clearance 14 in 12.2 in Min. Turn Radius without Brakes 6.9 ft (with brake applied) 8.8 ft (2.68 m, MFWD off) Height to Top of ROPS Not Published 93.3 in Height to Top of ROPS (folded) Not Published 72.0 in Height to Top of Cab Model Not Published 85.0 in Overall Length 111.2 in 120.2 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 2,800 lb 2,900 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Bar, R3 Turf, R4 Industrial R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 7-14 7-14 R1 Agricultural - Rear 11.2-24 11.2-24 R3 Turf - Front 27X8.50-15 27X8.50-15 or 25/10.5LLX15 R3 Turf - Rear Not Published 41X14-20 or 41X18LL-16.1 R4 Industrial - Front 25X8.50-14 25X8.5-14 or 27X8.5-15 R4 Industrial - Rear 15-19.5 15-19.5 or 43X16-20 ▶ Loader & AttachmentsQuick Attach Loader System Quick-change attachment carrier Tool-free attach-and-park mounting Loader Model D160 300R; 320R Loader Lift Height 84 in (at pivot pin) 300R: 90 in; 320R: 102 in Loader Lift Capacity (Full Height) 1,186 lb (at pivot point, maximum height) 300R: 1,360 lb; 320R: 1,598 lb (at pivot pin) Loader Breakout Force 1,704 lbf (at pivot point) 300R: 2,855 lbf; 320R: 3,327 lbf (at pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours
