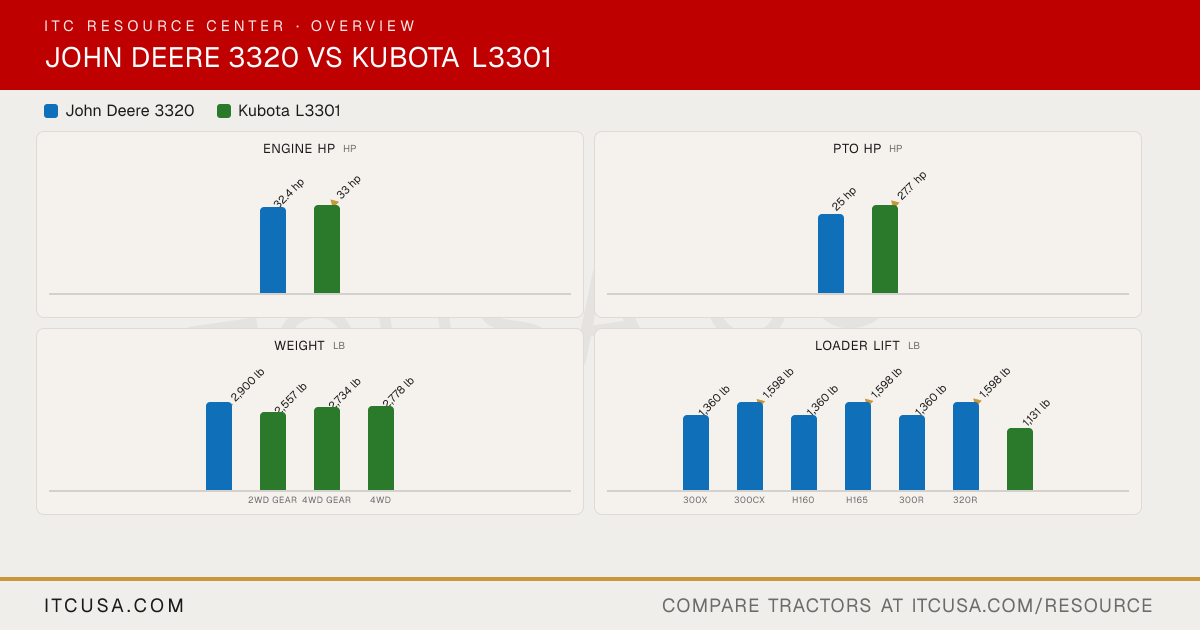

▶ EngineEngine Manufacturer Yanmar Kubota Engine Model 3TNV88-BMJT F (2WD gear), DT (4WD gear): D1803-CR-E4-LB1; HST (4WD): D1803-CR-E4-LB2 Engine Type 3-cylinder liquid-cooled diesel, direct injection Liquid-cooled, 3-cylinder, 4-cycle, multi-valve diesel, naturally aspirated, common rail direct injection No. of Cylinders 3 3 Displacement 100.1 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2700 rpm Engine Power (Gross) 32.4 hp 33 hp PTO Power 25 hp F (2WD gear), DT (4WD gear): 27.7 hp; HST (4WD): 26.2 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Liquid-cooled, water with pressurized radiator Air Cleaner Dry type with safety element Dry paper single element Fuel System Direct injection, self bleeding, in-line fuel pump with electric shutoff Common rail (CRS) direct injection, electronic fuel injection Alternator 40 A 40 A, 12 V ▶ HydraulicsPump Type Dual tandem gear pump Open center tandem pump, gear type Implement Flow 8.6 gpm 6.3 gpm Steering Flow 5.3 gpm 3.8 gpm Total Hydraulic Flow 13.9 gpm 10.1 gpm Overall Hydraulic Pump Flow 13.9 gpm 10.1 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published Not Published No. of Optional Remote Valves Not Published Up to 3 (self canceling detent valve or float detent valve options) ▶ Fluid CapacityFuel Tank Capacity 13.5 gal (open station); 11.8 gal (cab) 11.1 gal Coolant Capacity 5.6 qt (open station); 7.4 qt (cab) 6.3 qt Crankcase Capacity 5.1 qt 7.1 qt Transmission / Hydraulic System Capacity 6.8 gal (eHydro); 6.3 gal (PowrReverser) F (2WD gear): 7.4 gal; DT (4WD gear): 7.5 gal; HST (4WD): 6.2 gal Front Axle Fluid Capacity 1.2 gal 4.8 qt ▶ PTO & HitchPTO Type Independent Live independent PTO with hydraulic clutch PTO Rear 540 rpm 540 rpm Mid-PTO Availability Optional, 2100 rpm No mid-PTO offered Category, 3-Point Hitch Category 1 Category I Hitch Lift Capacity Not Published 1998 lb Hitch Lift Capacity (at 24”) 2200 lb 1433 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type eHydro 3-range hydrostatic (4WD); PowrReverser 12F/12R power shuttle (4WD) F (2WD gear), DT (4WD gear): Synchronized shuttle gear transmission, 8F/8R; HST (4WD): Hydrostatic transmission, 3-range No. of Speeds Infinite forward and reverse, 3 ranges (eHydro); 12 forward, 12 reverse (PowrReverser) F (2WD gear), DT (4WD gear): 8F/8R; HST (4WD): 3-range Max Travel Speed (Forward) 19 mph (eHydro); 16.4 mph (PowrReverser) F (2WD gear), DT (4WD gear): 13.2 mph; HST (4WD): 14.1 mph Max Travel Speed (Reverse) 19 mph (eHydro); 16.4 mph (PowrReverser) F (2WD gear), DT (4WD gear): 13.1 mph; HST (4WD): 12.7 mph Clutch Multiple stage wet disc, 4.4 in (PowrReverser) Dry type single stage Differential Lock & Limited Slip Options Mechanical rear differential lock Rear differential lock standard ▶ Chassis, Steering & ControlsFrame Type Two-post folding ROPS; cab optional; MFWD standard Two-post foldable ROPS (factory certified) with retractable seat belt Steering Hydrostatic power steering Integral power steering Brakes Wet disk Mechanical wet disc type, pedals can be locked together Seat Suspension & Adjustability Not Published Not Published Front Axle Type Mechanical front wheel drive (MFWD), standard, all ranges F (2WD gear): Tubular steel, non-adjustable tread spacing; DT (4WD gear), HST (4WD): Bevel gear front axle, non-adjustable tread spacing Front Axle Rating 1587 to 3197 lb 2865 lb (at 41.3 in tread, 2WD and 4WD models) Drawbar Capacity 562 lb 730 lb ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 120.2 in F (2WD gear): 119.1 in; DT (4WD gear), HST (4WD): 116.3 in Overall Width 52.4 in (minimum, R1 tires); 68.4 in (maximum, R1 tires) 55.1 in Wheelbase 68 in 63.3 in Ground Clearance Not Published F (2WD gear): 13.6 in; DT (4WD gear), HST (4WD): 13.5 in Min. Turn Radius without Brakes Not Published F (2WD gear): 8.9 ft; DT (4WD gear), HST (4WD): 10.5 ft Height to Top of ROPS 93.3 in 91.7 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model 89.4 in Not Published ▶ WeightTractor Weight (Base) 2900 lb (open station); 3570 lb (cab) F (2WD gear): 2557 lb; DT (4WD gear): 2734 lb; HST (4WD): 2778 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 bar tread, R3 turf, R4 industrial and golf tires available on all models R1 Agricultural (standard); R3 Turf; R4 Industrial (4WD) R1 Agricultural - Front 7.00-14 F (2WD gear): 5-15 (7.5L-15 optional); DT (4WD gear), HST (4WD): 7.2-16 R1 Agricultural - Rear 11.2-24 11.2-24 R3 Turf - Front 27x8.50-15 F (2WD gear): 23x8.5-12; DT (4WD gear), HST (4WD): 25x8.5-14 R3 Turf - Rear 41x14.00-20 13.6-16 R4 Industrial - Front 25x8.50-14 or 27x8.50-15 27x8.5-15 (4WD) R4 Industrial - Rear 43x16.00-20 or 15.00-19.5 15-19.5 (4WD) ▶ Loader & AttachmentsQuick Attach Loader System John Deere quick-attach (Quik-Park); skid-steer style carrier optional on 300CX LA525: 2-Lever Quick Coupler, no tools required to attach and detach loader Loader Model 300X; 300CX; H160; H165; 300R; 320R LA525 Loader Lift Height 300X: 90 in; 300CX: 102 in; H160: 90 in; H165: 102 in; 300R: 90 in; 320R: 102 in LA525: 94.3 in Loader Lift Capacity (Full Height) 300X: 1360 lb; 300CX: 1598 lb; H160: 1360 lb; H165: 1598 lb; 300R: 1360 lb; 320R: 1598 lb (to maximum height at pivot pin) LA525: 1131 lb Loader Breakout Force 300X: 2855 lbf; 300CX: 3327 lbf; H160: 2855 lbf; H165: 3327 lbf; 300R: 2855 lbf; 320R: 3327 lbf (at pivot pin) LA525: 2462 lbf ▶ WarrantyWarranty Length & Coverage Not Published 24 months or 1500 hours (general)
