John Deere 4052M eHydro vs John Deere 5045E | Side-by-side comparison | ITC Resource Center
Compare Tractors

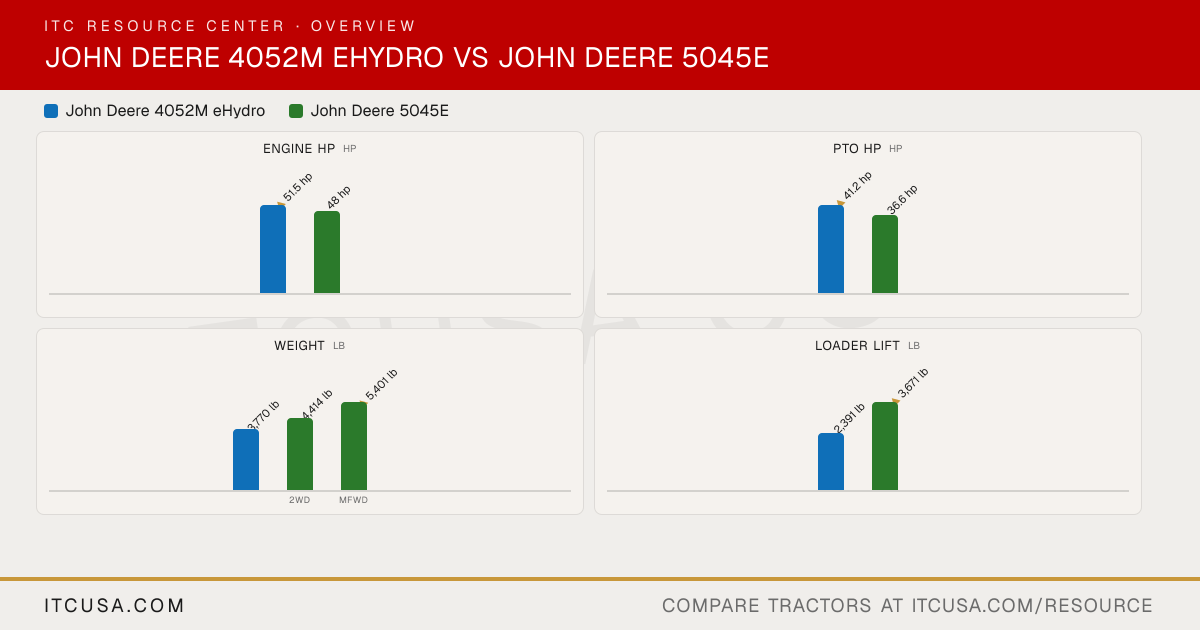

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere4052M eHydro
John Deere5045E
Engine Manufacturer
Yanmar
John Deere
Engine Model
4TNV86CT-MJT
John Deere PowerTech 3029
Engine Type
Turbocharged 4-cylinder Diesel
Diesel, turbocharged, liquid-cooled
No. of Cylinders
4
3
Displacement
127.6 in³
179 in³
Rated Engine Speed
2600 rpm
2100 rpm
Engine Power (Gross)
50.8 hp
50 hp
PTO Power
41.2 hp
37 hp
Engine Emissions Constraints
Tier 4
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dual element (dry type with safety element)
Dry Type Air Cleaner with Safety Element
Fuel System
High-pressure common rail direct injection
Not Published
Alternator
75 A
40 A
Pump Type
Dual Independent
Not Published
Implement Flow
10.2 gpm
11.4 gpm
Steering Flow
5.7 gpm
6.8 gpm
Total Hydraulic Flow
15.9 gpm
18.2 gpm
Overall Hydraulic Pump Flow
15.9 gpm
18.2 gpm
Hydraulic System Type
Open center
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
Not Published
1
No. of Optional Remote Valves
3rd, 4th, and 5th optional (up to 5 total)
2
Fuel Tank Capacity
13 gal
19.6 gal
Coolant Capacity
6.3 qt
10 qt
Crankcase Capacity
5.7 qt (with filter)
9 qt
Transmission / Hydraulic System Capacity
12.5 gal
10.3 gal
Front Axle Fluid Capacity
Standard: 5.8 qt; Heavy Duty: 8.5 qt
MFWD Dana axle: 1.18 gal differential housing, 0.21 gal each wheel hub; MFWD Carraro axle: 1.03 gal differential housing, 0.15 gal each side reduction gear
PTO Type
Independent 540
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
No mid-PTO offered
Not Published
Category, 3-Point Hitch
Category I
Category II, convertible to I
Hitch Lift Capacity
3,130 lb
Not Published
Hitch Lift Capacity (at 24”)
2,500 lb
3,192 lb
Lift Control Type
Position control
Position control with top link draft sensing
Transmission Type
3F/3R Hydrostatic (eHydro)
SyncShuttle
No. of Speeds
Infinitely-variable, 3 range
9F/3R
Max Travel Speed (Forward)
18.6 mph
Not Published
Max Travel Speed (Reverse)
18.6 mph
Not Published
Clutch
n/a
Dry
Differential Lock & Limited Slip Options
Differential lock: standard, rear
Mechanical, pedal controlled
Frame Type
ROPS - Foldable
Not Published
Steering
Power
Hydrostatic power steering
Brakes
Wet disc
Hydraulically Actuated Wet Disk Brakes, Self-Equalizing and Self-Adjusting
11.5 ft (2WD); 15.3 ft (4WD); 12.8 ft (4WD, Carraro axle)
Height to Top of ROPS
100.2 in
94.4 in
Height to Top of ROPS (folded)
80.5 in
75.8 in
Height to Top of Cab Model
Not Published
Not Published
Overall Length
130.6 in (with 3-point hitch)
137.8 in
Tractor Weight (Base)
3,770 lb (operating weight)
2WD: 4,414 lb; MFWD: 5,401 lb
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
Not Published
Tire Size & Options
R1 Bar, R3 Turf, R4 Industrial
Not Published
R1 Agricultural - Front
8.00-16 (6PR)
MFWD: 9.5-24
R1 Agricultural - Rear
13.6-28
13.6-28
R3 Turf - Front
27X10.50-15
9.5-16
R3 Turf - Rear
44X18.00-20 (4PR)
21.5L-16.1; 22.5LL-16.1 (Turf Special)
R4 Industrial - Front
10-16.5 (6PR, R4 Industrial, 2 Position)
12.5/80-18
R4 Industrial - Rear
16.9-24 (6PR, R4 Industrial, 2 Position)
16.9-24
Quick Attach Loader System
400E loader: a dealer parking kit allows the loader to be attached and detached; without it the loader is fixed and cannot be detached; optional parking stands
H240 (NSL or MSL); 520M
Loader Model
400E
H240NSL
Loader Lift Height
400E: 112 in (to pivot pin)
131 in
Loader Lift Capacity (Full Height)
400E: 2,396 lb (at pivot, full height)
3,671 lb
Loader Breakout Force
400E: 3,853 lbf at pivot; 2,902 lbf at 19.7 in ahead of pivot
4,504 lb
Warranty Length & Coverage
Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours
