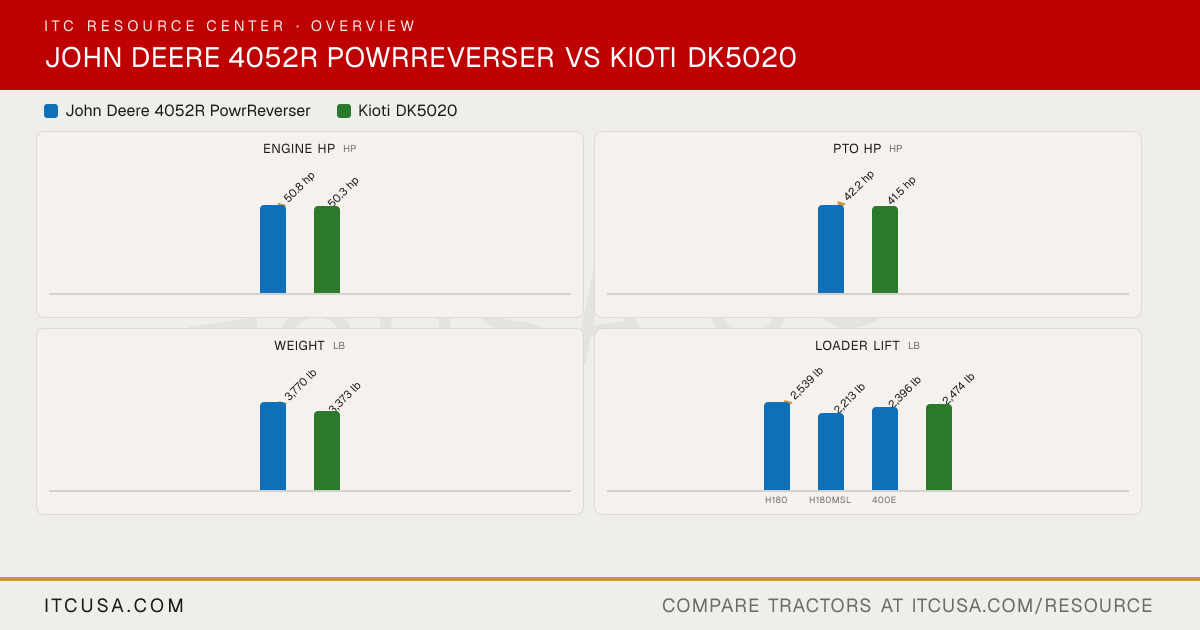

▶ EngineEngine Manufacturer Yanmar KIOTI Engine Model 4TNV86CT-MJT 3HT-TM4B Engine Type Turbocharged 4-cylinder Diesel 3-cylinder, liquid-cooled diesel No. of Cylinders 4 3 Displacement 127.6 in³ 111.4 in³ Rated Engine Speed 2600 rpm 2600 rpm Engine Power (Gross) 50.8 hp 50.3 hp PTO Power 42.2 hp 41.5 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dual element (dry type with safety element) Not Published Fuel System High-pressure common rail direct injection Not Published Alternator 75 A, 12 V Not Published ▶ HydraulicsPump Type Dual Independent Gear Implement Flow 10.2 gpm 9.62 gpm Steering Flow 5.7 gpm 4.94 gpm Total Hydraulic Flow 15.9 gpm 14.56 gpm Overall Hydraulic Pump Flow 15.9 gpm 14.56 gpm Hydraulic System Type Open center Not Published Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published None (2 optional) No. of Optional Remote Valves 3rd, 4th, and 5th optional (up to 5 total) 2 ▶ Fluid CapacityFuel Tank Capacity OOS: 15 gal; Cab: 14.7 gal 11.9 gal Coolant Capacity OOS: 6.8 qt; Cab: 8.0 qt 0.89 gal Crankcase Capacity 5.6 qt (with filter) 1.95 gal Transmission / Hydraulic System Capacity 12.5 gal 11.4 gal Front Axle Fluid Capacity 5.3 qt 1.48 gal ▶ PTO & HitchPTO Type Independent, 540 rpm (wet disc clutch) Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability No mid-PTO offered Optional (2,000 rpm) Category, 3-Point Hitch Category I Category I Hitch Lift Capacity 3,130 lb 2,998 lb (at lower link ball) Hitch Lift Capacity (at 24”) 2,500 lb 2,716 lb Lift Control Type Position control Position ▶ Transmission & DrivetrainTransmission Type Standard: eHydro (3-range hydrostatic); Optional: 12F/12R PowrReverser Synchronized shuttle No. of Speeds 12F/12R 8F/8R Max Travel Speed (Forward) 18.6 mph 16.71 mph Max Travel Speed (Reverse) 18.6 mph 16.28 mph Clutch Wet disk, PowrReverser Dry single stage Differential Lock & Limited Slip Options Differential lock Rear differential lock (standard) ▶ Chassis, Steering & ControlsFrame Type ROPS - Foldable Not Published Steering Power Hydrostatic power steering Brakes Wet disc Wet multi-disc Seat Suspension & Adjustability Deluxe adjustable vinyl seat with armrests and swivel Deluxe suspension seat Front Axle Type Mechanical front wheel drive (MFWD) - Standard Mechanical 4WD Front Axle Rating (Continuous) 3,307 lb Not Published Drawbar Capacity Max vertical load 1,103 lb 1,655 lb (max. drawbar vertical load) ▶ Dimensions & ManeuverabilityOverall Width 78.2 in 62.8 in Wheelbase 73.0 in 71.3 in Ground Clearance Front axle: 15.6 in 14.5 in Min. Turn Radius without Brakes 17.1 ft 102.7 in (with brake applied) Height to Top of ROPS 100.2 in 96.8 in Height to Top of ROPS (folded) 80.5 in Not Published Height to Top of Cab Model 97.4 in Not Published Overall Length 130.6 in (with 3-point hitch) 124.3 in (with 3-point hitch) ▶ WeightTractor Weight (Base) 3,770 lb (operating weight) 3,373 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Bar, R3 Turf, R4 Industrial Agricultural, Industrial, Turf, R14 R1 Agricultural - Front 8-16 (6PR) 8-16 R1 Agricultural - Rear 13.6-28 13.6-24 R3 Turf - Front 27X10.50-15 29-12.5-15 R3 Turf - Rear 44X18.00-20 (4PR) 21.5L-16.1 R4 Industrial - Front 10-16.5 (6PR) 10-16.5 R4 Industrial - Rear 16.9-24 (6PR) 14.9-24 ▶ Loader & AttachmentsQuick Attach Loader System Quik-Park easy-to-attach/detach loader Quick attach (QA) bucket, 66 in Loader Model 440R or 440R MSL; 400E on open-station tractors KL5520 Loader Lift Height 440R: 110 in; 400E: 112 in (to pivot pin) KL5520: 107.7 in (to pivot point) Loader Lift Capacity (Full Height) 440R (H180): 2,539 lb; 440R MSL (H180MSL): 2,213 lb; 400E: 2,396 lb (at pivot, full height) KL5520: 2,474 lb (at pivot pins) Loader Breakout Force 400E: 3,853 lbf at pivot; 2,902 lbf at 500 mm forward of pivot; 440R (non self-leveling): 4,027 lbf at pivot; 3,037 lbf at 500 mm forward of pivot KL5520: 3,895 lb (at pivot pins) ▶ WarrantyWarranty Length & Coverage Basic 24 months or 2,000 hours; powertrain 72 months or 2,000 hours Non-commercial: basic 24 months, unlimited hours, parts and labor, 0% deductible; powertrain 72 months, unlimited hours ▶ ITC Company AccessoriesAccessories that fit None tagged yet
