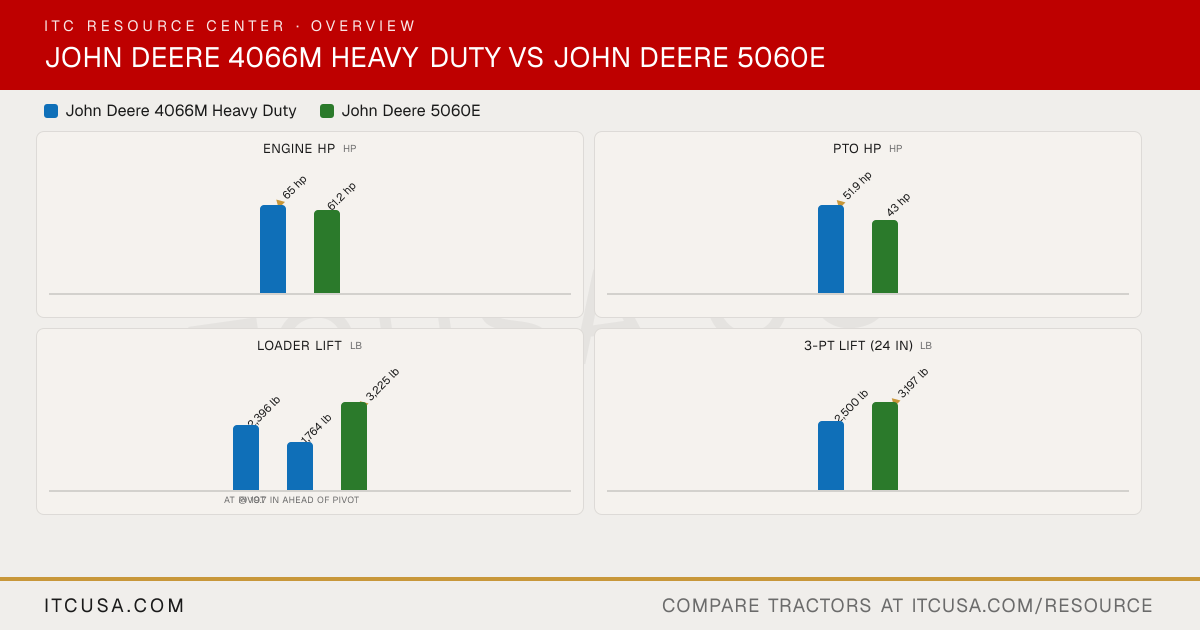

▶ EnginePTO Power 51.9 hp 43 hp Alternator 75 A, 12 V 60 A, 12 V Air Cleaner Dual element Dry type air cleaner with safety element Engine Type Diesel Diesel, turbocharged and aftercooled Fuel System High-pressure common rail direct injection Electronically controlled, high-pressure common rail Displacement 127.6 in³ 179 in³ No. of Cylinders 4 3 Rated Engine Speed 2600 rpm 2100 rpm Cooling System Type Liquid Liquid-cooled Engine Manufacturer Yanmar John Deere PowerTech 3029 EWR Engine Power (Gross) 65 hp @ 600 rpm 61.2 hp @ 100 rpm Engine Emissions Constraints Tier 4 Tier 4 ▶ WeightWeight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Applicable Not Published ▶ WarrantyWarranty Length & Coverage 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine) ▶ HydraulicsPump Type Single gear Tandem gear pump (implement + steering) Steering Flow 6.2 gpm 6.8 gpm Implement Flow 11.2 gpm 11.4 gpm Total Hydraulic Flow Not Published 18.2 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 11.4 gpm at a single rear SCV Overall Hydraulic Pump Flow Not Published 18.2 gpm No. of Optional Remote Valves Not Published 2 No. of Standard Remote Valves 2 1 ▶ PTO & HitchPTO Rear 540 rpm 540 @ 2083 engine rpm; 540E @ 1588 engine rpm (PowrReverser) PTO Type Independent (electrohydraulic) Independent PTO: 540 (SyncShuttle); 540/540E (PowrReverser) Lift Control Type Position control Position control with draft control; adjustable rate of drop Hitch Lift Capacity Not Published 3,968 lb @ hitch points Mid-PTO Availability Available Not Applicable Category, 3-Point Hitch Category 1/2 (telescopic) Category II; convertible to Category I Hitch Lift Capacity (at 24”) 2,500 lb 3,197 lb @ 24 in behind hitch balls ▶ Tire OptionsR3 Turf - Rear Not Published 41X14.00-20 4PR R3; 44X18.00-20 4PR R3 (Premium) R3 Turf - Front Not Published 33X15.50-15 6PR R3; 33X12.50-15 6PR R3; 29X12.5-15 4PR R3 (Premium) Tire Size & Options R4 Industrial R1 Ag / R3 Turf / R4 Industrial / Snow R4 Industrial - Rear 16.9-24 (8PR) or 5.2 gal-24 (10PR) 4.6 gal-24 8PR R4; 5.2 gal-24 8PR R4; 16.9-30 10PR R4; 43X16.00-20 R4; 43X16.00-20 R4 (Premium); 18.4-30 10PR R4 R4 Industrial - Front 31.5X13.00-16.5 (10PR) 27/12LL-15 6PR R4; 10-16.5 8PR R4; 28X8.50-15 8PR R4; 12.5/80-18 12PR R4 R1 Agricultural - Rear Not Published 14.9-28 6PR R1; 16.9-28 6PR R1; 16.9-30 6PR R1; 18.4-30 6PR R1; 460/85R30 R1; 460/85R30 R1W R1 Agricultural - Front Not Published 9.5-24 10PR R1; 12.4-24 8PR R1; 320/85R24 R1; 320/85R24 R1W ▶ Fluid CapacityCoolant Capacity Open station: 6.8 qt; Cab: 8.0 qt (if equipped) Open operator station: 2.85 gal; Cab: 3.08 gal Crankcase Capacity 5.6 qt (with filter) 9.0 qt (with filter) Fuel Tank Capacity Open station: 15.0 gal; Cab: 14.7 gal (if equipped) Open operator station: 15.6 ± 0.44 gal (71 ± 0.5 gal); Cab: 17.59 ± 0.44 gal (80 ± 0.5 gal) Front Axle Fluid Capacity 5.3 qt DANA: 1.18 gal diff + 0.21 gal per hub; Carraro: 1.03 gal diff + 0.15 gal per side Transmission / Hydraulic System Capacity 12.5 gal 8.36 gal (9x3); 9.46 gal (12x12) ▶ Loader & AttachmentsLoader Lift Height 112.1 in 124 in Loader Breakout Force At pivot: 3,853 lbf; @ 19.7 in ahead of pivot: 2,902 lbf 4,354 lb (measured at pivot) Quick Attach Loader System Rigid mounted with parking kit available; Parking stand kit BW16127 (parkable) Parkable loader (parking system; no tools required for removal/installation); optional John Deere skid steer attachment carrier (tool-free attachment changes) Loader Lift Capacity (Full Height) At pivot: 2,396 lb; @ 19.7 in ahead of pivot: 1,764 lb 3,225 lb (measured at pivot) ▶ Transmission & DrivetrainClutch Wet; wet clutch disk diameter 5.08 in Dual clutch, 11 in (PowrReverser) No. of Speeds eHydro: Infinitely-variable, 3 range; PowrReverser: 12F/12R 9 forward / 3 reverse (SyncShuttle); 12 forward / 12 reverse (PowrReverser) Transmission Type Standard: eHydro (eHST), 3-range hydrostatic; Optional: 12/12 PowrReverser (PRT) SyncShuttle 9F/3R (standard); PowrReverser 12F/12R (optional) Max Travel Speed (Forward) 18.6 mph 15.5 mph (SyncShuttle); 20.5 mph (PowrReverser) Max Travel Speed (Reverse) 18.6 mph 14.2 mph (SyncShuttle); 22.3 mph (PowrReverser) Differential Lock & Limited Slip Options Differential lock: Yes Mechanical differential lock (pedal) ▶ Chassis, Steering & ControlsBrakes Multi-plate wet disc Hydraulically actuated wet disk brakes (oil-immersed) Steering Hydrostatic power steering Hydrostatic power steering Frame Type ROPS - Foldable Not Published Front Axle Type Mechanical front wheel drive (MFWD) - Standard; engagement On-the-Go 2WD (standard) or MFWD (optional) Drawbar Capacity Max vertical load 1103 lb 1,675 lb (fully extended); 2,470 lb (short position) Front Axle Rating (Continuous) 3307 lb Up to 9,612 lb (max permissible MFWD axle load w/ loader; varies by tire) Seat Suspension & Adjustability Not Published Mechanical suspension with weight adjustment; fore/aft and backrest angle adjustment ▶ Dimensions & ManeuverabilityWheelbase 73.0 in 80.7 in Overall Width 71.3 in Not Published Ground Clearance Front axle: 15.2 in; Drawbar support: 14.5 in Not Published Height to Top of ROPS 91.1 in Not Published Height to Top of Cab Model Not Applicable Not Published Height to Top of ROPS (folded) 65.9 in Not Published Min. Turn Radius without Brakes 17.1 ft (5.2 m) 137.8 in (2WD); 183.1 in (4WD); 153.5 in (4WD, Carraro axle) Overall Length with 3-Point Hitch 134.7 in 143.3 in
