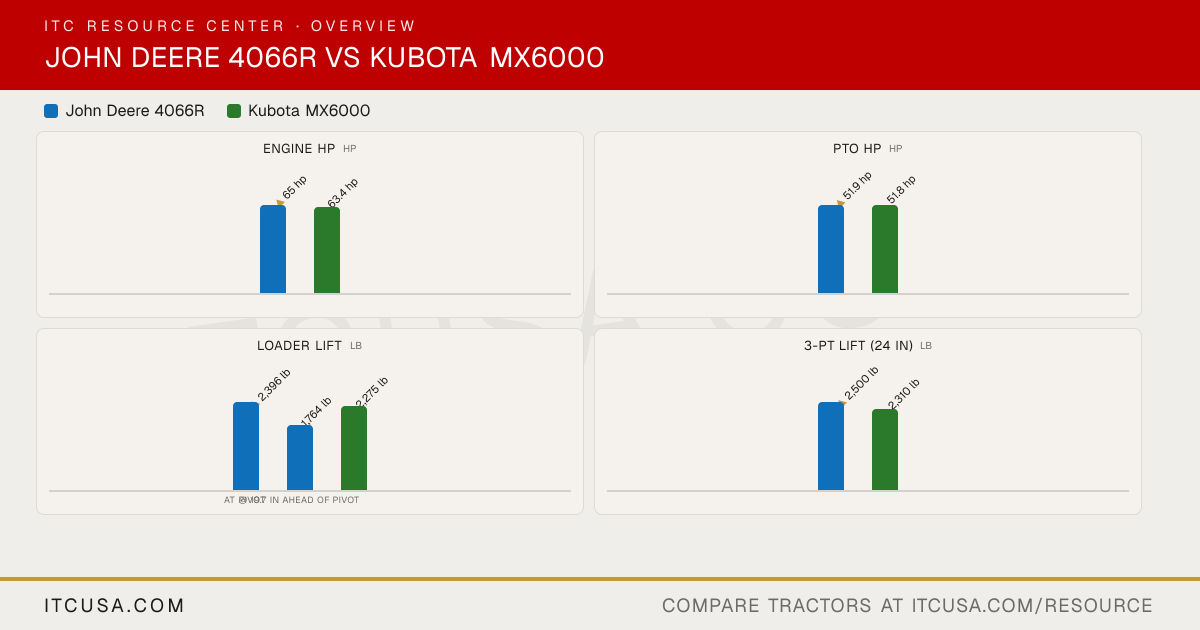

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Non-Commercial Home & Residential Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 72 months or 2000 hours. Commercial Use - Basic Standard Limited: 24 months or 1500 hours; Limited Powertrain: 36 months or 2000 hours.
Pump Type
Single gear
Gear
Steering Flow
6.2 gpm
4.9 gpm
Implement Flow
11.2 gpm
9.5 gpm
Total Hydraulic Flow
17.4 gpm
14.4 gpm
Hydraulic System Type
Open center
Open Center
Rear Remote Hydraulic Flow
Not Published
Not Published
Overall Hydraulic Pump Flow
17.4 gpm
14.4 gpm
No. of Optional Remote Valves
Up to 6 rear remotes
Maximum 3 (opt)
No. of Standard Remote Valves
Not Published
Not Published
PTO Rear
540 rpm
540 rpm
PTO Type
Independent (electrohydraulic)
Live independent, hydraulic PTO with PTO brake, wet clutch
Lift Control Type
Position control
Position (std), Draft (opt)
Hitch Lift Capacity
3,130 lb
Not Published
Mid-PTO Availability
Available
Not Published
Category, 3-Point Hitch
Category 1 (limited)
I & II
Hitch Lift Capacity (at 24”)
2,500 lb
2310 lbs
R3 Turf - Rear
44X18.00-20 (4PR)
Not Published
R3 Turf - Front
27X10.50-15
Not Published
Tire Size & Options
R1 Bar, R3 Turf, R4 Industrial
Standard tire size
R4 Industrial - Rear
420/85D24
Not Published
R4 Industrial - Front
260/70D16.5
Not Published
R1 Agricultural - Rear
13.6-28 (6PR) or 380/70R28 or 360/80R28
14.9-26
R1 Agricultural - Front
8.00-16 (10PR) or 280/70R16 or 250/75R16
9.5-16
Coolant Capacity
Open station: 6.8 qt; Cab: 8.0 qt (if equipped)
Not Published
Crankcase Capacity
5.6 qt (with filter)
Not Published
Fuel Tank Capacity
Open station: 15.0 gal; Cab: 14.7 gal (if equipped)
ROPS: 13.5 gal; CAB: 11.9 gal
Front Axle Fluid Capacity
5.3 qt
Not Published
Transmission / Hydraulic System Capacity
12.5 gal
Not Published
Loader Lift Height
112.1 in
111.2 in
Loader Breakout Force
At pivot: 3,853 lbf; @ 19.7 in ahead of pivot: 2,902 lbf
3102 lb (13798 N)
Quick Attach Loader System
Rigid mounted with parking kit available; Parking stand kit BW16127 (parkable)
1065A: 2-Lever Quick Coupler for Loader Attachment
Loader Lift Capacity (Full Height)
At pivot: 2,396 lb; @ 19.7 in ahead of pivot: 1,764 lb
