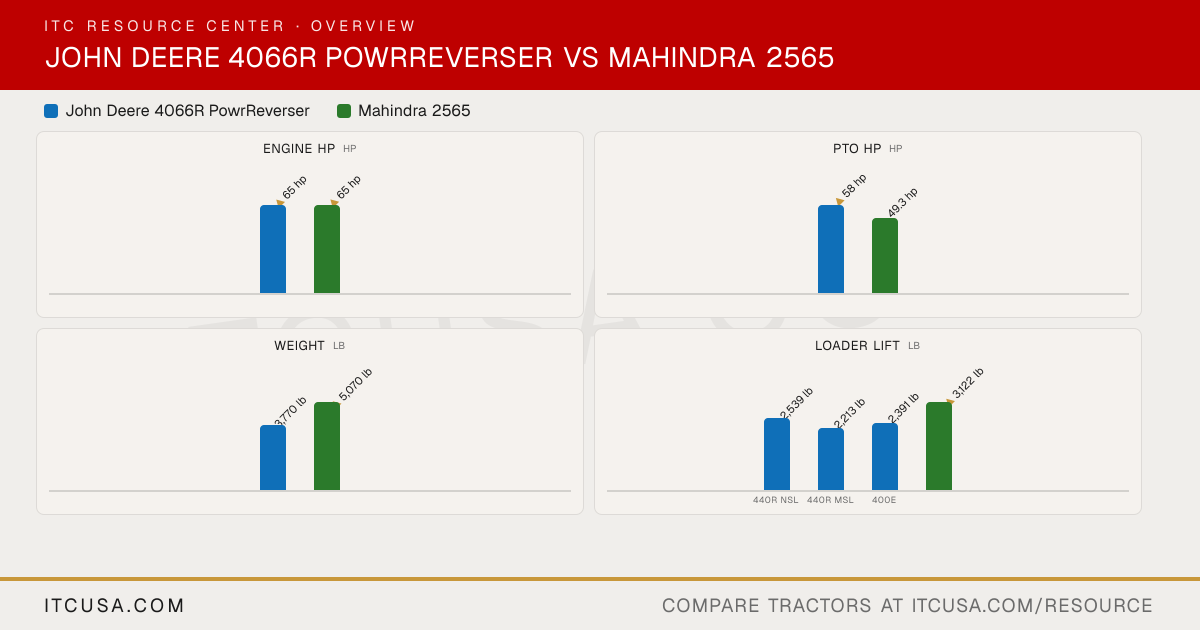

▶ EngineEngine Manufacturer Yanmar Mahindra Engine Model 4TNV86CHT-MJT Not Published Engine Type Turbocharged 4-cylinder Diesel Turbocharged and intercooled, direct injection diesel No. of Cylinders 4 3 Displacement 127.6 in³ 161.5 in³ Rated Engine Speed 2600 rpm 2300 rpm Engine Power (Gross) 65 hp 65 hp PTO Power 58 hp 49.3 hp Engine Emissions Constraints Tier 4 Tier 4 Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dual element (dry type with safety element) Not Published Fuel System High-pressure common rail direct injection Turbocharged and intercooled, direct injection Alternator 75 A, 12 V 90 A, 12 V ▶ HydraulicsPump Type Dual Independent Not Published Implement Flow 10.2 gpm 11 gpm Steering Flow 5.7 gpm 5.4 gpm Total Hydraulic Flow 15.9 gpm 16.4 gpm (11 + 5.4, computed) Overall Hydraulic Pump Flow 15.9 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves Not Published 1 No. of Optional Remote Valves 3/4/5 optional Not Published ▶ Fluid CapacityFuel Tank Capacity OOS: 15 gal; Cab: 14.7 gal 18.5 gal Coolant Capacity OOS: 6.8 qt; Cab: 8.0 qt Not Published Crankcase Capacity 5.7 qt Not Published Transmission / Hydraulic System Capacity 12.5 gal Not Published Front Axle Fluid Capacity 5.8 qt Not Published ▶ PTO & HitchPTO Type Independent 540 Independent PTO Rear 540 rpm 540 rpm @ 2300 rpm Mid-PTO Availability No mid-PTO offered Not Published Category, 3-Point Hitch Category I CAT II with telescoping stabilizers and flex link ends Hitch Lift Capacity 3,130 lb 3,527 lb Hitch Lift Capacity (at 24”) 2,500 lb Not Published Lift Control Type Position control Position and draft control ▶ Transmission & DrivetrainTransmission Type PowrReverser 12F/12R Synchro shuttle with partial synchromesh No. of Speeds 12F/12R 12F/12R Max Travel Speed (Forward) 18.6 mph Not Published Max Travel Speed (Reverse) 18.6 mph Not Published Clutch Wet disc Single plate, dry Differential Lock & Limited Slip Options Rear differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type ROPS - Foldable Not Published Steering Power steering Hydrostatic power steering, tilt Brakes Wet disc Wet disc Seat Suspension & Adjustability Deluxe adjustable vinyl seat with arm rests, swivel and retractable seat belt; Air Seat Suspension Kit optional (open station) Adjustable suspension seat Front Axle Type Mechanical front wheel drive (MFWD) - Standard Not Published Front Axle Rating (Continuous) 3,307 lb Not Published Drawbar Capacity Max vertical load 1,103 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 78.2 in 71.5 in Wheelbase 73 in Not Published Ground Clearance Front axle: 15.6 in Not Published Min. Turn Radius without Brakes 9.84 ft (3.0 m) 12.5 ft Height to Top of ROPS 100.2 in Not Published Height to Top of ROPS (folded) 80.5 in Not Published Height to Top of Cab Model 97.4 in 99.2 in Overall Length 130.6 in (with 3-point hitch) 142 in ▶ WeightTractor Weight (Base) 3,770 lb (operating weight) 5,070 lb (2565 Shuttle Cab, operating weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 Bar, R3 Turf, R4 Industrial Ag, Industrial, Turf R1 Agricultural - Front 8-16 (6PR) 9.5x20 R1 Agricultural - Rear 13.6-28 14.9x28 R3 Turf - Front 27X10.50-15 LSW305-521 R3 Turf - Rear 44X18.00-20 (4PR) LSW570-648 R4 Industrial - Front 10-16.5 10.5/80x18 R4 Industrial - Rear 16.9-24 (6PR, R4 Industrial) 18.4x24 ▶ Loader & AttachmentsQuick Attach Loader System 440R: Quik-Park loader; 400E: non Quik-Park loader Not Published Loader Model 440R or 440R MSL; 400E on open-station tractors 2565CL Loader Lift Height 440R: 110 in; 400E: 112 in (to pivot pin) 2565CL: 115.4 in Loader Lift Capacity (Full Height) 440R NSL: 2,539 lb; 440R MSL: 2,213 lb; 400E: 2,391 lb (at pivot, full height) 2565CL: 3,122 lb (at pivot pin) Loader Breakout Force 400E: 3,853 lbf at pivot point; 2,902 lbf 500 mm forward of pivot point; 440R NSL: 4,027 lbf at pivot point; 3,037 lbf 500 mm forward of pivot pin; 440R MSL: 3,844 lbf at pivot point; 3,346 lbf 500 mm forward of pivot pin 2565CL: 5,225 lb (at pivot pin) ▶ WarrantyWarranty Length & Coverage Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours 7-year limited powertrain warranty
