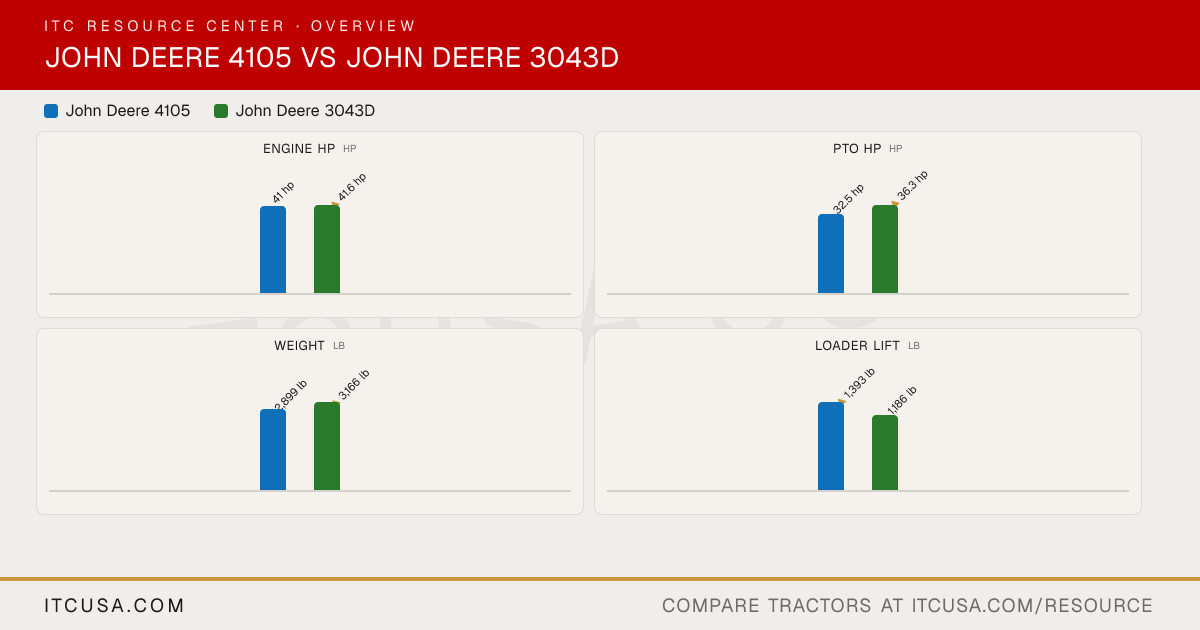

▶ EngineEngine Manufacturer Yanmar Yanmar Engine Model 3TNV84T-KJT 3TNV86CT-KJPT Engine Type 3-cylinder, direct injection, liquid-cooled diesel 4-cycle, inline, water-cooled diesel, turbocharged No. of Cylinders 3 3 Displacement 91.5 in³ 95.8 in³ Rated Engine Speed 2800 rpm 2800 rpm Engine Power (Gross) 41 hp 41.6 hp PTO Power 32.5 hp 36.3 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Liquid Air Cleaner Dry type with safety element Dry Fuel System Direct injection, self-bleeding in-line fuel pump, electric shutoff Direct injection Alternator 40 A 55 A, 12 V ▶ HydraulicsPump Type Dual tandem gear pump Two single-section external gear pumps, one either side of the engine Implement Flow 9.2 gpm 5.9 gpm Steering Flow 5.7 gpm 4.4 gpm Total Hydraulic Flow 14.8 gpm 10.3 gpm Overall Hydraulic Pump Flow 14.8 gpm 10.3 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 None No. of Optional Remote Valves Not Published Loader mast mounted SCV (optional); 4th/5th SCV (optional) ▶ Fluid CapacityFuel Tank Capacity 11.5 gal 9.7 gal Coolant Capacity 1.4 gal 1.3 gal Crankcase Capacity 4.5 qt 1.1 gal Transmission / Hydraulic System Capacity 8.3 gal 9.2 gal Front Axle Fluid Capacity 1.2 gal 1.0 gal ▶ PTO & HitchPTO Type Independent, wet disk clutch Transmission driven PTO Rear 540 rpm 540 rpm at 2800 rpm engine (rated) Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category 1 Category I Hitch Lift Capacity 2,530 lb Not Published Hitch Lift Capacity (at 24”) 2,200 lb 1,670 lb Lift Control Type Position control Position control ▶ Transmission & DrivetrainTransmission Type 2-range hydrostatic 8F/8R synchromesh shuttle shift gear transmission No. of Speeds Infinite forward and reverse, 2 ranges 8F/8R Max Travel Speed (Forward) 13 mph 12.9 mph Max Travel Speed (Reverse) 12.6 mph Not Published Clutch Wet disk Single dry traction (mechanical) Differential Lock & Limited Slip Options Ball, ramp and pin differential lock Differential lock: Yes ▶ Chassis, Steering & ControlsFrame Type Fixed ROPS; four-wheel drive standard Not Published Steering Hydrostatic power steering Power steering Brakes Wet disk Wet disk Seat Suspension & Adjustability Not Published Not Published Front Axle Type Mechanical front wheel drive (MFWD), standard, all ranges 4WD Front Axle Rating 3,197 lb 1,940 lb Drawbar Capacity 882 lb 1,102 lb (maximum static vertical load) ▶ Dimensions & ManeuverabilityOverall Width 63 in (minimum, R1 rear tires); 65.8 in (maximum, R4 rear tires) 57.3 in Wheelbase 68 in 62 in Ground Clearance 14.7 in (front axle) 14 in Min. Turn Radius without Brakes Not Published 6.9 ft (with brake applied) Height to Top of ROPS 87.6 in Not Published Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 120.2 in (with 3-point hitch) 111.2 in ▶ WeightTractor Weight (Base) 2,899 lb (with ROPS, 3-point hitch and all fluids) 2,800 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 bar tread (8.00-16 front, 14.9-24 rear) or R4 industrial (10.0-16.5 front, 17.5L-R24 rear) R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 8.00-16 7-14 R1 Agricultural - Rear 14.9-24 11.2-24 R3 Turf - Front Not Published 27X8.50-15 R3 Turf - Rear Not Published Not Published R4 Industrial - Front 10.0-16.5 25X8.50-14 R4 Industrial - Rear 17.5L-R24 15-19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Quick-change attachment carrier Loader Model 320R D160 Loader Lift Height H165: 103 in; 320R: 103 in 84 in (at pivot pin) Loader Lift Capacity (Full Height) 320R: 1,393 lb (to maximum height at pivot pin) 1,186 lb (at pivot point, maximum height) Loader Breakout Force H165: 3,769 lbf; 320R: 3,769 lbf (at pivot point) 1,704 lbf (at pivot point) ▶ WarrantyWarranty Length & Coverage 3-year / 2,000-hour limited warranty (as sold new) Basic 2 years or 2,000 hours; powertrain 6 years or 2,000 hours
