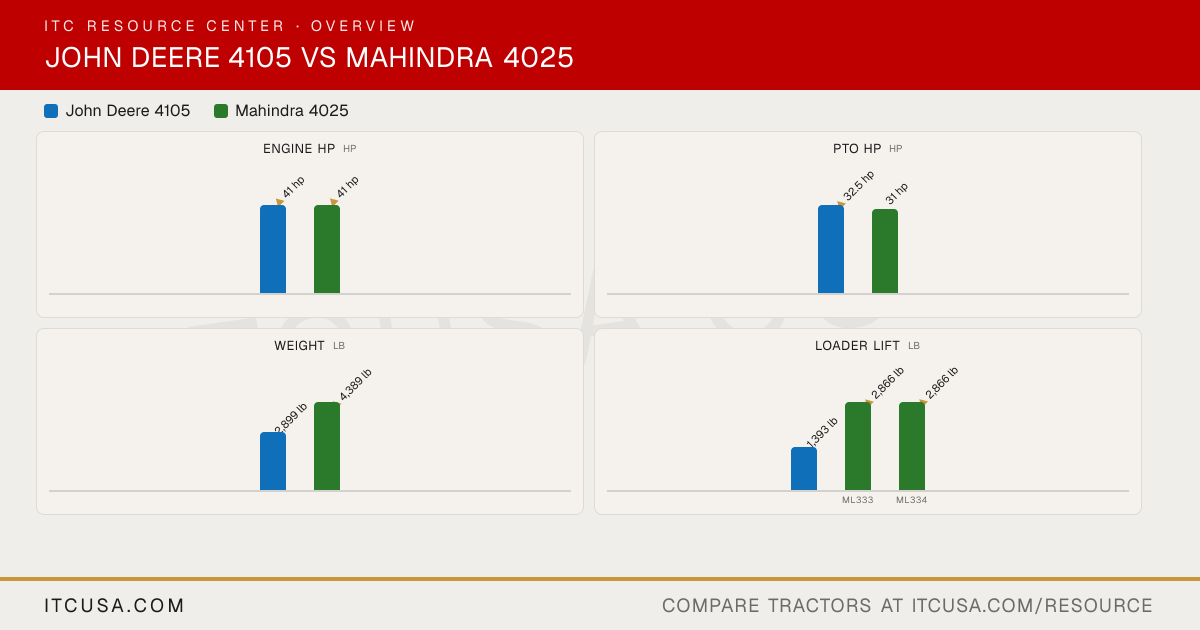

▶ EngineEngine Manufacturer Yanmar Mahindra Engine Model 3TNV84T-KJT MDI 2700R2 Engine Type 3-cylinder turbocharged liquid-cooled diesel, direct injection Four stroke, direct injection, water-cooled diesel No. of Cylinders 3 4 Displacement 91.5 in³ 167 in³ Rated Engine Speed 2800 rpm 2300 rpm Engine Power (Gross) 41 hp 41 hp PTO Power 32.5 hp 31 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Liquid-cooled Water-cooled Air Cleaner Dry type with safety element Not Published Fuel System Direct injection, self bleeding, in-line fuel pump with electric shutoff Direct injection Alternator 40 A 36 A, 12 V ▶ HydraulicsPump Type Dual tandem gear pump Not Published Implement Flow 9.2 gpm 8.29 gpm Steering Flow 5.7 gpm 5 gpm Total Hydraulic Flow 14.8 gpm 13.29 gpm (8.29 + 5, computed) Overall Hydraulic Pump Flow 14.8 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 Not Published No. of Optional Remote Valves Not Published 1 ▶ Fluid CapacityFuel Tank Capacity 11.5 gal 14.55 gal Coolant Capacity 1.4 gal Not Published Crankcase Capacity 4.5 qt Not Published Transmission / Hydraulic System Capacity 8.3 gal Not Published Front Axle Fluid Capacity 1.2 gal Not Published ▶ PTO & HitchPTO Type Independent, wet disk clutch Live PTO Rear 540 rpm 540 rpm @ 2058 rpm Mid-PTO Availability Not Published Not Published Category, 3-Point Hitch Category 1 CAT I and II adjustable, with telescopic stabilizers Hitch Lift Capacity Not Published 3527 lb (4025 2WD); 3525 lb (4025 4WD) Hitch Lift Capacity (at 24”) 2200 lb Not Published Lift Control Type Position control Position and draft control ▶ Transmission & DrivetrainTransmission Type 2-range hydrostatic Sliding mesh No. of Speeds Infinite forward and reverse, 2 ranges 8F/2R Max Travel Speed (Forward) 13 mph 14.3 mph (4025 2WD); 17.6 mph (4025 4WD) Max Travel Speed (Reverse) 12.6 mph 6.0 mph (4025 2WD); 7.5 mph (4025 4WD) Clutch Wet disk Dual (2-stage) Differential Lock & Limited Slip Options Mechanical rear differential lock (ball, ramp and pin) Not Published ▶ Chassis, Steering & ControlsFrame Type Fixed ROPS; four-wheel drive standard Not Published Steering Hydrostatic power steering Hydrostatic power steering Brakes Wet disk Fully enclosed dry disc Seat Suspension & Adjustability Not Published Not Published Front Axle Type Mechanical front wheel drive (MFWD), standard, all ranges Not Published Front Axle Rating 3197 lb Not Published Drawbar Capacity 882 lb Not Published ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 120.2 in 115.3 in (4025 2WD); 129 in (4025 4WD) Overall Width 63 in (minimum, R1 rear tires); 65.8 in (maximum, R4 rear tires) 69.4 in (4025 2WD); 82 in (4025 4WD) Wheelbase 68 in Not Published Ground Clearance 14.7 in (front axle) Not Published Min. Turn Radius without Brakes Not Published 9.6 ft (4025 2WD); 10.5 ft (4025 4WD) Height to Top of ROPS 87.6 in 88.0 in (4025 2WD); 93.7 in (4025 4WD) Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published ▶ WeightTractor Weight (Base) 2899 lb 4389 lb (4025 2WD); 4950 lb (4025 4WD) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options R1 bar tread (8.00-16 front, 14.9-24 rear) or R4 industrial (10.0-16.5 front, 17.5L-24 rear) Ag (4025 2WD); Ag, Industrial (4025 4WD) R1 Agricultural - Front 8.00-16 6x16 (4025 2WD); 9.5x16 (4025 4WD) R1 Agricultural - Rear 14.9-24 12.4x28 R3 Turf - Front Not Published Not Published R3 Turf - Rear Not Published Not Published R4 Industrial - Front 10.0-16.5 12x16.5 (4025 4WD) R4 Industrial - Rear 17.5L-24 16.9x24 (4025 4WD) ▶ Loader & AttachmentsQuick Attach Loader System Not Published Not Published Loader Model 300CX ML333 (4025 2WD); ML334 (4025 4WD) Loader Lift Height H165: 103 in; 320R: 103 in ML333: 116.6 in; ML334: 116.6 in Loader Lift Capacity (Full Height) 300CX: 1393 lb (at full height, measured at pivot) ML333: 2,866 lb; ML334: 2,866 lb Loader Breakout Force H165: 3769 lbf; 320R: 3769 lbf; 300CX: 3769 lbf (at pivot point) ML333: 4,978 lb; ML334: 4,978 lb ▶ WarrantyWarranty Length & Coverage 3-year / 2,000-hour limited warranty (as sold new) 5-year powertrain warranty
