John Deere 4105 vs TYM 4215C | Side-by-side comparison | ITC Resource Center
Compare Tractors

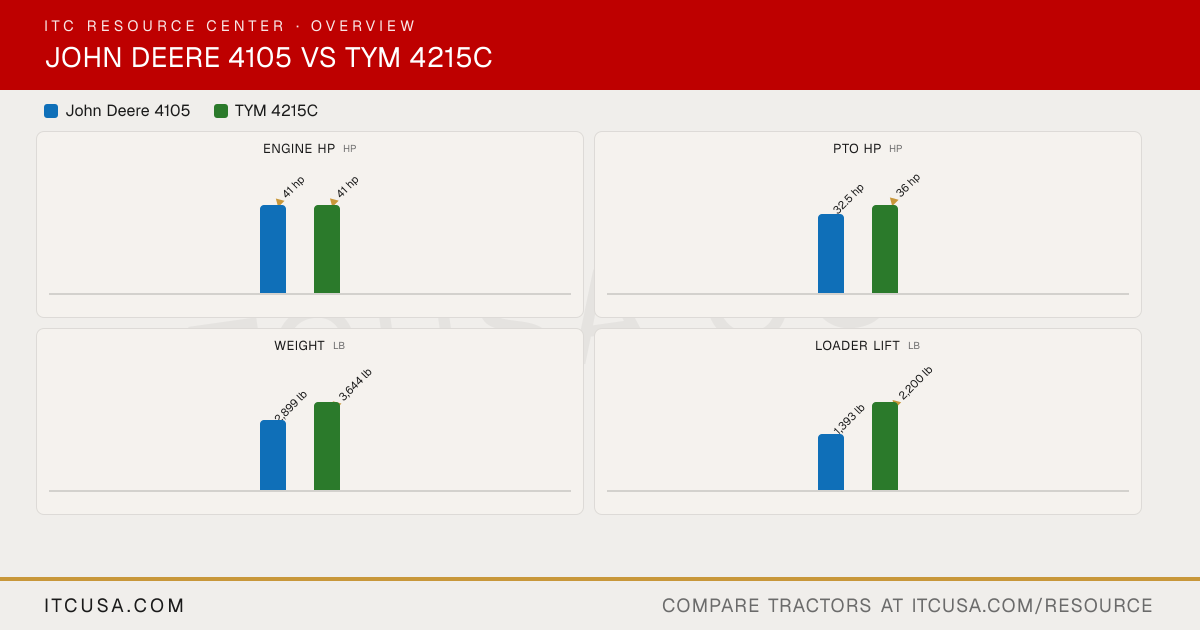

See horsepower, lift capacity, hydraulic flow, and the numbers that matter to your work. Up to 4 machines, side by side, in graphs built to show which tractor is better at what.
Every published spec, side by side, including the details the graphs above don't chart.
Spec
John Deere4105
TYM4215C
Engine Manufacturer
Yanmar
TYM
Engine Model
3TNV84T-KJT
T2000N2
Engine Type
3-cylinder, direct injection, liquid-cooled diesel
4-cylinder, naturally aspirated diesel
No. of Cylinders
3
4
Displacement
91.5 in³
139.5 in³
Rated Engine Speed
2800 rpm
2600 rpm
Engine Power (Gross)
41 hp
41 hp
PTO Power
32.5 hp
36 hp
Engine Emissions Constraints
Not Published
Tier 4
Cooling System Type
Liquid-cooled
Liquid-cooled
Air Cleaner
Dry type with safety element
Dry element
Fuel System
Direct injection, self-bleeding in-line fuel pump, electric shutoff
IDI
Alternator
40 A
70 A, 12 V
Pump Type
Dual tandem gear pump
Dual gear pump
Implement Flow
9.2 gpm
11.4 gpm
Steering Flow
5.7 gpm
5.2 gpm
Total Hydraulic Flow
14.8 gpm
16.5 gpm
Overall Hydraulic Pump Flow
14.8 gpm
16.5 gpm
Hydraulic System Type
Open center
Dual gear pump
Rear Remote Hydraulic Flow
Not Published
Not Published
No. of Standard Remote Valves
2
Rear: 0 (loader: 2)
No. of Optional Remote Valves
Not Published
Up to 4
Fuel Tank Capacity
11.5 gal
7.1 gal
Coolant Capacity
1.4 gal
5.8 qt
Crankcase Capacity
4.5 qt
4.8 qt
Transmission / Hydraulic System Capacity
8.3 gal
9.8 gal
Front Axle Fluid Capacity
1.2 gal
6.8 qt
PTO Type
Independent, wet disk clutch
Independent
PTO Rear
540 rpm
540 rpm
Mid-PTO Availability
Not Published
Not Published
Category, 3-Point Hitch
Category 1
Category I
Hitch Lift Capacity
2,530 lb
3,306 lb
Hitch Lift Capacity (at 24”)
2,200 lb
2,425 lb
Lift Control Type
Position control
Position control
Transmission Type
2-range hydrostatic
HST (hydrostatic)
No. of Speeds
Infinite forward and reverse, 2 ranges
3-range hydrostatic
Max Travel Speed (Forward)
13 mph
18 mph
Max Travel Speed (Reverse)
12.6 mph
17.95 mph
Clutch
Wet disk
Not Published
Differential Lock & Limited Slip Options
Ball, ramp and pin differential lock
Differential lock (standard)
Frame Type
Fixed ROPS; four-wheel drive standard
Not Published
Steering
Hydrostatic power steering
Hydrostatic
Brakes
Wet disk
Wet, multi-disc
Seat Suspension & Adjustability
Not Published
Suspension seat
Front Axle Type
Mechanical front wheel drive (MFWD), standard, all ranges
Not Published
Front Axle Rating
3,197 lb
Not Published
Drawbar Capacity
882 lb
Not Published
Overall Width
63 in (minimum, R1 rear tires); 65.8 in (maximum, R4 rear tires)
55.6 in
Wheelbase
68 in
65.7 in
Ground Clearance
14.7 in (front axle)
13.1 in
Min. Turn Radius without Brakes
Not Published
124.8 in (left); 121.3 in (right)
Height to Top of ROPS
87.6 in
Not Published
Height to Top of ROPS (folded)
Not Published
Not Published
Height to Top of Cab Model
Not Published
89.3 in
Overall Length
120.2 in (with 3-point hitch)
120.9 in (with 3-point hitch)
Tractor Weight (Base)
2,899 lb (with ROPS, 3-point hitch and all fluids)
3,644 lb (with cab)
Weight with ROPS and Loader
Not Published
Not Published
Weight with Cab and Loader
Not Published
4,652 lb (3,644 + 1,008, computed; BL150C loader total weight)
Tire Size & Options
R1 bar tread (8.00-16 front, 14.9-24 rear) or R4 industrial (10.0-16.5 front, 17.5L-R24 rear)
R1 Agricultural, R3 Turf, R4 Industrial
R1 Agricultural - Front
8.00-16
7-16
R1 Agricultural - Rear
14.9-24
11.2-24
R3 Turf - Front
Not Published
27x8.5-15, 6PR
R3 Turf - Rear
Not Published
41x14.00, 4PR
R4 Industrial - Front
10.0-16.5
25x8.5-14, 6PR
R4 Industrial - Rear
17.5L-R24
380/70-19.5, 6PR (standard); 15-19.5 (option)
Quick Attach Loader System
Not Published
BL150C: quick attachment assembly
Loader Model
320R
BL150C
Loader Lift Height
H165: 103 in; 320R: 103 in
BL150C: 104.9 in
Loader Lift Capacity (Full Height)
320R: 1,393 lb (to maximum height at pivot pin)
BL150C: 2,200 lb (at pivot pin)
Loader Breakout Force
H165: 3,769 lbf; 320R: 3,769 lbf (at pivot point)
BL150C: 3,422 lb (at pivot pin, ground level)
Warranty Length & Coverage
3-year / 2,000-hour limited warranty (as sold new)
Basic 24 months or 2,000 hours, parts and labor; non-commercial: powertrain 72 months or 3,000 hours; rental and commercial: powertrain 36 months or 2,000 hours; loaders and backhoes 12 months
