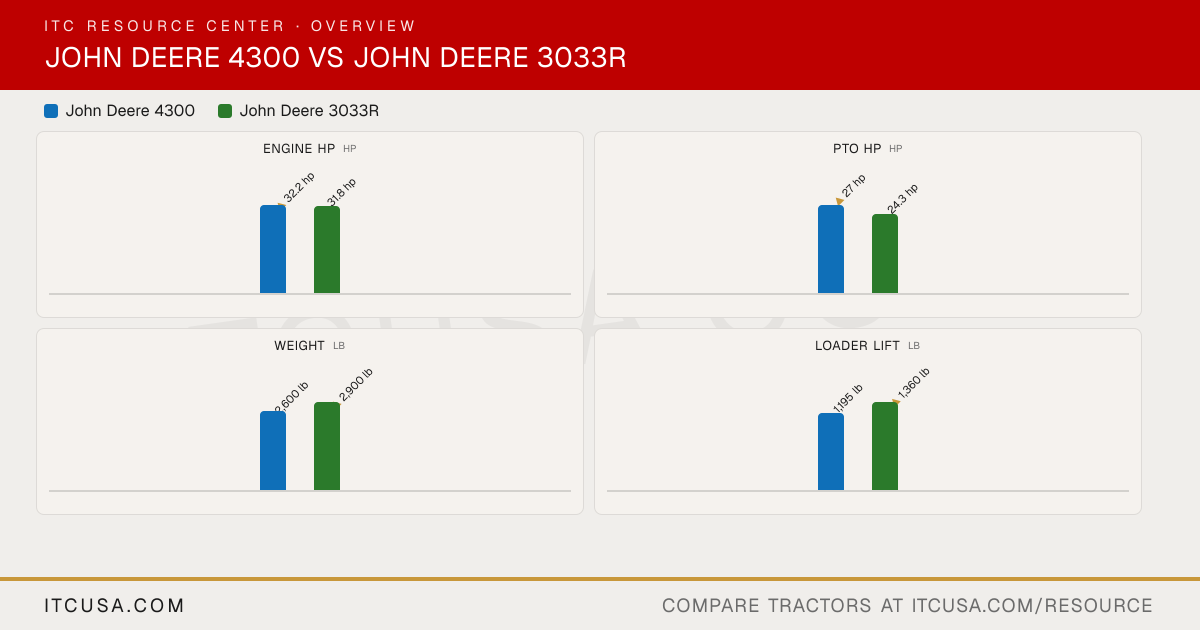

▶ EngineEngine Manufacturer Yanmar Yanmar Engine Model 3TNE84 3TNV88C-MJT Engine Type 3-cylinder liquid-cooled diesel, direct injection Diesel, turbocharged No. of Cylinders 3 3 Displacement 91.3 in³ 97.6 in³ Rated Engine Speed 2700 rpm 2600 rpm Engine Power (Gross) 32.2 hp 31.8 hp PTO Power 27 hp 24.3 hp Engine Emissions Constraints Not Published Tier 4 Cooling System Type Liquid-cooled Water pump Air Cleaner Dry type with safety element Dry type with safety element Fuel System Direct injection, self bleeding, in-line fuel pump with electric shutoff High pressure common rail direct injection (HPCR) Alternator 40 A 75 A, 12 V ▶ HydraulicsPump Type Dual gear pump Implement/steering pump: Dual gear; hydrostatic pump: PV axial piston Implement Flow 8.3 gpm 8.6 gpm Steering Flow 5.0 gpm 5.9 gpm Total Hydraulic Flow 13.3 gpm 14.4 gpm Overall Hydraulic Pump Flow 13.3 gpm 14.4 gpm Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published Not Published No. of Standard Remote Valves 2 Not Published No. of Optional Remote Valves Not Published Up to 6 rear remotes ▶ Fluid CapacityFuel Tank Capacity 10.0 gal Open station: 13.5 gal; Cab: 11.8 gal Coolant Capacity 6.1 qt 1.4 gal Crankcase Capacity 4.5 qt 1.1 gal Transmission / Hydraulic System Capacity 6.3 gal (gear); 6.8 gal (hydrostatic) 6.8 gal Front Axle Fluid Capacity 4.7 qt 1.3 gal ▶ PTO & HitchPTO Type Independent, wet disk clutch and brake Independent PTO Rear 540 rpm 540 rpm Mid-PTO Availability Available, 2100 rpm Optional (2100 rpm) Category, 3-Point Hitch Category 1 Limited Category I Hitch Lift Capacity Not Published 2530 lb at hitch ball Hitch Lift Capacity (at 24”) 2200 lb 2,194 lb at 24 in behind link arms Lift Control Type Not Published Position control ▶ Transmission & DrivetrainTransmission Type SyncShift 9F/3R gear (2WD and 4WD); SyncReverser 12F/12R (4WD only); hydrostatic 3-range (2WD and 4WD) three-range, infinitely variable No. of Speeds 9 forward, 3 reverse (SyncShift); 12 forward, 12 reverse (SyncReverser); infinite forward and reverse, 3 ranges (hydrostatic) infinite in 3 ranges Max Travel Speed (Forward) 15.6 mph (SyncShift); 15.6 mph (SyncReverser); 15.5 mph (hydrostatic) 18.50 mph Max Travel Speed (Reverse) 7.7 mph (SyncShift); 15.5 mph (hydrostatic) 18.50 mph Clutch One multi-disk wet clutch, 4.88 in (SyncShift); two multi-disk wet clutches, 4.88 in (SyncReverser) Not Applicable Differential Lock & Limited Slip Options Mechanical rear differential lock Differential lock: Yes ▶ Chassis, Steering & ControlsFrame Type Two-post fixed ROPS standard, folding ROPS optional; two- or four-wheel drive Foldable ROPS; cab or open station configurations available Steering Power steering, cylinder-assisted Hydrostatic power steering Brakes Wet disk Multi-plate wet disk Seat Suspension & Adjustability Not Published Standard seat: height/level/fore-aft adjustments; Deluxe seat: weight (air pressure) & fore-aft adjustments Front Axle Type 2WD standard; mechanical front wheel drive (MFWD) optional, all ranges Mechanical front wheel drive (MFWD) Front Axle Rating 1588 to 3197 lb 3196 lb Drawbar Capacity 562 lb 899 lbf ▶ Dimensions & ManeuverabilityOverall Length with 3-Point Hitch 117 in 120.2 in Overall Width 50.0 in (minimum); 66.7 in (maximum) 69.1 in Wheelbase 68.0 in 68.0 in Ground Clearance 13.4 in (rear axle) 12.2 in Min. Turn Radius without Brakes Not Published 8.8 ft (2.68 m, MFWD off) Height to Top of ROPS 84.0 in (standard ROPS); 90.0 in (folding ROPS) 93.3 in Height to Top of ROPS (folded) Not Published 72.0 in Height to Top of Cab Model Not Published 85.0 in ▶ WeightTractor Weight (Base) 2600 lb (2WD); 2900 lb (MFWD) 2900 lb Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Front: 5.00-15 F2 (2WD), 7.00-14 or 7.00-16 R1, 25x8.50-14 R4, 27x8.50-15 R3, 25-10.50LLx15 golf; rear: 11.2-24 or 12.4-24 R1, 11.2-24 or 41x14.00-20 R3, 15.00-19.5 R4, 41LLx18.00-16 golf R1 Bar, R3 Turf, R4 Industrial R1 Agricultural - Front 5.00-15 (2WD, F2); 7.00-14 or 7.00-16 (MFWD) 7-14 R1 Agricultural - Rear 11.2-24 or 12.4-24 11.2-24 R3 Turf - Front 27x8.50-15 (2WD); 7.00-14 (MFWD) 27X8.50-15 R3 Turf - Rear 41x14.00-20 or 11.2-24 41X14-20 R4 Industrial - Front 25x8.50-14 25X8.5-14 or 27X8.5-15 R4 Industrial - Rear 15.00-19.5 15-19.5 or 43X16-20 ▶ Loader & AttachmentsQuick Attach Loader System Not Published Quik-Park mounting system Loader Model 420; 430 H160 Loader Lift Height 420: 87.6 in; 430: 101.4 in 90 in Loader Lift Capacity (Full Height) 420: 1195 lb; 430: 1258 lb (to max height at pivot point) 1,360 lb at pivot; 999 lb @ 19.7 in ahead of pivot Loader Breakout Force 420: 2693 lbf; 430: 3299 lbf (at pivot point) 2,855 lb at pivot; 2,032 lb @ 19.7 in ▶ WarrantyWarranty Length & Coverage Not Published 6-year/2,000-hour powertrain; 2-year/2,000-hour basic (full machine)
