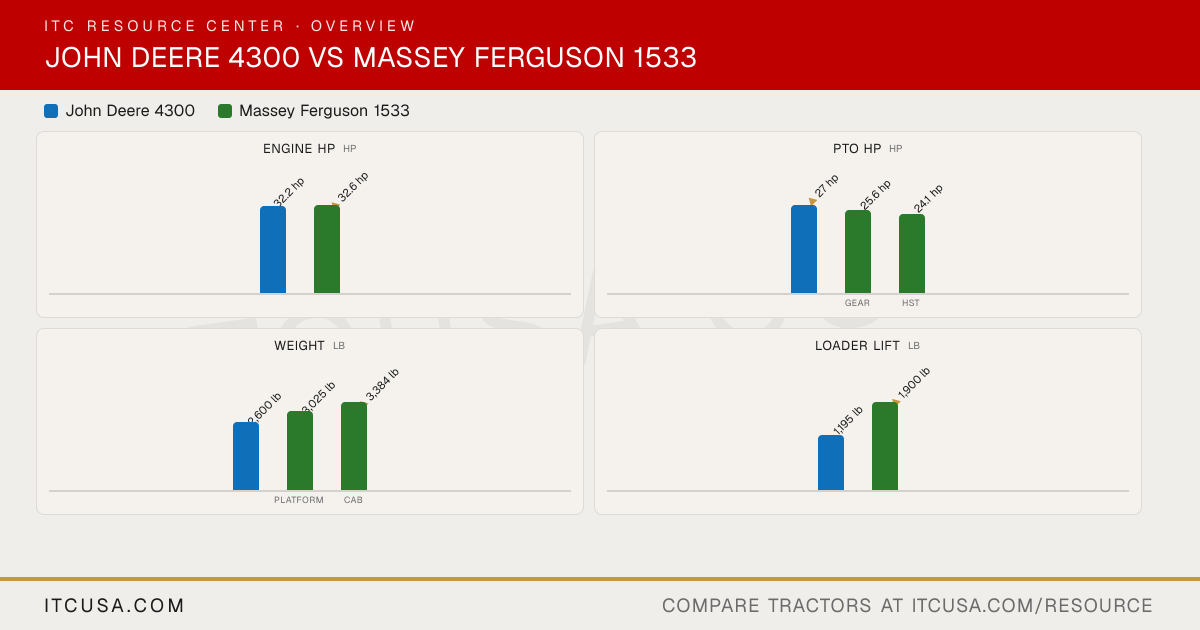

▶ EngineEngine Manufacturer Yanmar Iseki Engine Model 3TNE84 Not Published Engine Type 3-cylinder liquid-cooled diesel, direct injection 3-cylinder liquid-cooled diesel No. of Cylinders 3 3 Displacement 91.3 in³ 91.4 in³ Rated Engine Speed 2700 rpm 2600 rpm Engine Power (Gross) 32.2 hp 32.6 hp PTO Power 27 hp Gear: 25.6 hp; HST: 24.1 hp Engine Emissions Constraints Not Published Not Published Cooling System Type Liquid-cooled Liquid-cooled Air Cleaner Dry type with safety element Dry Fuel System Direct injection, self-bleeding in-line fuel pump, electric shutoff Not Published Alternator 40 A Not Published ▶ HydraulicsPump Type Dual gear pump Not Published Implement Flow 8.3 gpm 9.1 gpm Steering Flow 5.0 gpm SynchroShuttle: 4.9 gpm; HST and PowerShuttle: 6 gpm Total Hydraulic Flow 13.3 gpm SynchroShuttle: 14.0 gpm; HST and PowerShuttle: 15.1 gpm Overall Hydraulic Pump Flow 13.3 gpm Not Published Hydraulic System Type Open center Open center Rear Remote Hydraulic Flow Not Published 9.1 gpm No. of Standard Remote Valves 2 Not Published No. of Optional Remote Valves Not Published 2 spool optional ▶ Fluid CapacityFuel Tank Capacity 10.0 gal 10.6 gal Coolant Capacity 6.1 qt 7.1 qt Crankcase Capacity 4.5 qt 5 qt Transmission / Hydraulic System Capacity 6.3 gal (gear); 6.9 gal (hydrostatic) 32.8 qt Front Axle Fluid Capacity 4.7 qt 7.9 qt ▶ PTO & HitchPTO Type Independent, wet disk clutch and brake Independent, electro-hydraulic control PTO Rear 540 rpm 540 rpm Mid-PTO Availability Available, 2100 rpm Optional, 2000 rpm Category, 3-Point Hitch Category 1 Category I Hitch Lift Capacity Not Published 2,800 lb Hitch Lift Capacity (at 24”) 2,200 lb Not Published Lift Control Type Not Published Position control with rate of drop control ▶ Transmission & DrivetrainTransmission Type SyncShift 9F/3R gear (2WD and 4WD); SyncReverser 12F/12R (4WD only); hydrostatic 3-range (2WD and 4WD) 8x8 SynchroShuttle (platform only), 12x12 PowerShuttle, or 3-range hydrostatic with cruise (platform only) No. of Speeds 9 forward, 3 reverse (SyncShift); 12 forward, 12 reverse (SyncReverser); infinite forward and reverse, 3 ranges (hydrostatic) Not Published Max Travel Speed (Forward) 15.6 mph (SyncShift); 15.6 mph (SyncReverser); 15.5 mph (hydrostatic) Not Published Max Travel Speed (Reverse) 7.7 mph (SyncShift); 15.5 mph (hydrostatic) Not Published Clutch 1 multi-disk wet clutch, 4.88 in (SyncShift); 2 multi-disk wet clutches, 4.88 in (SyncReverser) Wet multi-disc (PowerShuttle) Differential Lock & Limited Slip Options Mechanical rear differential lock Not Published ▶ Chassis, Steering & ControlsFrame Type Standard ROPS or folding ROPS; 2WD or MFWD Semi-flat isolated platform, folding ROPS Steering Power steering, cylinder-assisted Power steering Brakes Wet disk Wet disc Seat Suspension & Adjustability Not Published Spring-suspension seat with forward/back and weight adjustment, retractable seat belt Front Axle Type 2WD standard; MFWD optional, all ranges 4WD front axle Front Axle Rating 1,588 to 3,197 lb Not Published Drawbar Capacity 562 lb Not Published ▶ Dimensions & ManeuverabilityOverall Width 50.0 in (minimum); 66.7 in (maximum) 62.0 in Wheelbase 68.0 in 70.0 in Ground Clearance 13.4 in (rear axle) 14.0 in Min. Turn Radius without Brakes Not Published Not Published Height to Top of ROPS 84.0 in (standard ROPS); 90.0 in (folding ROPS) 87.4 in Height to Top of ROPS (folded) Not Published Not Published Height to Top of Cab Model Not Published Not Published Overall Length 117 in (with 3-point hitch) 121.0 in ▶ WeightTractor Weight (Base) 2,600 lb (2WD); 2,900 lb (MFWD) Platform: 3,025 lb; Cab: 3,384 lb (shipping weight) Weight with ROPS and Loader Not Published Not Published Weight with Cab and Loader Not Published Not Published ▶ Tire OptionsTire Size & Options Front: 5.00-15 F2 (2WD), 7.00-14 or 7.00-16 R1, 25x8.50-14 R4, 27x8.50-15 R3, 25-10.50LLx15 golf; rear: 11.2-24 or 12.4-24 R1, 11.2-24 or 41x14.00-20 R3, 15.00-19.5 R4, 41LLx18.00-16 golf Ag: 8-16 front, 12.4-24 rear (13.6-24 optional); turf: 27x8.50-15 front, 41x14.00-20 rear (LSW305 R343 / LSW610 R470 optional); industrial: 10-16.5 front, 14.9-24 rear (also 25x8.5-14 front, 15x19.5 rear) R1 Agricultural - Front 5.00-15 (2WD, F2); 7.00-14 or 7.00-16 (MFWD) 8-16 R1 Agricultural - Rear 11.2-24 or 12.4-24 12.4-24 (13.6-24 optional) R3 Turf - Front 27x8.50-15 (2WD); 7.00-14 (MFWD) 27x8.50-15 (LSW305 R343 optional) R3 Turf - Rear 41x14.00-20 or 11.2-24 41x14.00-20 (LSW610 R470 optional) R4 Industrial - Front 25x8.50-14 10-16.5 or 25x8.5-14 R4 Industrial - Rear 15.00-19.5 14.9-24 or 15x19.5 ▶ Loader & AttachmentsQuick Attach Loader System Not Published DL120: pin-type or skid-steer quick attach Loader Model 420; 430 DL120 Loader Lift Height 420: 87.6 in; 430: 101.4 in DL120: 102 in (at pivot pin) Loader Lift Capacity (Full Height) 420: 1,195 lb; 430: 1,258 lb (to max height at pivot point) DL120: 1,900 lb (to full height, at pivot pin) Loader Breakout Force 420: 2,693 lbf; 430: 3,299 lbf (at pivot point) Not Published ▶ WarrantyWarranty Length & Coverage Not Published Basic 2 years or 2,000 hours; powertrain 3 years or 2,000 hours
